Kicker DX1000.1 - Mono Operation

The
OX
amplifier
has
dual input sensitivity
differential
RCA inputs which
will
receive either high or
low level signals
from your car
stereo's source unit. A
high-level signal
can be run from the source unit's speaker outputs to the
stereo RCA input on the end
panel
of the
amplifier
using the
KICKER
ZISL
as shown (make sure you set the
OX
amplifier's
input level
switch to
"HI").
Alternatively,
the
signal
can be
delivered to the
amplifier using the
low-level
RCA outputs on the source unit. Set the input level
switch on the end
panel
of the
amplifier to "LO".
Either input
method will
provide a
low-level
output signal
at the RCA output, which
effectively
passes the audio
signal
to
another
amplifier
or component. Keep the audio
signal cable
away from factory wiring harnesses and other
power wiring.
If
you need to cross this wiring, cross
it
at a
90
degree
angle.

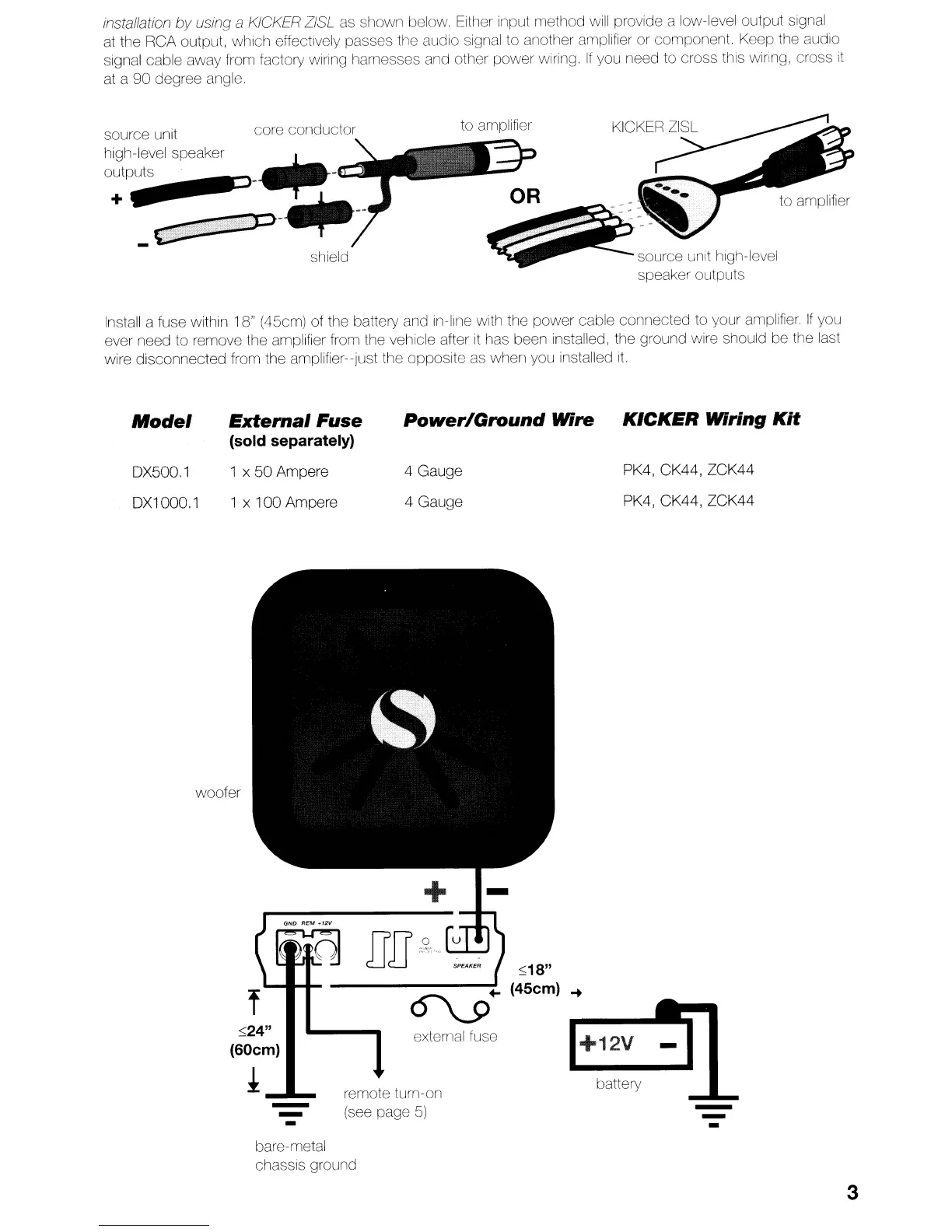

source unit
high-level speaker
core conductor
o
~
tputs
····c:>
··
~
shield
to
amplifier
Install
a fuse within 18"
(45cm) of the battery and in-line
with the power
cable
connected to your
amplifier.
If
you
ever need to remove the
amplifier
from the
vehicle
after
it
has been
installed,
the ground wire
should
be the
last
wire disconnected from the
amplifier--just
the opposite as when you
installed
it.
Model
OX250.
1
OX500.1
OX1000.1
External
Fuse
(sold separately)
1 x
40
Ampere
1 x
80
Ampere
1 x 1
00
Ampere
MONO
OPERATION
minimum impedance of 2 ohms
:<;;
24"
(60cm)
i-
-
-
bare-metal
chassis ground
Power/Ground
Wire
8 Gauge
4 Gauge
4 Gauge
woofer
15A 15A
JJ
.IT
O
external
fuse
DX250
.1
:<;;
18
"
(45cm)
-+
KICKER
Wiring
Kit
PK8, ZCK84
PK4,
CK44,
ZCK44
PK4,
CK44,
ZCK44
-
battery
-
-
-
3
