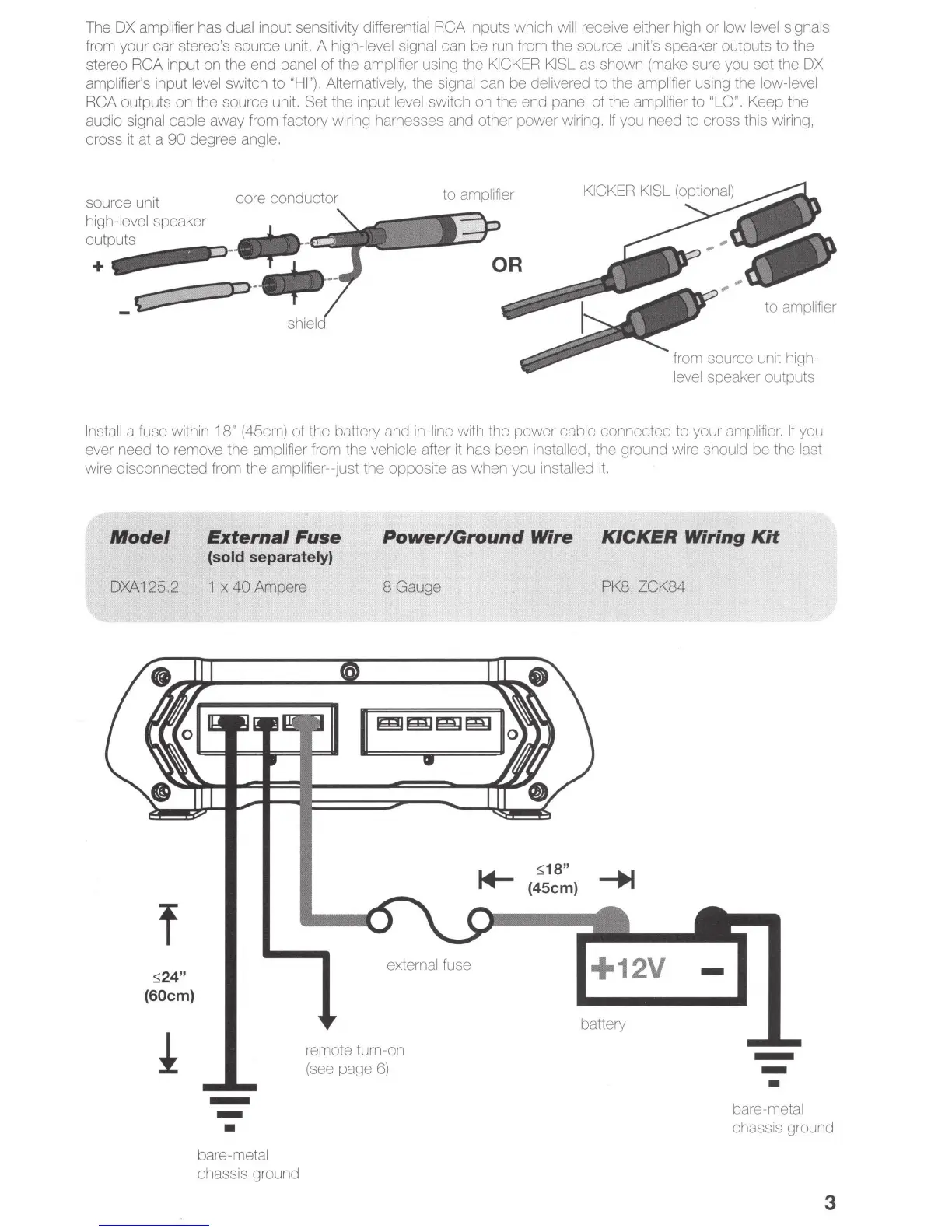

The
DX
amplifier has dual input sensitivity differential RCA inputs which
wi
ll recei
ve
either high or l
ow
level signals
from your car stereo's source
un
i
t.
A high-level signal can be
run
from the source unit's speaker outputs to the
stereo RCA input on the end panel of the amplifier using the
KICKER
KISL as shown (make sure you set the
DX
amplifie
r'
s input level switch to "H
I").
Alternatively, the signal can be delivered to the amplifier using the low-level
RCA outputs on the source unit. Set the input level switch on the end panel of the amplifier to "LO". Keep the
audio signal cable away frorn factory wiring harnesses and other power wiring. If you need to cross this wiring,
cross it
at
a 90 degree angle.
source unit
high-level speaker
outputs
+
core conductor
to amplifier
OR
to amplifier
from source unit high-
level speaker outputs
Install a fuse within 18" (45cm) of the battery and in-line with the power cable connected to your amplifier.
If
you
ever need to remove the amplifier frorn the vehicle after
it
has been installed, the ground wire should be the last
wire disconnected frorn the amplifier--just the opposite as when you installed
it.
ftfodel
Externa/Fuse
Power/Ground
Wire KICKER Wiring
Kit
(sold separately)
DXA 125.2 1 x
40
Ampere
8 Gauge PK8, Z
CK
84
f
:s;
24"
(60cm)
external fuse
remote turn-on
(see page
6)
:s;
18
"
(45cm)
+12V
battery
-
-
-
•
-
-
•
bare-metal
chassis ground
bare-metal
chassis ground
3
