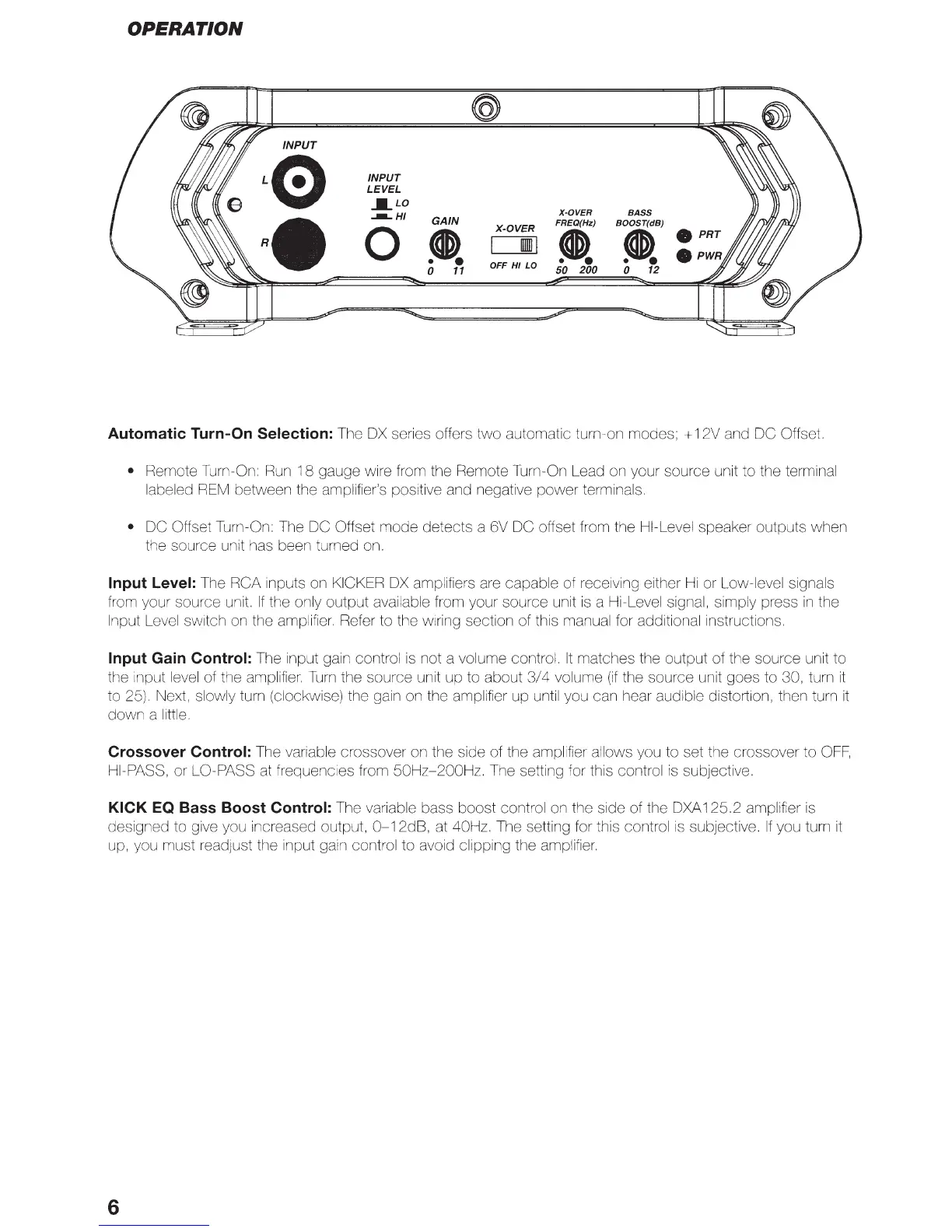

OPERATION
INPUT
LEVEL
.I.LO
X-OVER
BASS
--..HI
GAIN
FREQ(Hz)
BOOST( dB)
0
..
X-OVER
.. ..
CJii[]
0
11
OFF
HI
LO
50
200
0
12
Automatic Turn-On Selection: The
OX
series offers two automatic turn-on modes; + 12V and DC Offset.
• Remote Turn-On:
Run
18 gauge wire from the Remote Turn-On Lead on your source unit to the terminal
labeled
REM
between the amplifier's positive and negative power terminals.
• DC Offset Turn-On: The DC Offset mode detects a 6V DC offset from the HI-Level speaker outputs when
the source unit has been turned on.
Input Level: The RCA inputs on
KICKER
OX
amplifiers are capable of receiving either
Hi
or Low-level signals
from your source unit.
If
the only output available from your source unit
is
a Hi-Level signal, simply press
in
the
Input Level switch on the amplifier. Refer to the
w1ring
section of this manual for additional instructions.
Input Gain Control: The input gain control
is
not a volume control.
It
matches the output of the source unit to
the input
level
of the amplifier.
Turn
the source unit up to about
3/4
volume
(if
the source unit goes to 30, turn
it
to 25). Next, slowly turn (clockwise) the gain on the amplifier up until you can hear audible distortion, then turn
it
down a little.
Crossover Control: The variable crossover on the side of the amplifier allows you to set the crossover to
OFF,
HI-PASS, or LO-PASS
at
frequencies from 50Hz-200Hz. The setting for this control
is
subjective.
KICK EQ Bass Boost Control: The variable bass boost control on the side of the
OXA
125.2 amplifier
is
designed to give you increased output,
0-12dB,
at
40Hz. The setting for this control
is
subjective.
If
you turn
it
up, you must readjust the input gain control to avoid clipping the amplifier.
6
