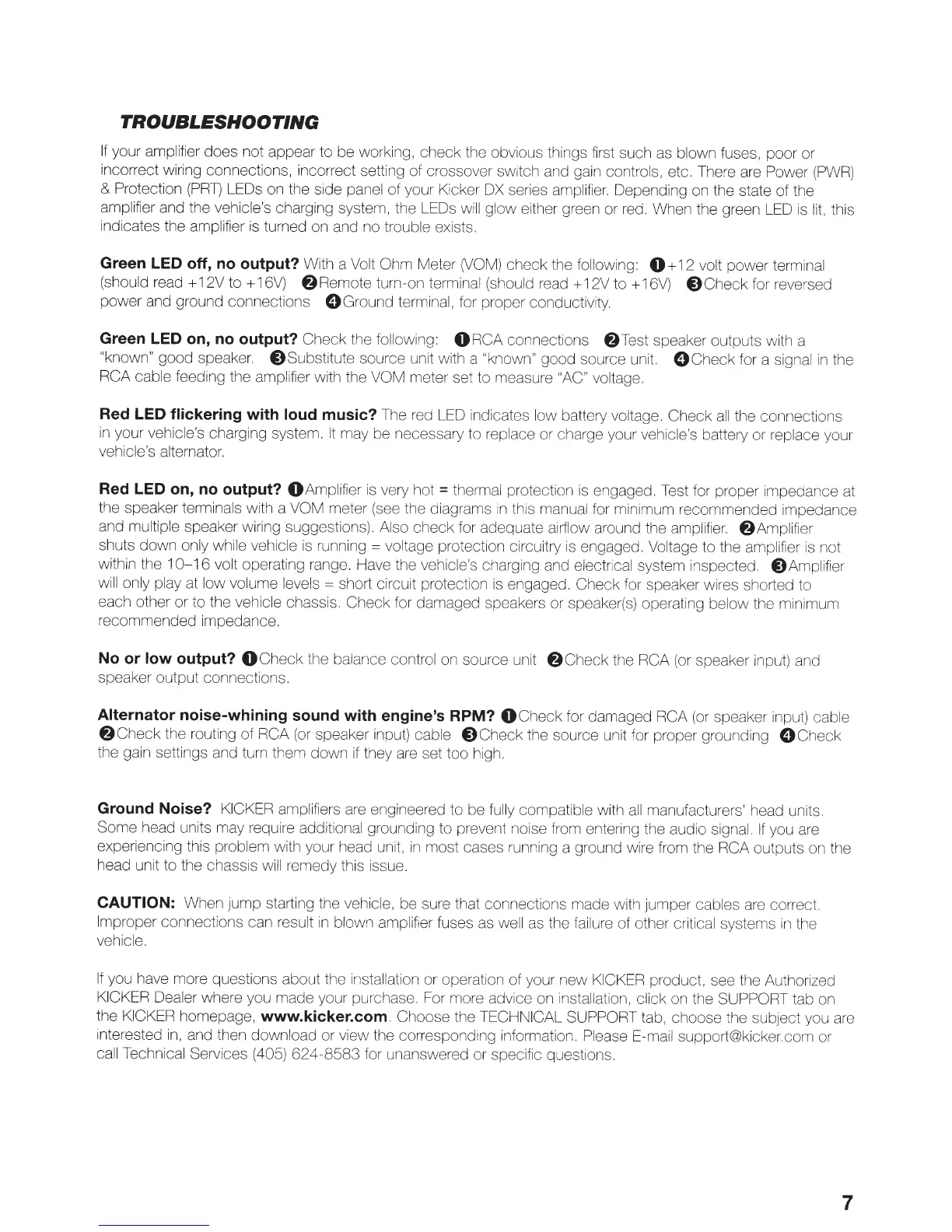

TROUBLESHOOTING
If
your amplifier does not appear to be working, check the obvious things first such
as
blown fuses, poor or
incorrect wiring connections, incorrect setting of crossover switch and ga
in
controls, etc. There
are
Power
(PWR)
&
Protection
(PRT)
LEOs
on the side panel of your Kicker
OX
series amplifier. Depending on the state of the
amplifier and the
vehicle's charging system, the
LEOs
wi
ll
glow either green or red. When the green
LED
is
lit,
this
indicates the amplifier
is
turned on and no trouble exists.
Green LED off, no output?
With a
Vo
lt
Ohm
Meter
(VOM)
check the following:
0+
12 vo
lt
power terminal
(s
hould read + 12V
to+
16
V)
@Remote
turn-on terminal (shou
ld
read+
12V t
o+
16V)
@)Check
for reversed
power and ground connections
0Ground
terminal, for proper conductivit
y.
Green LED on, no output?
Check the following:
ORCA
connections
@Test
speaker outputs w
ith
a
"known"
good speaker.
@)Substitute source unit w
ith
a
"known" good source unit.
0Ch
eck
for a signal
in
the
RCA cable feeding the amplifier with the VOM
meter set to measure
"AC"
voltage.
Red LED flickering
with
loud
music?
Th
e red
LED
indicates l
ow
battery voltage. Check
all
the connections
in
your vehicle's charging system.
It
may be necessary to replace or charge your vehic
le
's
battery or replace your
vehicle's alternator.
Red LED on, no output?
0Amplifi
er
is
very
hot=
thermal protection
is
engaged. Test for proper impedance at
the speaker terminals with a VOM
meter (see the diagrams in this manual for minimum recommended impedance
and multiple speaker wiring suggestions). Also check for adequate airflow around the amplifier.
@Amplifier
shuts down only while vehicle
is
running
=volta
ge protection circuitry
is
engaged. Voltage to the amplifier
is
not
within the
10
-1
6
volt operating range. Have the vehicle's charging and electrical system inspected.
@)Am
plifier
will
only play at l
ow
volume
le
vels = short circuit protection is engaged. Check for speaker w
ire
s sho
rt
ed to
each other or to the vehicle chassis. Check for damaged speake
rs
or speaker(s) operating below the minimum
recommended impedance.
No or low
output?
0Che
ck
the balance control on source unit
@Ch
eck
the RCA
(or
speaker input) and
speaker output connections.
Alternator
noise-whining sound with engine's RPM?
0Che
ck
for damaged RCA
(or
speaker input) cab
le
@Check
the routing of
RC
A
(or
speaker
in
put) cab
le
@)Che
ck
the source unit for proper grounding
0Che
ck
the gain settings and turn them down
if
they
are
set too high.
Ground Noise?
KICKER
amplifiers are engineered to be
fully
compatible w
it
h
all
manufacturers' head units.
Some
head units may require additional grounding to prevent noise from entering the audio signal.
If
you are
experiencing this problem with your head unit,
in
most cases running a ground wire from the RCA outputs on the
head unit to the chassis
will
remedy this issue.
CAUTION:
When jump starting the vehicle, be sure that connections made
wi
th jumper cables
are
correct.
Improper connections can result
in
blown amplifier fuses as
well
as
the failure of other critical systems
in
the
vehicle.
If
you have more questions about the installation
or operation of your new
KICKER
product, see the Authorized
KICKER
Dealer where you made your purchase. For more advice on installation, c
li
ck
on
the
SUPPORT
tab
on
the
KICKER
homepage,
www.kicker.com.
Choose the
TECHNICAL SUPPORT
tab, choose the subject you
are
interested
in,
and then download or view the corresponding information.
