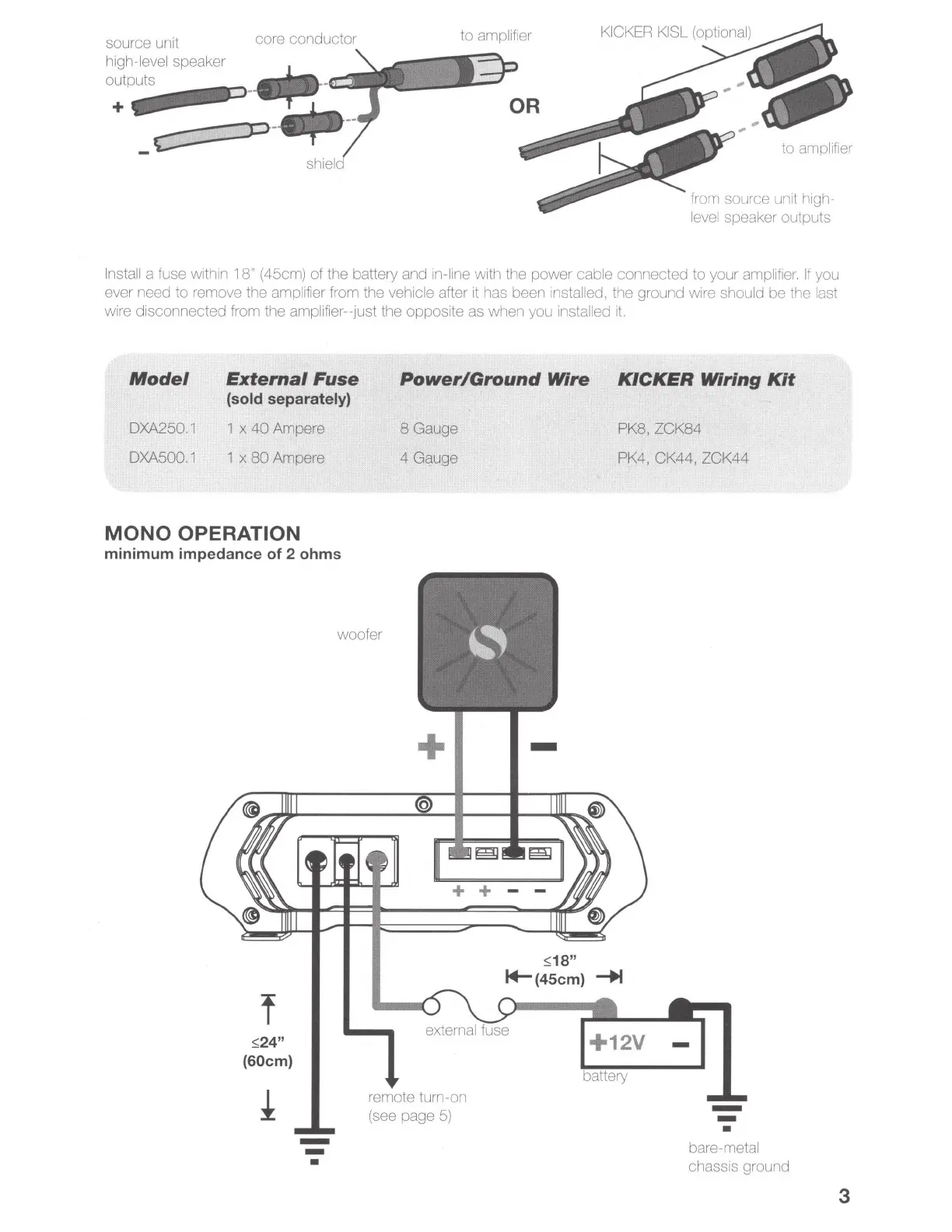

Kicker DXA250.1 - Mono Operation Details

source unit
high-level speaker
core conductor
outputs
+ ..... -=) -1
to amplifier
OR
to amplifier
from source unit high-
level speaker outputs
Install a fuse within 18" (45cm) of the battery and in-line with the power cable connected to your amplifier.
If you
ever need to remove the amplifier from the vehicle after
it has been installed, the ground wire should be the last
wire disconnected from the amplifier--just the opposite as when you installed
it.
Model
DXA250.1
DXA500.1
External Fuse
(sold separately)
1 x 40 Ampere
1 x
80 Ampere
MONO OPERATION
minimum impedance of 2 ohms
Power/Ground Wire KICKER Wiring Kit
8 Gauge PK8, ZCK84
4 Gauge PK4, CK44, ZCK44
woofer
::::24"
{60cm)
-
-
•
+
-
+ + -
::::18"
1+-{45cm) -+1
remote turn-on
(see page
5)
-
-
•
bare-metal
chassis ground
3
