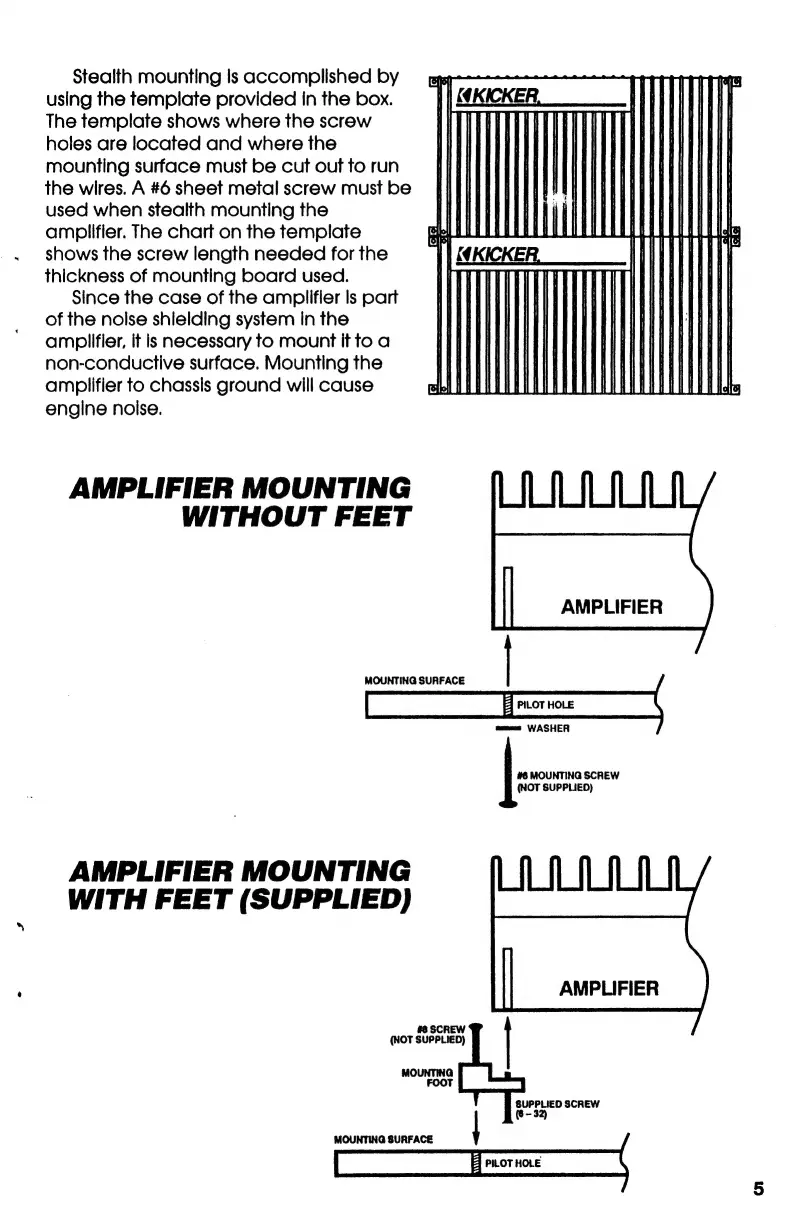

Kicker X50s Competition - Page 5

Stealth mounting ls accomplished by
using the template provided in the box.
The template shows where the screw
holes are located and where the
mounting surface must be cut out fo run
the wires. A #6 sheet metal screw must be
used when stealth mounting the
amplifier. The chart on the template
shows the screw length needed for the
thickness of mounting board used.
Since the case of the amplifier is part
of the nolse shielding system In the
amplifier, it is necessary to mount it to a
non-conductive surface. Mounting the
amplifier to chassis ground will cause
engine nolse.
AMPLIFIER MOUNTING
WITHOUT FEET
| AMPLIFIER
MOUNTING SURFACE |
amma WASHER
#6 MOUNTING SCREW
(NOT SUPPLIED)
AMPLIFIER MOUNTING
WITH FEET (SUPPLIED)
ciy
({KICKER, |
MERTERT !
a Tii Ep ;
ISEGUN :
' EERS 1
iia:
E Ji g
ESSES EaEnE
1
Tee i i
Saag
‘ ‘a. ]
7
s ‘a aim:
Engg 1
EEE:
a
ga
tang i
ERSE.
#8 SCREW
(NOT SUPPLIED)
MOUNTING
FOOT
SUPPLIED SCREW
(6 - 32)
MOUNTING SURFACE |
