Kicker X50s Competition - Optional Modules

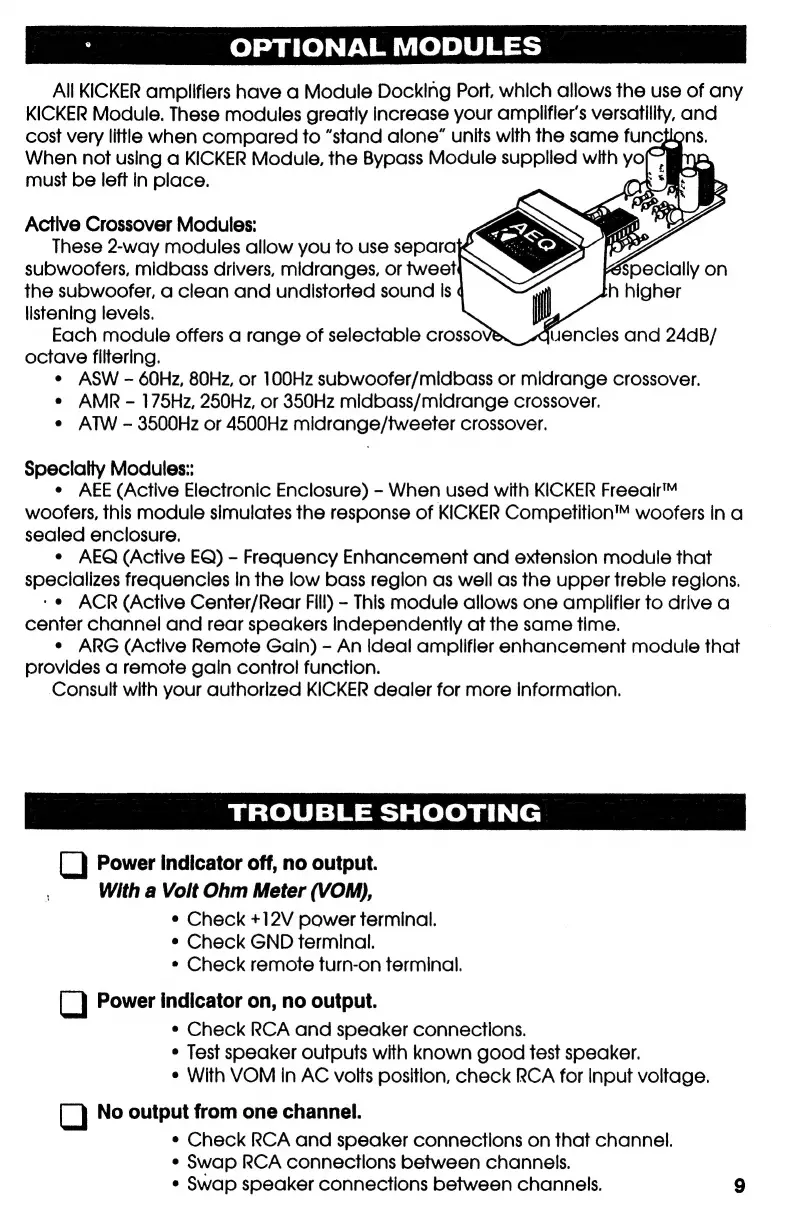

; OPTIONAL MODULES
All KICKER amplifiers have a Module Docking Port, which allows the use of any
KICKER Module. These modules greatly increase your amplifiers versatility, and
cost very litle when compared to “stand alone” units with the same func
When not using a KICKER Module, the Bypass Module supplied with yo
must be left In place.
Active Crossover Modules:
These 2-way modules allow you to use separa
subwoofers, midbass drivers, midranges, or tweet
the subwoofer, a clean and undistorted sound Is 4
listening levels.
Each module offers a range of selectable crossove
octave filtering.
e ASW - 60Hz, 80Hz, or 100Hz subwoofer/midbass or midrange crossover.
e AMR - 175Hz, 250Hz, or 350Hz midbass/midrange crossover.
e ATW - 3500Hz or 4500Hz midrange/tweeter crossover.
Specially on
il h higher
Kiencles and 24dB/
Specialty Modules::
e AEE (Active Electronic Enclosure) - When used with KICKER Freealr™
woofers, this module simulates the response of KICKER Competition™ woofers in a
sealed enclosure.
e AEQ (Active EQ) - Frequency Enhancement and extension module that
specializes frequencies In the low bass region as well as the upper treble regions.
-e ACR (Active Center/Rear Fill) - This module allows one amplifier to drive a
center channel and rear speakers Independently at the same time.
e ARG (Active Remote Gain) - An Ideal amplifier enhancement module that
provides a remote gain control function.
Consult with your authorized KICKER dealer for more Information.
TROUBLE SHOOTING
[_} Power indicator off, no output.
With a Volt Ohm Meter (VOM),
e Check +12V power terminal.
e Check GND terminal.
+ Check remote turn-on terminal.
Q Power indicator on, no output.
e Check RCA and speaker connections.
e Test speaker outputs with known good test speaker.
e With VOM in AC volts position, check RCA for Input voltage.
E No output from one channel.
e Check RCA and speaker connections on that channel.
e Swap RCA connections between channels.
e Swap speaker connections between channels. 9
