Kidde Gemini II System
APPENDIX D
CENTRAL STATION OPERATION
D-1 CENTRAL STATION OPERATION
For Central Station operation, the Kidde Gemini II Main
Control Panel (MCP) must be configured for Central Sta-
tion use through the Configuration Set menu. A Silent Knight
DACT Model 5104 must be wired to the MCP, as shown in
Figure D-1. Refer to the Model 5104 Installation Manual for
information regarding connection of the DACT to telephone
lines for Alarm and Trouble transmission(s).
Note: Central Station is not suitable for use with Cana-
dian applications.

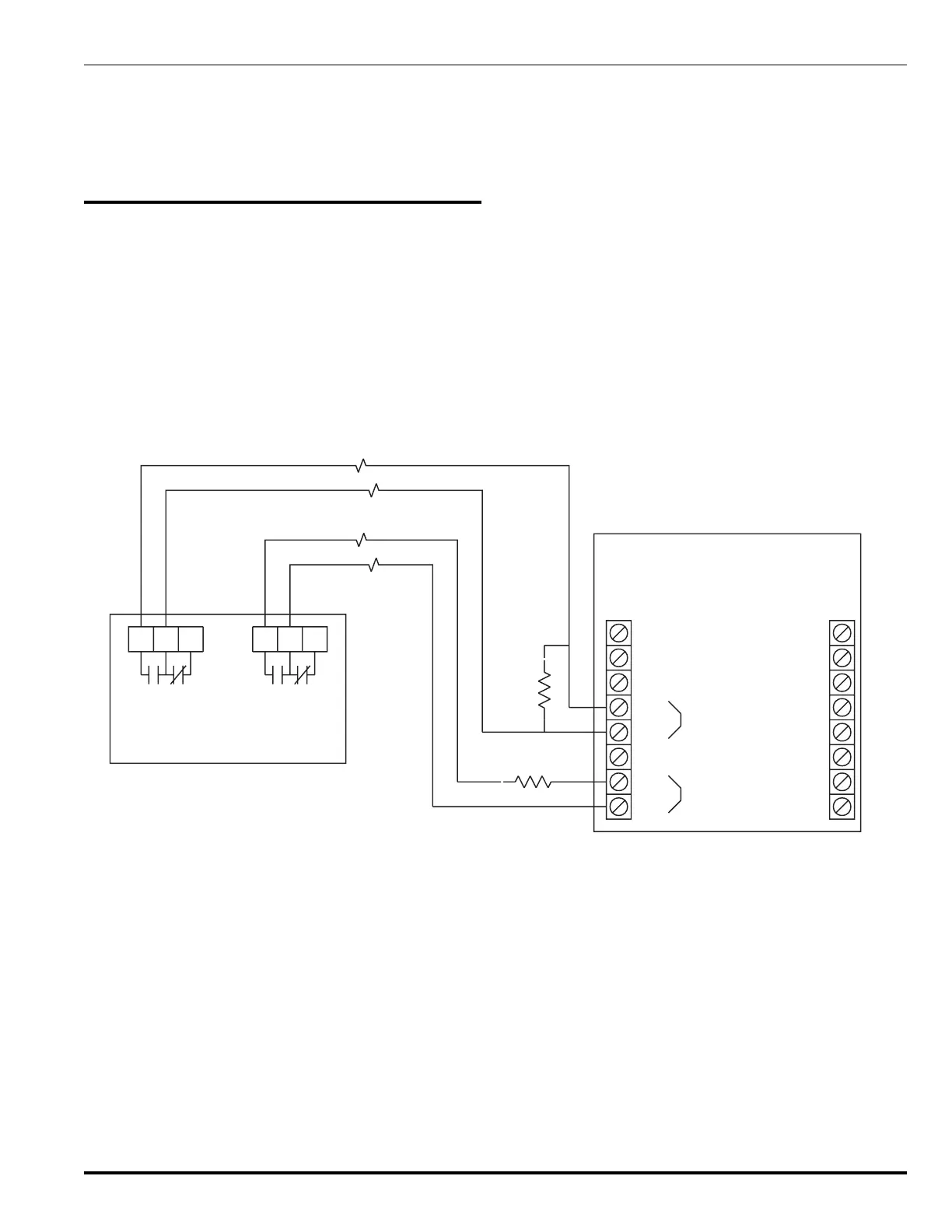

Figure D-1. Wiring for DACT
12
11
10
9
8
18
17
16
15
14
13
ZONE 4
TROUBLE
ALARM
ZONE 3
SILENT KNIGHT DACT
MODEL 5104 PCB
TROUBLE RELAYALARM RELAY
CONTACTSCONTACTS
MAIN CONTROL PANEL PCB
NCCNO NO C NC
4.7K
TB4
4.7K
