Kidde VM-1 User Manual

Appendix A: System addressing
50 VM-1 User Guide
Remote annunciator device addresses
Table 13 on page 53 lists the device addresses for LEDs and switches on
RLED-C and K-RLED-C remote annunciators, RLED24 and K-RLED24
expanders, GCI and GCI-NB graphic annunciator cards, and GCIX expander
cards. See also Figure 16, Figure 17, and Figure 18.

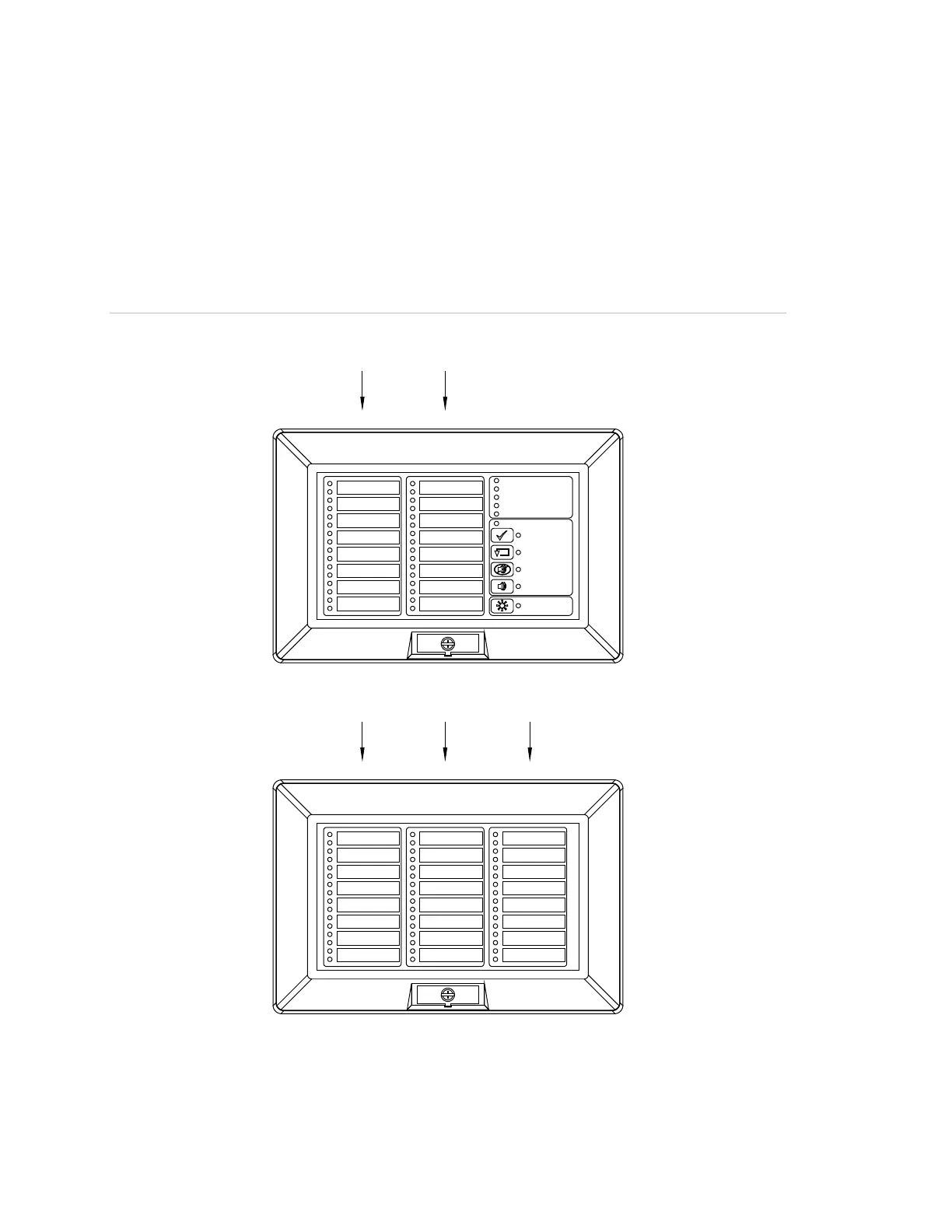

Figure 16: RLED-C / K-RLED-C and RLED24 / K-RLED24 LED numbering
Controls Enabled
Ack/Silence
Reset
Signal Silence
Drill
Lamp Test
Power
Fire Alarm
Supervisory
Ground Fault
Trouble
LED01
LED16
LED17
LED32
LED01
LED16
LED17
LED32
LED33
LED48
RLED-C /
K-RLED-C
RLED24 /
K-RLED24
