Kidde VM Series User Manual

VM Series
Head End
4
SUBMIT

VM
Head End
SERIES

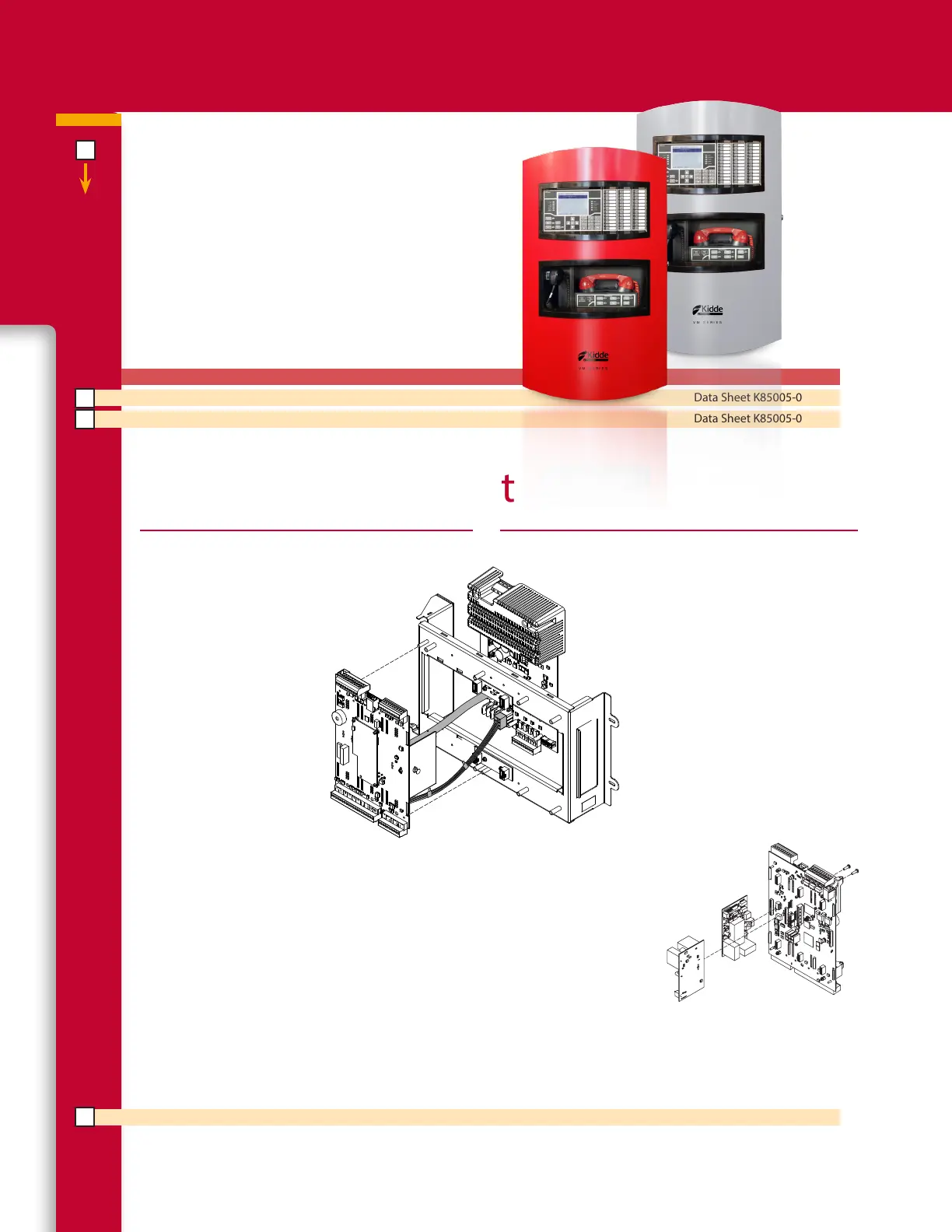

Model Door Color Language
VM-1R Red English Data Sheet K85005-0133
VM-1S Silver English Data Sheet K85005-0133
Control Panels
VM Series control panels come complete with user
interface, CPU, one addressable loop, four Class B
NACs, Universal 110/220v 10 Amp power supply.
Order VM-SLC separately for a second signaling line
circuit (SLC). Order VM-SLCXB for a third SLC, add
a VM-SLC to the VM-SLCXB for a fourth SLC.
Standard Equipment
VM-SLC Signaling Line Circuit Card and VM-SLCXB Signaling Line Loop Expansion Card
The VM-SLC Signaling Line Circuit Card provides one Class B, Class A or Class X signaling line circuit loop on a VM-CPU main
board that supports up to 125 detector and 125 module addresses. The card also provides resettable 24 VDC for powering
conventional two-wire smoke detector circuits on GSA-Series modules.
VM-SLCXB Signaling Line Loop Controller Expansion Card Data Sheet K85005-0133
PS10-4B Power Supply Card
Panel-equipped PS10-4B 10 amp power supplies
feature universal 94 to 264 Vac input voltage and
exclusive Voltage Boost™ technology, which
delivers a constant 22.5 V on NAC and AUX
circuits – even at low battery power. This means
lighter gauge cable can be used for equivalent
distances compared with conventional
power supplies, or longer wire runs on
the same gauge cable. In addition it
provides the required power and related
supervision functions for the control
panel, as well as ltered, regulated power
to the rail chassis modules and 24 VDC
for operating ancillary equipment.
VM-CPU
PS10-4B
Chassis
VM-CPU Main Board
The VM-CPU Main Board processes all information
from modules installed in the same cabinet and
from other control panels on the life safety
network. In addition, the VM-CPU Main
Board provides:
• Identication of hardware
and software faults, and
ground fault detection
• Common alarm, common
trouble, and common
supervisory relay outputs
• One signaling line circuit
(SLC), with the option of
adding a VM-SLC card to
provide a second SLC
• An Ethernet connection for panel
programming and diagnostics (requires an optional
VM-ETH1 card)
• Connections for network data and digital audio riser
(requires an optional VM-NOC or VM-NOCF card)
• Connections for R-Series remote annunciators
VM-CPU
Main Board
Standard
SDC1 card
for SLC1
Optional
SDC1 card
for SLC2

Kidde VM Series Specifications

General

Brand	Kidde
Model	VM Series
Category	Control Panel
Language	English
