Door Holders & Relays
SERIES

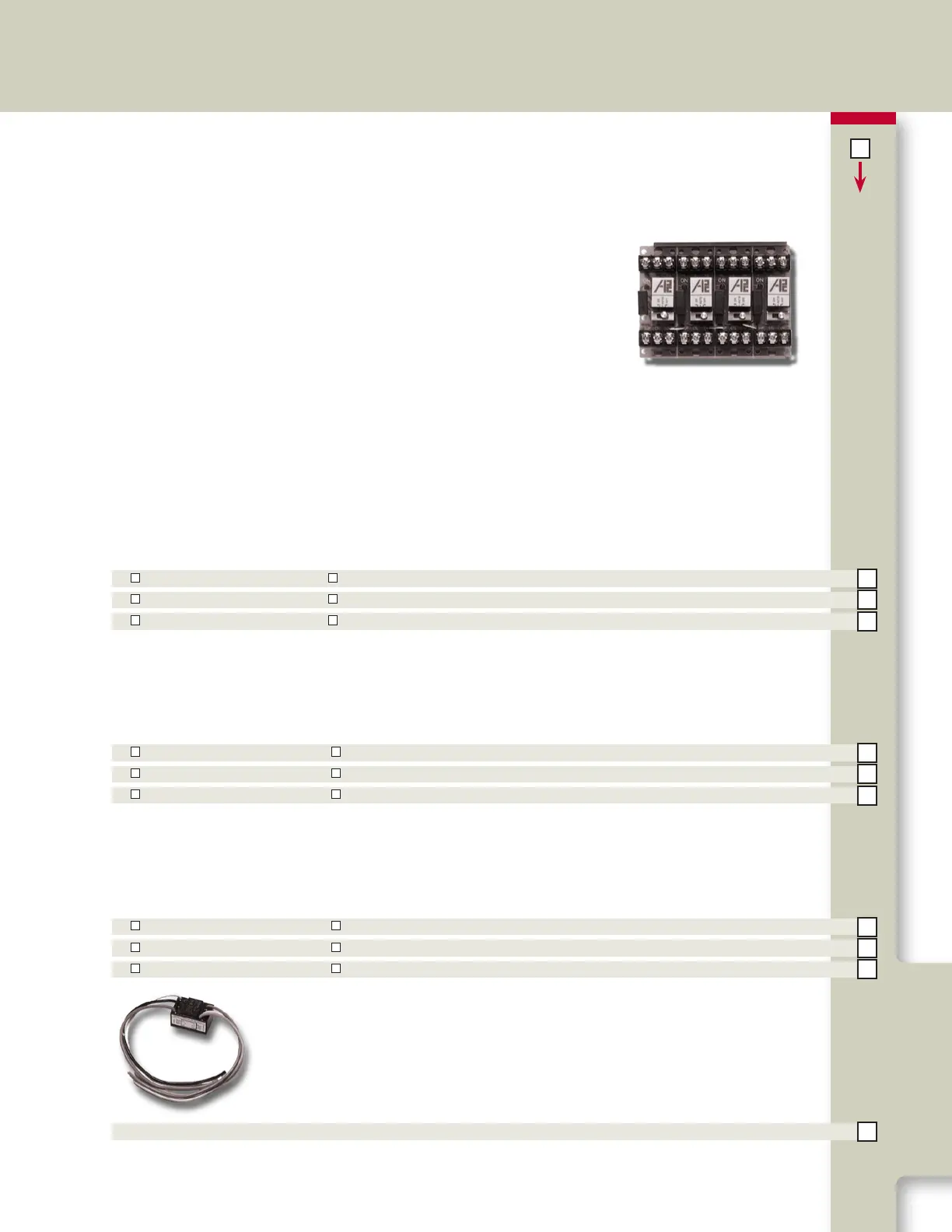

SPDT Relays
Single-pull/double-throw relays are ideal for applications where local or remote con-
tacts are required for control of electrical loads. They are suitable for use with HVAC,
temperature control, fire alarm, security, energy management, and lighting control
systems. Each relay position contains a high-intensity LED which, when illuminated,
indicates the relay coil is energized. Individual relay circuits may be snapped apart
from standard four- or eight-position modules, and are also available in a single-circuit
configuration. The common power to each relay position is bussed on the printed
wiring board, which permits power to be connected only once per multi-position
module.
Single-Voltage Manual Override Relays
MR-600 series relays provide SPDT, 10-Amp contacts with manual override capability by means of an ON-AUTO-OFF
switch. The relay requires a 24Vac or 24Vdc power source supplied by the controlling system. With the switch in the ON
position the power relay is energized. With the switch in the AUTO position the relay is allowed to operate as signaled
by the controlling system. With the switch in the OFF position the relay cannot be energized.
MR-601/T (with mounting track) MR-601/S (with mounting spacers) Single SPDT relay Data Sheet E85300-02761
MR-604/T (with mounting track) MR-604/S (with mounting spacers) 4-position SPDT relay Data Sheet E85300-02761
MR-608/T (with mounting track) MR-608/S (with mounting spacers) 8-position SPDT relay Data Sheet E85300-02761
Three-Voltage Control Relays
MR-800 Series relays provide SPDT 10-Amp contacts that may be operated by one of three input control voltages:
24Vdc, 24Vac or 115Vac.
MR-801/T (with mounting track) MR-801/S (with mounting spacers) Single SPDT relay Data Sheet E85300-02763
MR-804/T (with mounting track) MR-804/S (with mounting spacers) 4-position SPDT relay Data Sheet E85300-02763
MR-808/T (with mounting track) MR-808/S (with mounting spacers) 8-position SPDT relay Data Sheet E85300-02763
Four-Voltage Control Relays
MR-700 Series relays provide SPDT 10-Amp contacts that may be operated by one of four input control voltages:
12Vdc, 12Vac, 24Vdc, or 24Vac.
MR-701/T (with mounting track) MR-701/S (with mounting spacers) Single SPDT relay Data Sheet E85300-02764
MR-704/T (with mounting track) MR-704/S (with mounting spacers) 4-position SPDT relay Data Sheet E85300-02764
MR-708/T (with mounting track) MR-708/S (with mounting spacers) 8-position SPDT relay Data Sheet E85300-02764
Three-Voltage Encapsulated Control Relays
PAM-1 relays provide 10-Amp Form C contacts. The relay may be energized by one of three
input voltages: 24Vac, 24Vdc, or 115Vac. The PAM-1 may be mounted with double-sided
adhesive tape, a self-tapping screw, or loosely placed in a backbox.
PAM-1 Encapsulated SPDT relay Data Sheet E85300-02766
