VM Series
Head End
Initiating
Devices
Notification
Appliances
SUBMIT

Intelligent initiating devices
VM
Notification Appliances
SERIES

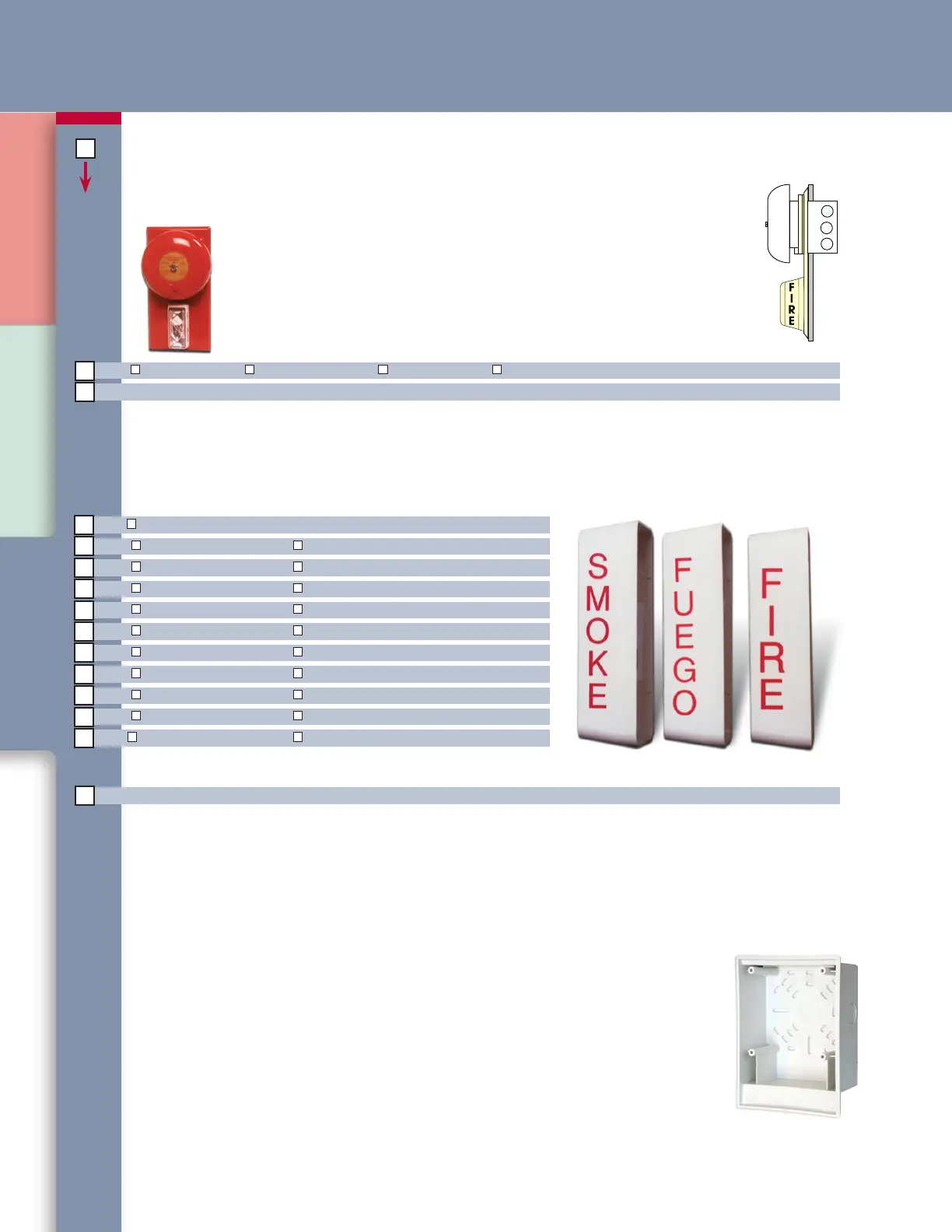

Integrity Lens Marking Kits
Integrity strobes are shipped with wall mount style “FIRE” lens markings. Where ceiling mount, other languages or dif-
ferent lens markings are required, optional LKW and LKC series Lens Marking Kits are available. Lens marking sleeves
snap right over the strobe lens providing a quick, easy, change.
LKW-1R (Wall orientation) “FIRE” (Red)
LKW-1 (Wall orientation) LKC-1 (Ceiling orientation) “FIRE”
LKW-2 (Wall orientation) LKC-2 (Ceiling orientation) “FEU”
LKW-3 (Wall orientation) LKC-3 (Ceiling orientation) “FIRE/FEU”
LKW-4 (Wall orientation) LKC-4 (Ceiling orientation) “SMOKE”
LKW-5 (Wall orientation) LKC-5 (Ceiling orientation) “HALON”
LKW-6 (Wall orientation) LKC-6 (Ceiling orientation) “CO2”
LKW-7 (Wall orientation) LKC-7 (Ceiling orientation) “EMERGENCY”
LKW-8 (Wall orientation) LKC-8 (Ceiling orientation) “ALARM”
LKW-9 (Wall orientation) LKC-9 (Ceiling orientation) “FUEGO”
LKW-10 (Wall orientation) LKC-10 (Ceiling orientation) “ALERT”
Integrity Signals
 INT-SB Surface Box, Red, Indoor
 INT-SBW Surface Box, White, Indoor
 INT-WB Weatherproof Box, Red, Surface
 INT-WBW Weatherproof Box, White, Surface
 INT-RR Four-inch Retrofit Ring, Red
 960A-4SF Flush Box, Indoor
Mounting Accessories
Genesis
®
Signals
 27193-11 Horn-strobe Surface Box, Red, Indoor
 27193-16 Horn-strobe Surface Box, White, Indoor
 MG4RB Speaker Surface Box, Red, Indoor
 MG4B Speaker Surface Box, White, Indoor
 MG4ERB MG4 Dual-strobe Format Surface box, Red
 MG4EWB MG4 Dual-strobe Format Surface box, White
Horn/siren Combination
 349 Weatherproof Backbox
Fire Alarm Bells and CS-405 Series
 74347U Weatherproof Box, Red
 449 Weatherproof Backbox, Gray
Bell/Strobe Plate
The bell/strobe plate is ideal for renovation and retrofit projects, and new construction.
It is equipped with an Kidde self-synchronizing strobe and is designed to allow on-site
mounting of the 439 series Vibrating Bell, providing instant conversion to Bell/Strobe
audible/visual signal appliances. The strobe is designed for 20 to 24Vdc operation and
must be connected to signal circuits which output a constant (not pulsed) voltage. A
diode is used to allow full signal circuit supervision.
403-5A-R (15 cd) 403-7A-R (15/75 cd) 403-3A-R (30 cd) 403-8A-R (110 cd) Data Sheet K85001-0441
403-SB for surface box Data Sheet K85001-0441
Accessories
Genesis MG4B Speaker
Surface Box
