KiloVault HLX+ User Manual

Maximum Charge Rate - 1200
80 A, C/1.25
Maximum Charge Rate - 2400
150 A, C/1.3
Maximum Charge Rate - 3600
200 A, C/1.5
Recharge Volts (≈80% DoD)
Just above your inverter/charger
recharge/rebulk volts so it starts charging from
the sun before the inverter starts charging from
the grid or generator.

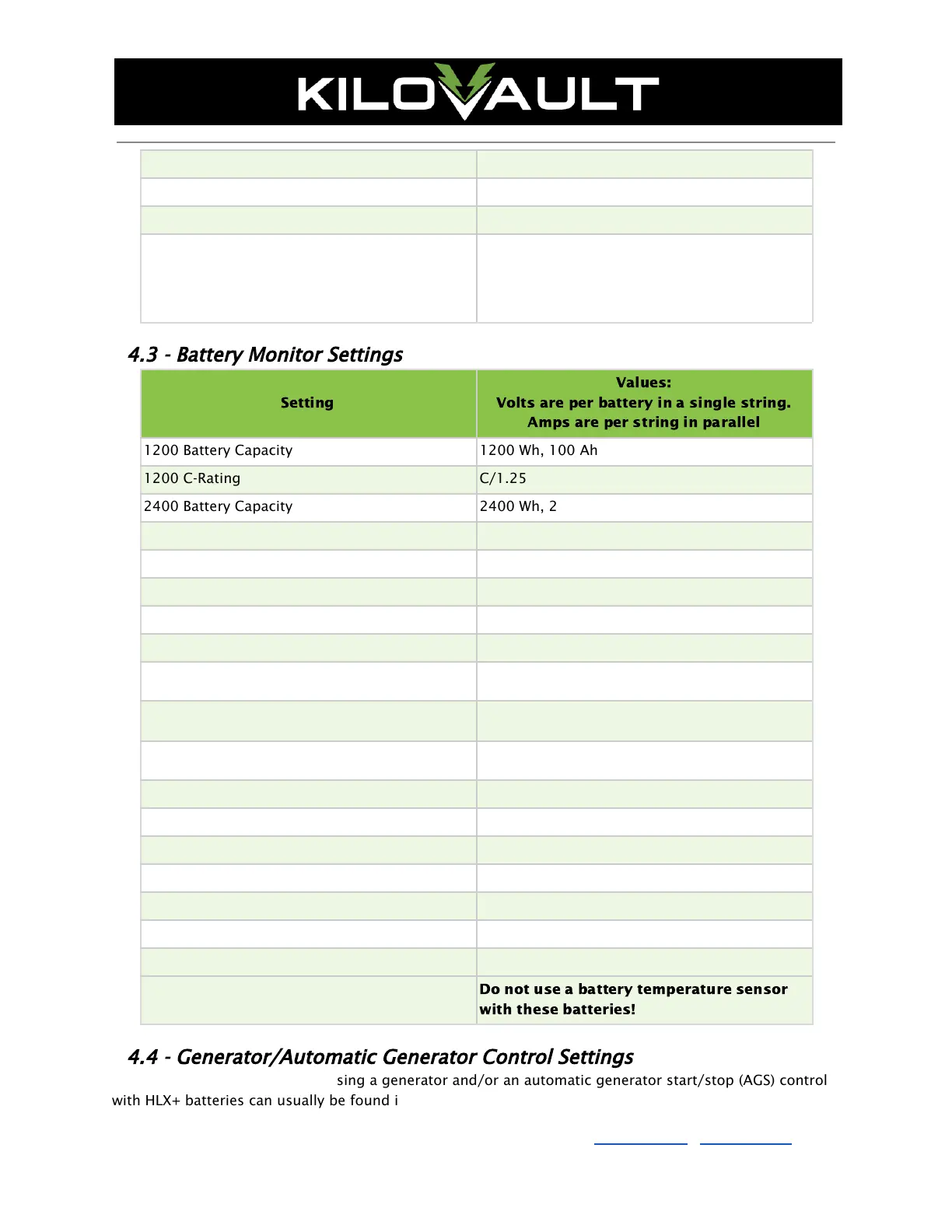

4.3 - Battery Monitor Settings
Setting
Values:
Volts are per battery in a single string.
Amps are per string in parallel
1200 Battery Capacity
1200 Wh, 100 Ah
1200 C-Rating
C/1.25
2400 Battery Capacity
2400 Wh, 200 Ah
2400 C-Rating
C/1.3
3600 Battery Capacity
3600 Wh, 300 Ah
3600 C-Rating
C/1.5
Battery Efficiency
94.50%
Charge Ending Amps
2 A
Charger Float Current - 1800 - 1% of capacity
1 A
Charger Float Current - 2400 - 1% of capacity
2 A
Charger Float Current - 3600 - 1% of capacity
3 A
Charger Float Voltage
≈13.4 V
Fully Charged Voltage
14 V
Nominal Temperature
77°F (25°C)
Peukert's Exponent
1.05
Recharge / Re-Bulk Volts (≈80% DoD)
12.25 V
Self Discharge Rate
≤2% per month
Temperature Coefficient
0 mV / °C
Battery Temperature Sensor
Do not use a battery temperature sensor
with these batteries!
4.4 - Generator/Automatic Generator Control Settings
The battery related settings for using a generator and/or an automatic generator start/stop (AGS) control
with HLX+ batteries can usually be found in the inverter/charger and solar charge controller settings.
KiloVault
®
LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com • www.kilovault.com
Revision 1.0, 06/2021
Page 13 of 29
