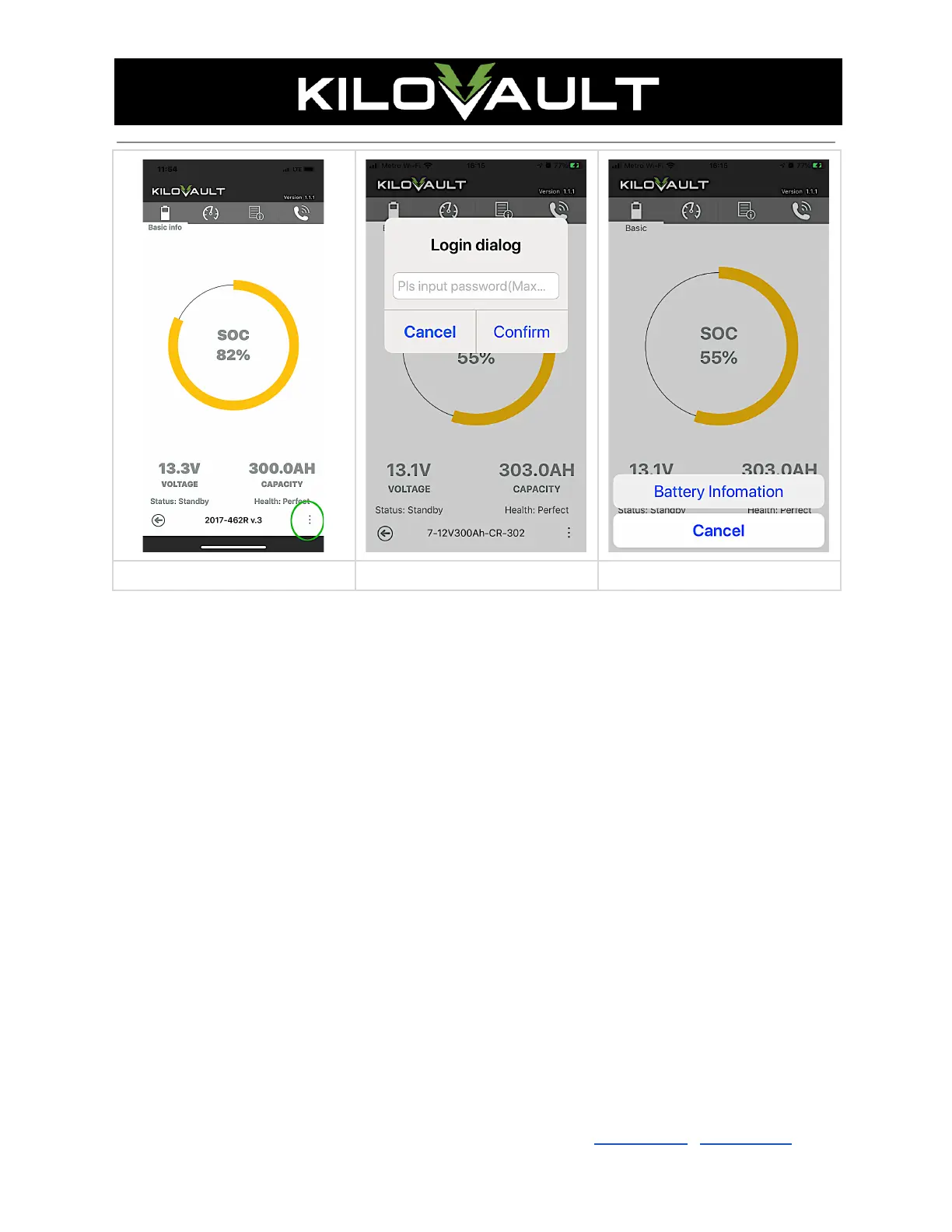

Location of the "⋮" Symbol
Battery Information Button
To get information on individual cells, first tap the "⋮" symbol in the lower right corner of the Basic
Information screen. A login dialog will appear. Type “1234” into the login dialog and tap “confirm”. A
button called “Battery Information” will appear. Tap that button. A semi-transparent screen will appear with
8 button-like icons. They indicate if the battery has any active alarms. The indicators are normally green.
They will be red if there is an alarm. They are High Voltage (HV), Low Voltage (LV), Overcurrent Charging
(OCC), Overcurrent Discharging (OCD), Low Temperature Discharging (LTD), Low Temperature Charging
(LTC), High Temperature Discharging (HTD), High Temperature Charging (HTC).
Below the alarm indicators are 4 battery shaped icons. They represent the 4 cells that make up the battery.
Their color does not indicate anything. They are always the same color. Below each battery icon is a
number showing each cell’s voltage in mV (millivolts). The color of the numbers do not mean anything.
They're always the same color. The difference between the highest and lowest should be 300mV or less.
Tap anywhere to dismiss this screen.
KiloVault
®
LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com • www.kilovault.com
Revision 1.0, 06/2021
Page 16 of 29
