Kiloview E1 Series User Manual

Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved
HD Video Encoders · User Manual
13

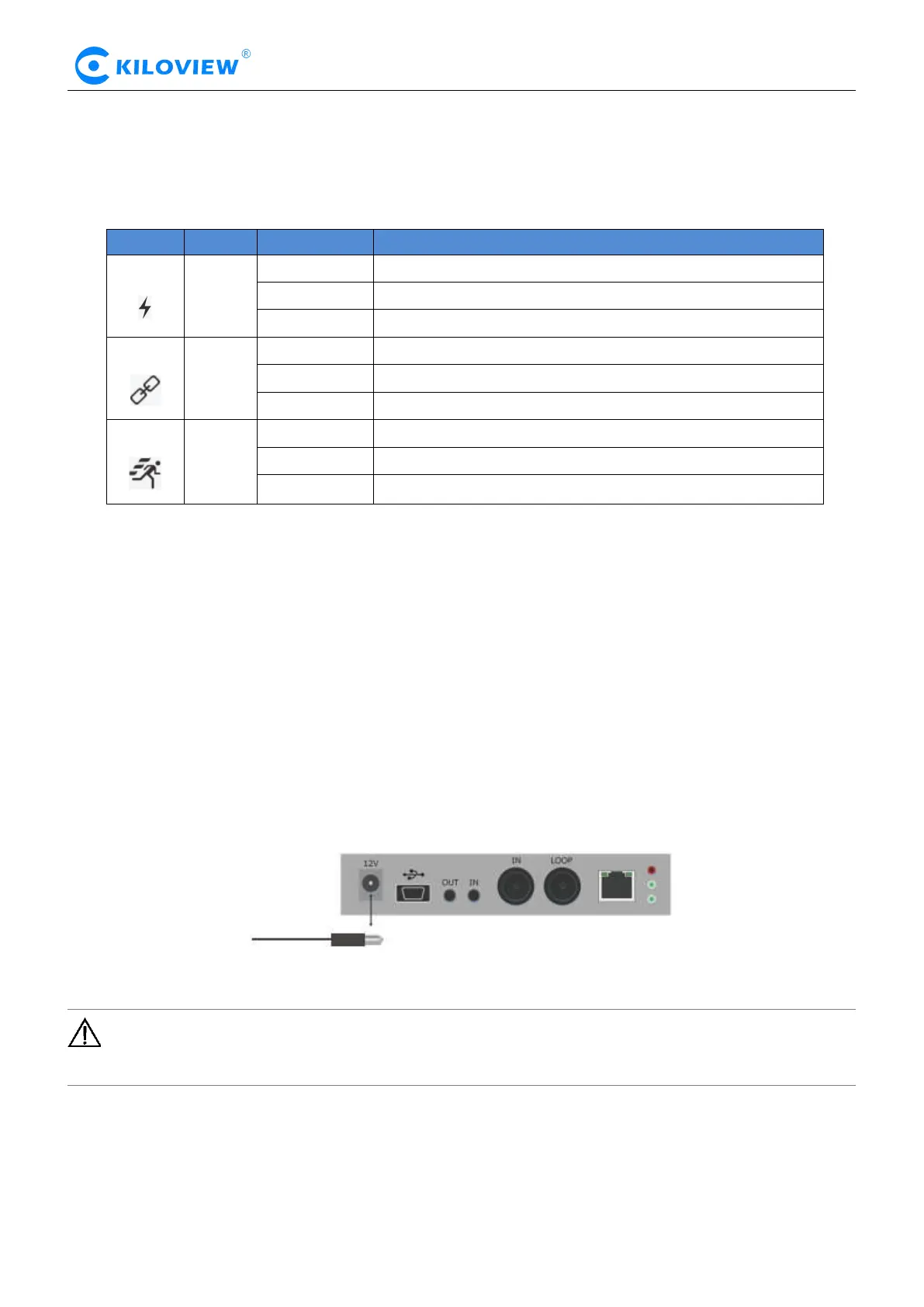

3.3 LED indicator descriptions
E/G/M/1U LED indicator status
4 Installation and Connection
4.1 E/G series installation and connection
4.1.1 Connect the power adapter
Using the power adapter (DC 12v) connect to the main product, after the power is turned on, then the
product starts working immediately.
Note: Please use the standard power adapter provided. Using other unqualified power supplies
may damage the device.
Name Color Status Description
POWER
Red
Always on Power supply is connected
Flashing Power failure
Off Power supply is not connected
SIGNAL
Green
Always on SDI/HDMI signal is connected
Flashing Restore device to factory settings
Off SDI/HDMI signal is not connected
RUN
Green
Always on Device is starting
Flashing Restore device to factory settings
Off Working abnormal/not started

Kiloview E1 Series Specifications

General

Video Input	SDI
Video Output	HDMI, SDI
Audio Input	3.5mm audio jack
Audio Output	3.5mm analog audio output
Encoding	H.264
Network Interface	Gigabit Ethernet
Protocols	RTMP, RTSP, SRT, UDP
Management	Web GUI
Power Supply	DC 12V
