Kinco FV20 User Manual

Chapter 4 Operation Instructions of Kinco VFD
50
FWD/REV: Light is on, VFD runs forward; Light is off, VFD runs reversely.
NORM/LMT Light is on, VFD is in current limit state; Light is off, VFD is not in current limit state and can run
normally.
FLT/ALM Fault alarm indicator
LOCAL/REMOT Light off
VFD in normal running status
LOCAL/REMOT Light on
VFD in fault status & display fault code
LOCAL/REMOT Light blink
VFD in alarm status & do not display fault code
HZ A V
RPM
%
Unit indicator, used to show unit of current data.
There are some unit below
Light OFF
Light ON
HZ A V
RPM
%
HZ Frequency unit
HZ A V
RPM
%
A Current unit
HZ A V
RPM
%
V Voltage unit
HZ A V
RPM
%
RPM Speed unit
HZ A V
RPM
%
% Percentage

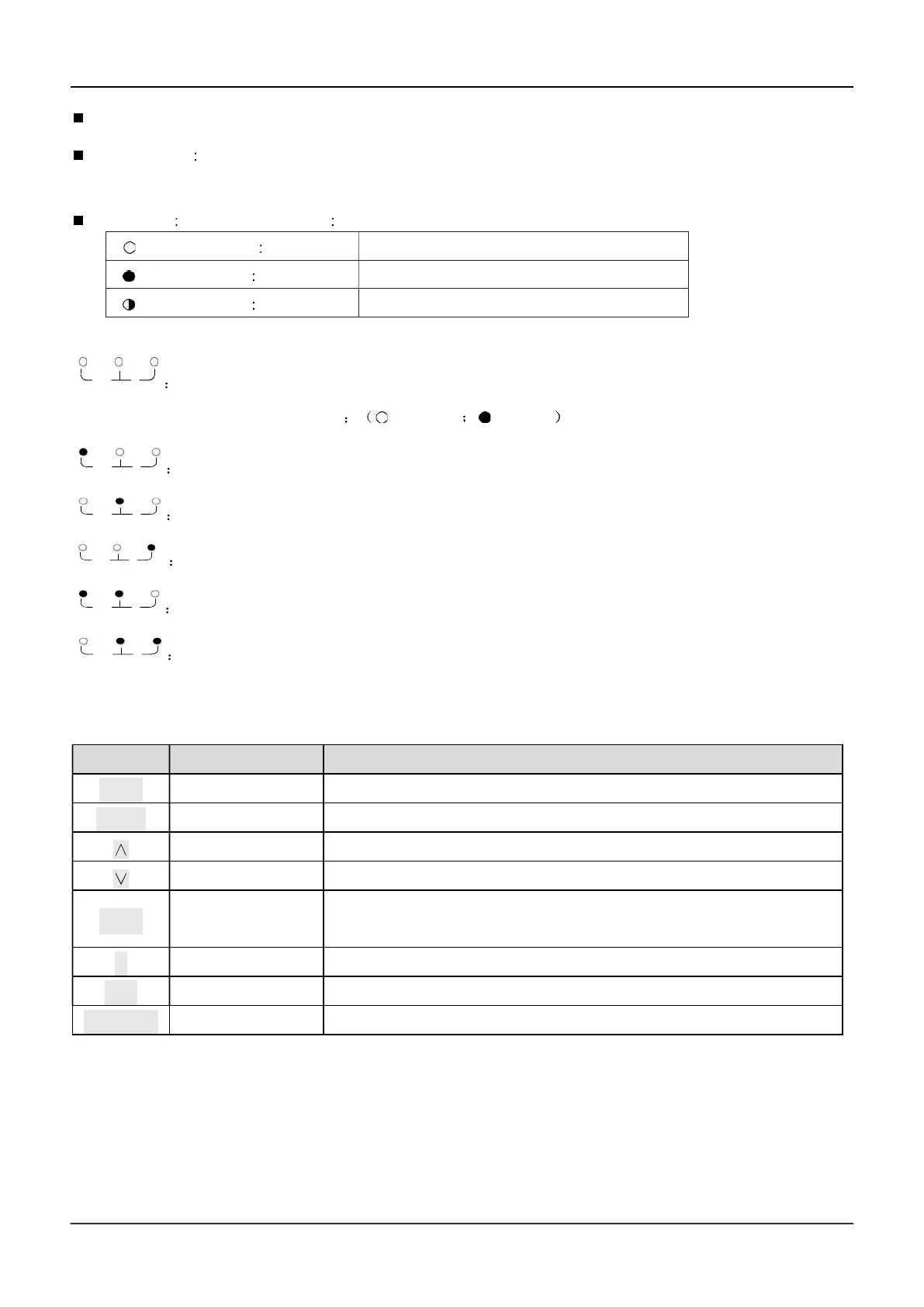

There are 8 keys on the operation panel and functions of each key are shown in Table 4-1.
Table 4-1 Function list of operation panel
Key Name Function
MENU Program/exit key Enter or exit programming status
ENTER Function/data key Enter next level menu or confirm data
Increase key Increase data or parameter
Decrease key Decrease data or parameter
SHIFT Shift key
In editing status, press this key to select the Bit to be modified. In other status,
this key is used to switch the parameters to display.
M Multi-function key Use the b4.01 to configure the function of this key
RUN Run key In panel control mode, press this key to run the drive.
STOP/RST Stop/reset key Press this key to stop or reset the drive.
