Chapter 2 Product introduction
44

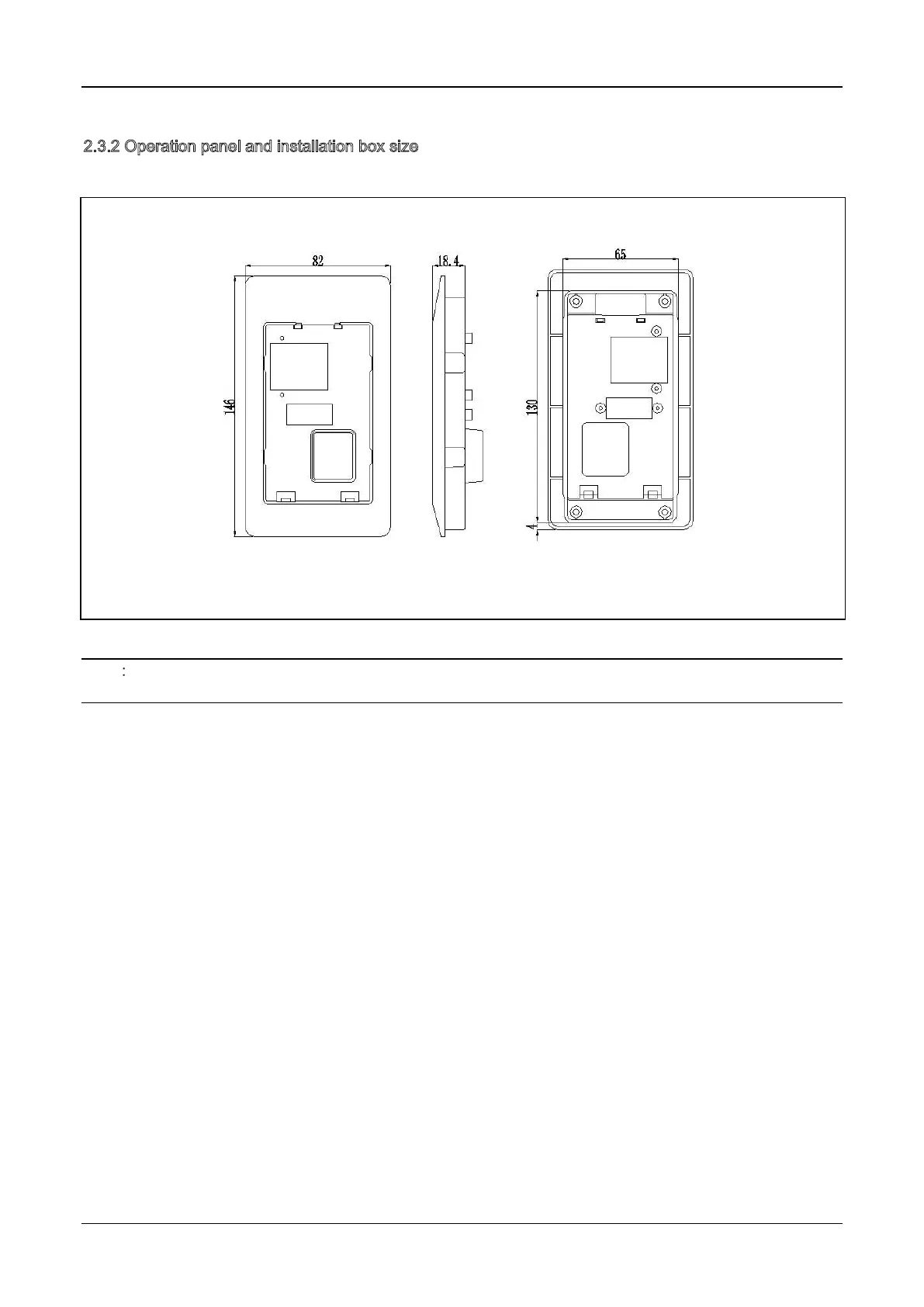

2.3.2 Operation panel and installation box size
Fig 2-3 Installation box dimension
Note
When the operation panel is mounted, the opening size of the tray is 65*130mm.
