Table 4 Definition of Strong Current Port
Signal
Functional Description
A+
Phase A of motor. The switching between A+ and A- can change
motor rotation direction.
A-
B+
Phase B of motor. The switching between B+ and B- can change
motor rotation direction.
B-
R+
Absorbing
Break
resistor
port.
R-
Table 5 Definition of Power Input Port
ACN+
Power input ports for the driver. The 2M2280N driver can be
connected to a single-phase 220V AC source directly.
ACL-
PE
Grounding terminal of the driver
3.3 Wiring Diagram

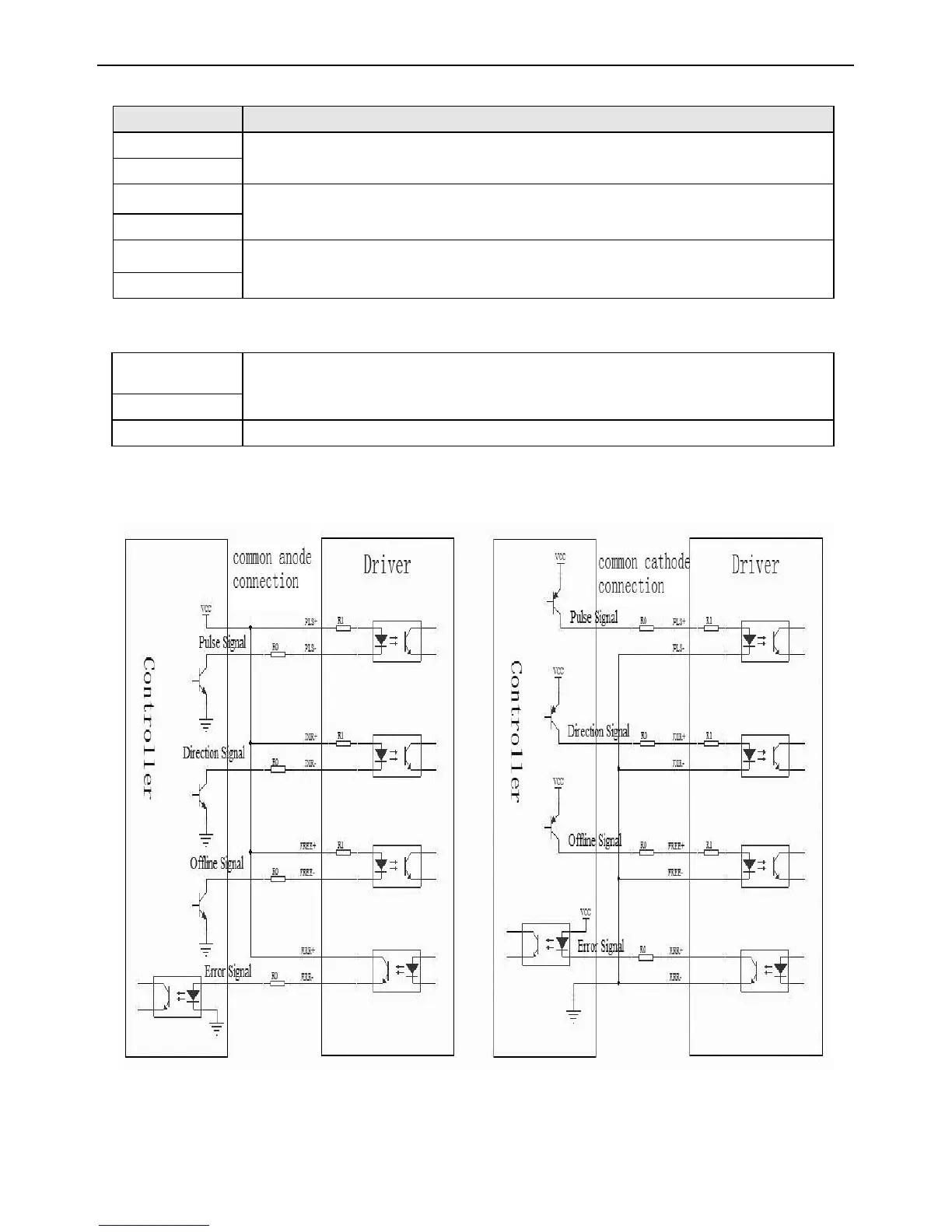

General Way Control Signal Wiring Diagram
