2M1180N/2M2280N Stepper Motor Driver
13

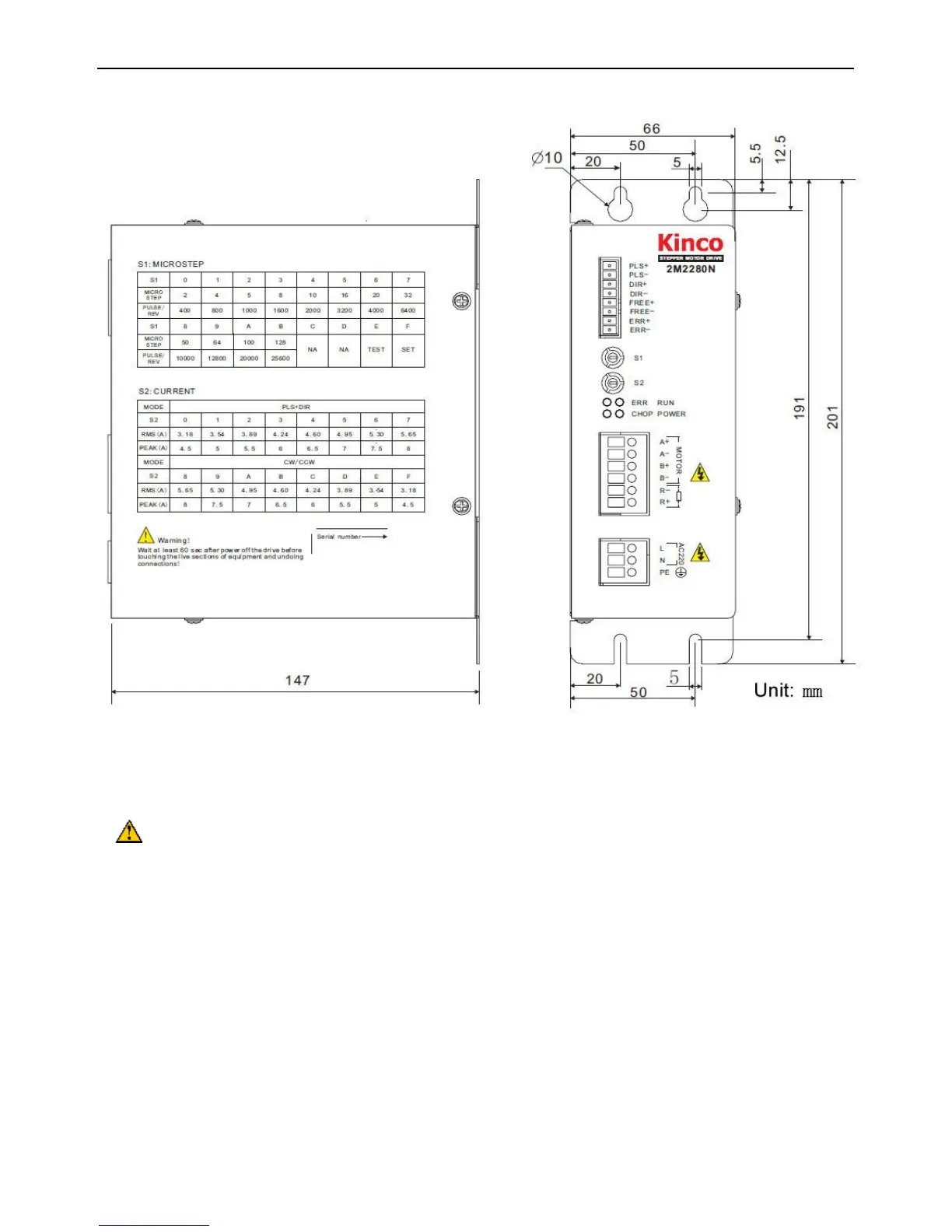

3.6 Installation of the driver
If the field application need motor response speed very very high, such as digital
control machine application,it recommend to disable mircro-step smoothing filter to
reduce the time of motor reach the location。
Precautions on Installation:
It is recommended that the driver be mounted on a side and kept in an upright
position, so as to maintain a well ventilated installation environment. Never block or
cover the air vents of the driver; otherwise, the normal use of the driver may be
prevented by possible frequent overheat alarms.
For better heat dissipation, two drivers shall be installed at a clearance of at least
50mm.
With an ingress protection class of IP20, the driver shall be installed in an
industry-compliant indoor switching cabinet; failure to do so may cause damage to
the driver or personal injury.
Enhanced heat dissipation is required if the driver generates overheat alarms
