Original Version
Caution: Do not solder any fitting while connected to the unit adaptors.
Care should be taken during the installation process to ensure solder and flux
do not come in contact with any of the components.
Flush:
After plumbing is complete, but
before connecting to water softener,
flush both inlet and outlet lines and
allow water to rinse out any debris.
4

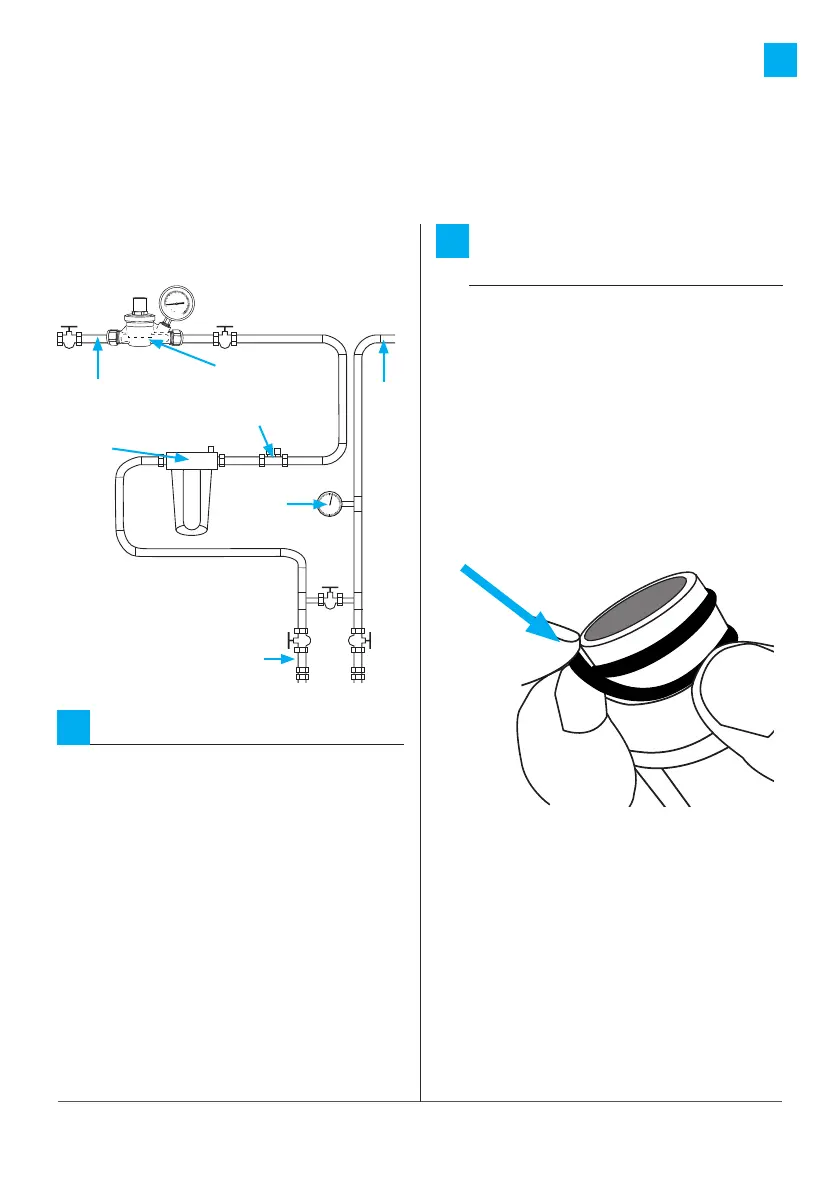

Or, establish a by-pass installation
based on the following diagram.
Fit inlet/outlet
connection:
When using the Kinetico blending
by-pass valve, consult separate
installation instructions. Please
note, the orientation of the valve
will determine which connection
is used as the inlet. Or, follow the
process below:
a: Fit 2 o-rings to each in/out
adaptor then lubricate with the
supplied silicone grease.
b: Connect inlet/outlet adapters
to supply and return hoses
remember to use the washers.
c: Install adapters into control
valve in/out ports, ensuring that
they are fitted into the correct
ports (see flow arrows on valve
for reference).
d: Attach the retaining bracket and
pin to the control valve.
5
1
2
3
4
5
6
0
bar
Mains supply
To
home
Pre-filter
To water softener
Gauge
Pressure
regulating valve
Non-return valve
