TQ Series Technical Manual
Page 11 Equipment Specifications 9.9.04
Rev. 5

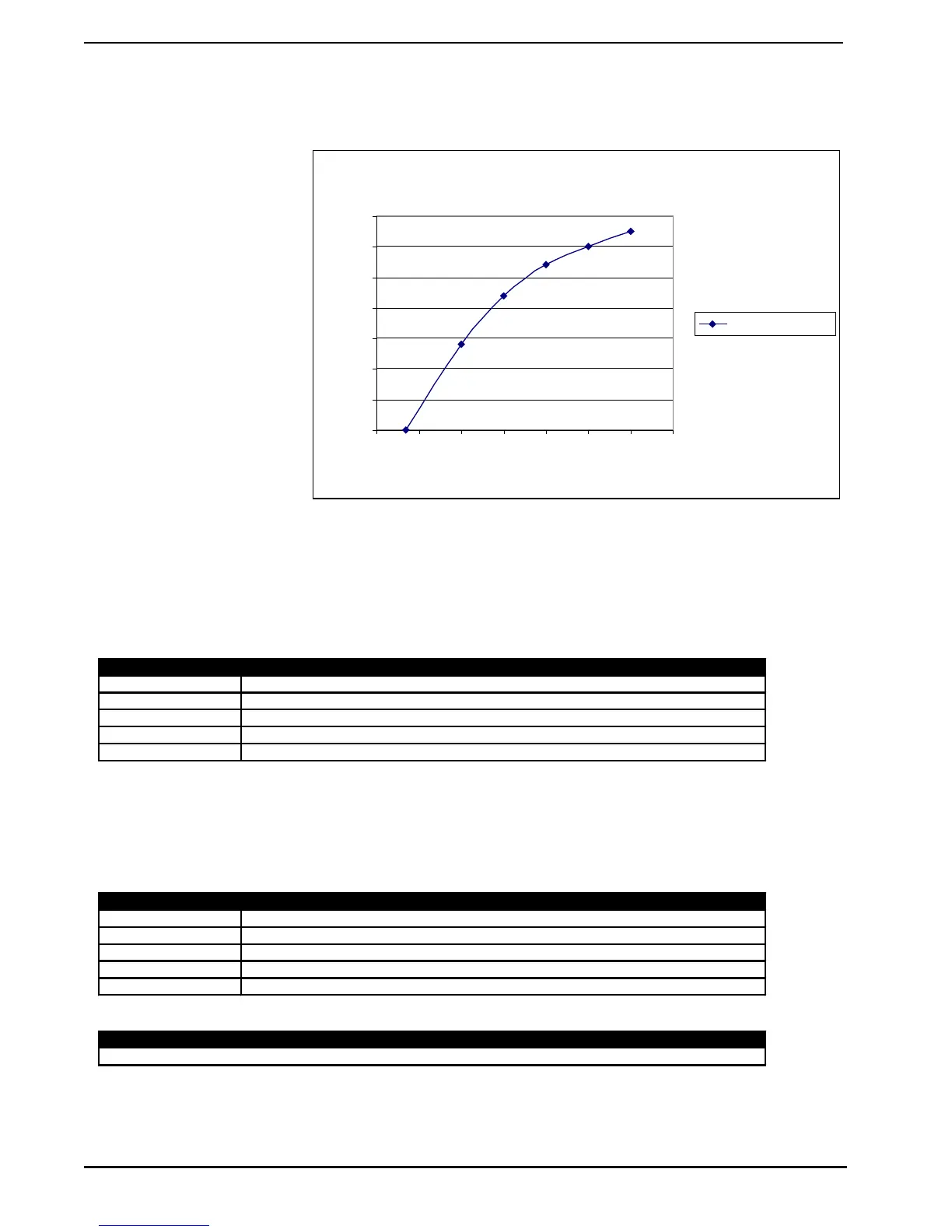

Pressurized Storage Tank Capacity
0
10
20
30
40
50
60
70
0 10203040506070
Total Tank Pressure (air & water) PSI
% of Maximum Capacity
7 psi Precharge
The chart below shows the storage capacity for pressurized storage tanks at various precharges.
To determine this volume:
1) Find the point on the
horizontal axis at the bottom of
the graph that represents the
total pressure (air plus water)
in the tank. Move vertically to
the air pre-charge line found in
step 1.
2) Move horizontally to the left
axis and read the percent of
“maximum total volume” in the
tank under the above
conditions. Multiply this
percentage by the maximum
total water volume to
determine the volume of water
in the tank.
Repressurizer Pump
If an atmospheric-type holding tank is used, then the water must be repressurized for use throughout the
facility.
Atmos
heric Stora
e Tank Accessories
Part Numbe
Description
7527 Level Control Assembly Atmospheric Tank
9837 Bulkhead Kit, CRO
10208 Repressurizer, TS 115 Volt
10209 Repressurizer, TS 230 Volt
8736*
3 Gallon EverClean Rinse Accumulato
* If an atmospheric tank is used with the level control, an accumulator tank must be added to shut off the
unit properly.
The following fittings should be added:
#8939 Conn, Tube 3/8T x 1/2 Stem
#8308 Tee, 1/2 Union
#9336 Valve, Ball 3/8 Stem
Filter Accessories
Part Numbe
Description
9046 Filter Asy, Single 20" Housing w/Bracket
9047 Filter Asy, Double 20" Housing w/Bracket
7474 Cartridge, Carbon Matrix for 20" Housing
367 Cartridge, Prefilter 5 Micron for 20" Housing
7477 Cartridge, Sediment/Declor 5 Micron for 20" Housing
Miscellaneous
Part Numbe
Description
3814 Wrench, Filter Sump
