TQ Series Technical Manual
Page 15 Equipment Specifications 9.9.04
Rev. 5
Component Functionality TQ 174 - 176

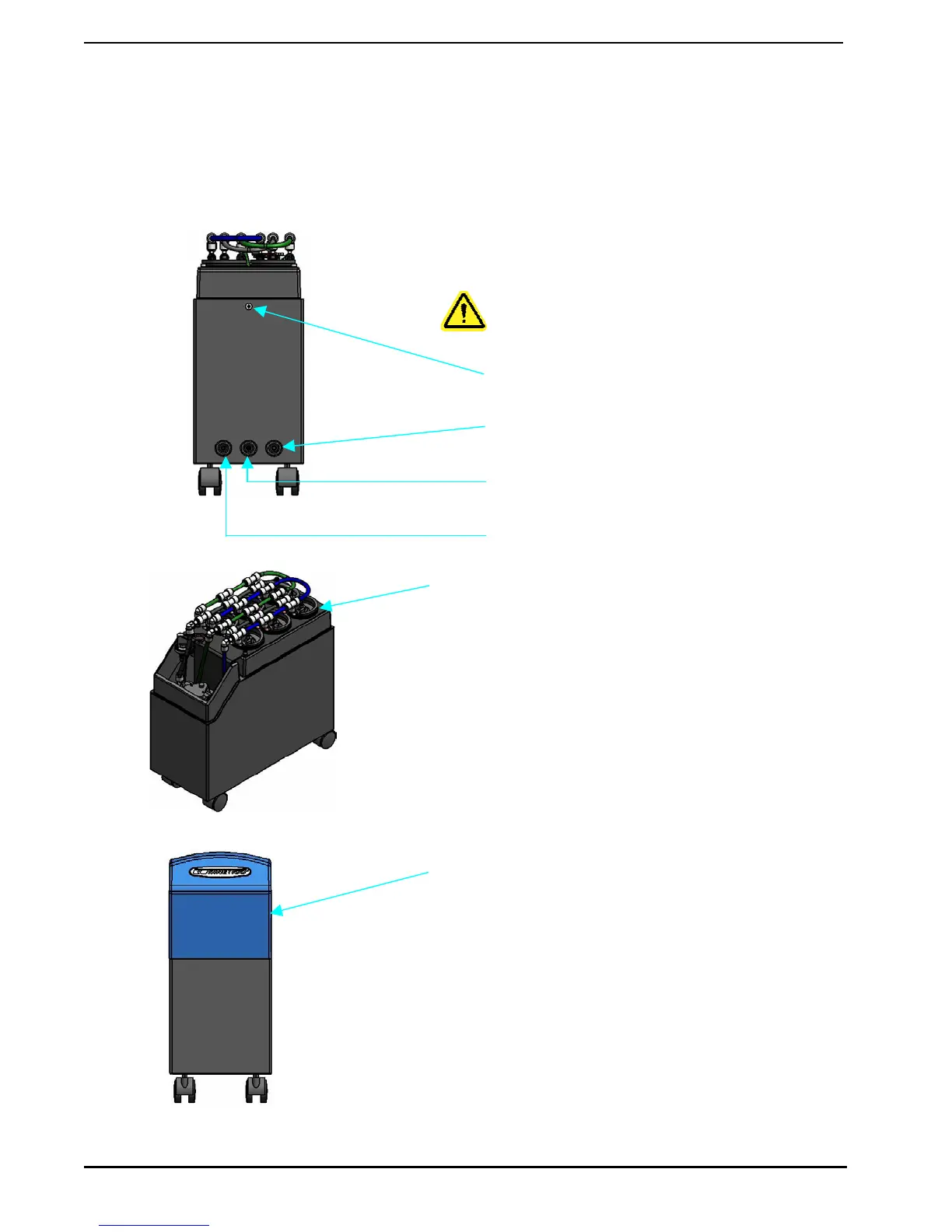

The TQ System is comprised of various components. A brief description has been provided for each of these
major components. The illustration helps depict the physical location of these components on the TS system,
while the flow schematic shows the flow path through the system.
Connections: All connections are located on the
back of the system.
Do not use smaller than 3/8” tubing on any
connection.
Power cord plug – 24 vdc
Drain Bulkhead 3/8” Push fit
Permeate Bulkhead 3/8” Push fit
Inlet Bulkhead 3/8” Push fit
Bracket An aluminum anodized bracket is used to
support the multi-membrane structure and the system
pump.
System Cover A decorative cover is used to shield the
feed, permeate and drain plumbing manifolds. This
cover can be removed should maintenance be required
on any of the internal components.
