TQ Series Technical Manual
9.9.04 Equipment Specifications Page 14
Rev. 5

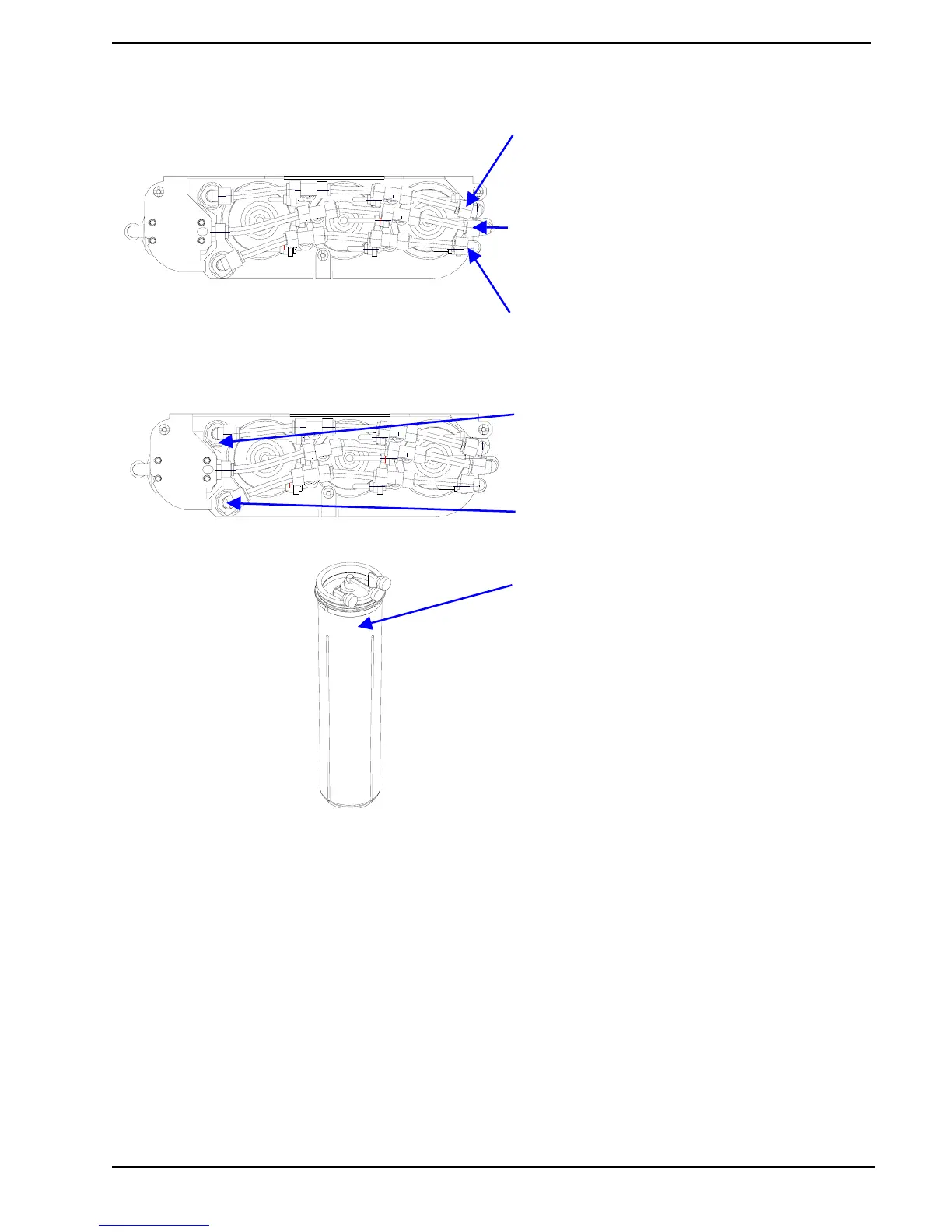

Permeate Manifold The permeate manifold
(Blue) uses 3/8” tubing to connect water from the
permeate to a common bulkhead.
Inlet Manifold The inlet manifold (Black) uses
3/8” tubing to connect water from the outlet of the
filter cartridge to each membrane housing.
Drain Manifold The drain manifold (Green) uses
3/8” tubing to connect water from the drain outlet
of the membrane housings to the bulkhead.
Permeate Outlet The permeate outlet uses 3/8”
tubing connection and is located at the back of
the unit.
Drain Outlet The drain outlet uses 3/8” tubing
connection and is located at the front of the unit.
EverClean Rinse Each housing internally
contains a permeate reservoir. During shut down
modes, this water is used to flush the
membranes, keeping them in optimal condition.
