Kinetico Drinking Water Filter
with MACguard
®
Undersink Models 7000 and 7500
Installation Instructions
Rev.: 01/2011 Kinetico Incorporated ◆ Corporate Headquarters ◆ Newbury, Ohio 44065 ◆ (440) 564-9111 Product No. 9383H
3
CAUTION
Over tightening of any threaded fitting could result in damage to the fitting
or the filter head.
2. Apply Teflon tape to the plastic male elbow (See Figure 2), and install it into the outlet on the right side of the filter
head/bracket assembly (See Figure 3).

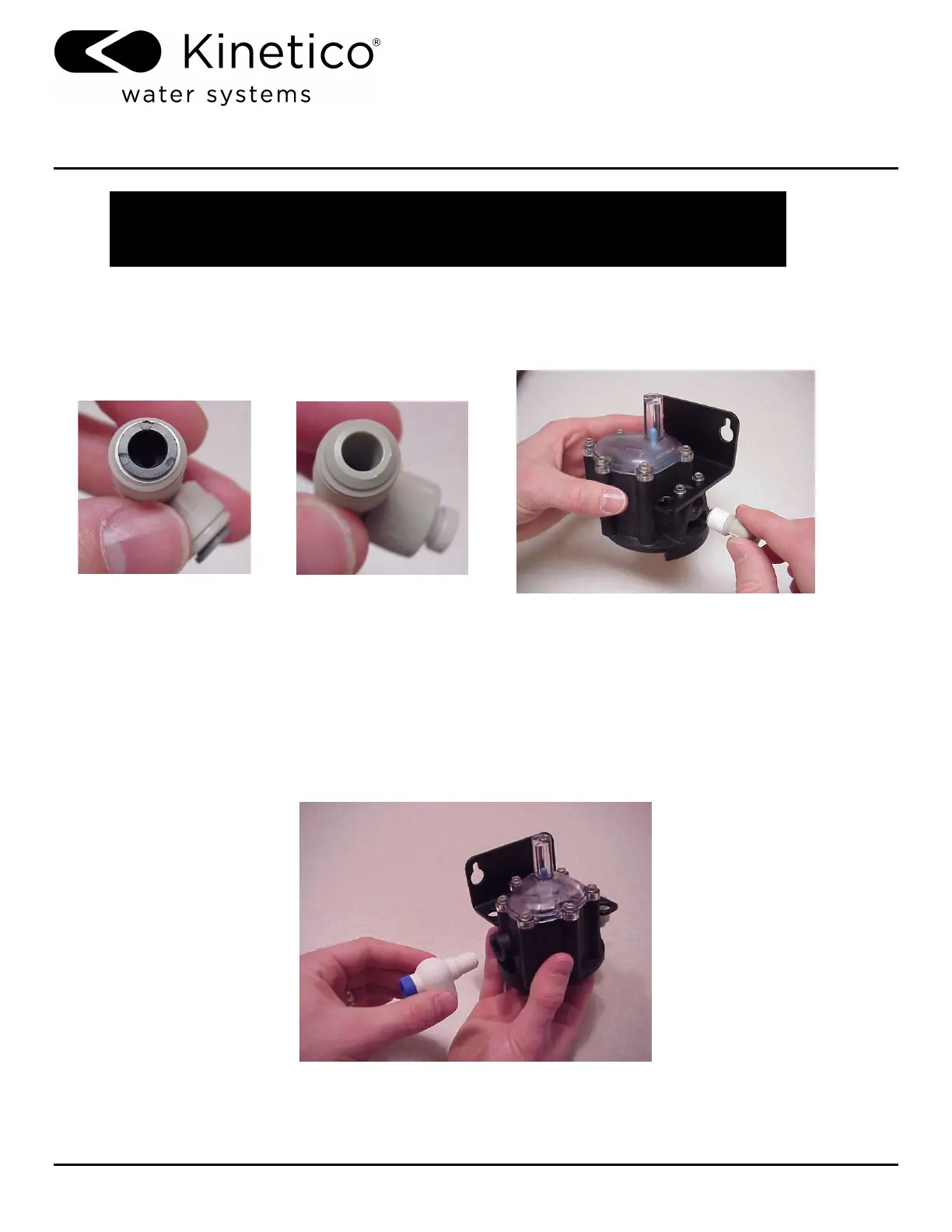

Figure 2. Elbows Figure 3. Elbow Installation
NOTE: Model 7500 uses a Flow Control elbow to ensure your water has adequate contact time with the
carbon inside of the filter cartridge. Model 7000 uses a standard elbow.
3. Apply Teflon tape to the male end of the shutoff valve provided and install it into the inlet on the left side of the filter
head (See Figure 4). Hand tighten the valve until it is firmly in place.
Figure 4. Shutoff Valve Installation
To Next Page
