6.2 Beacon (Oponal) Connecon

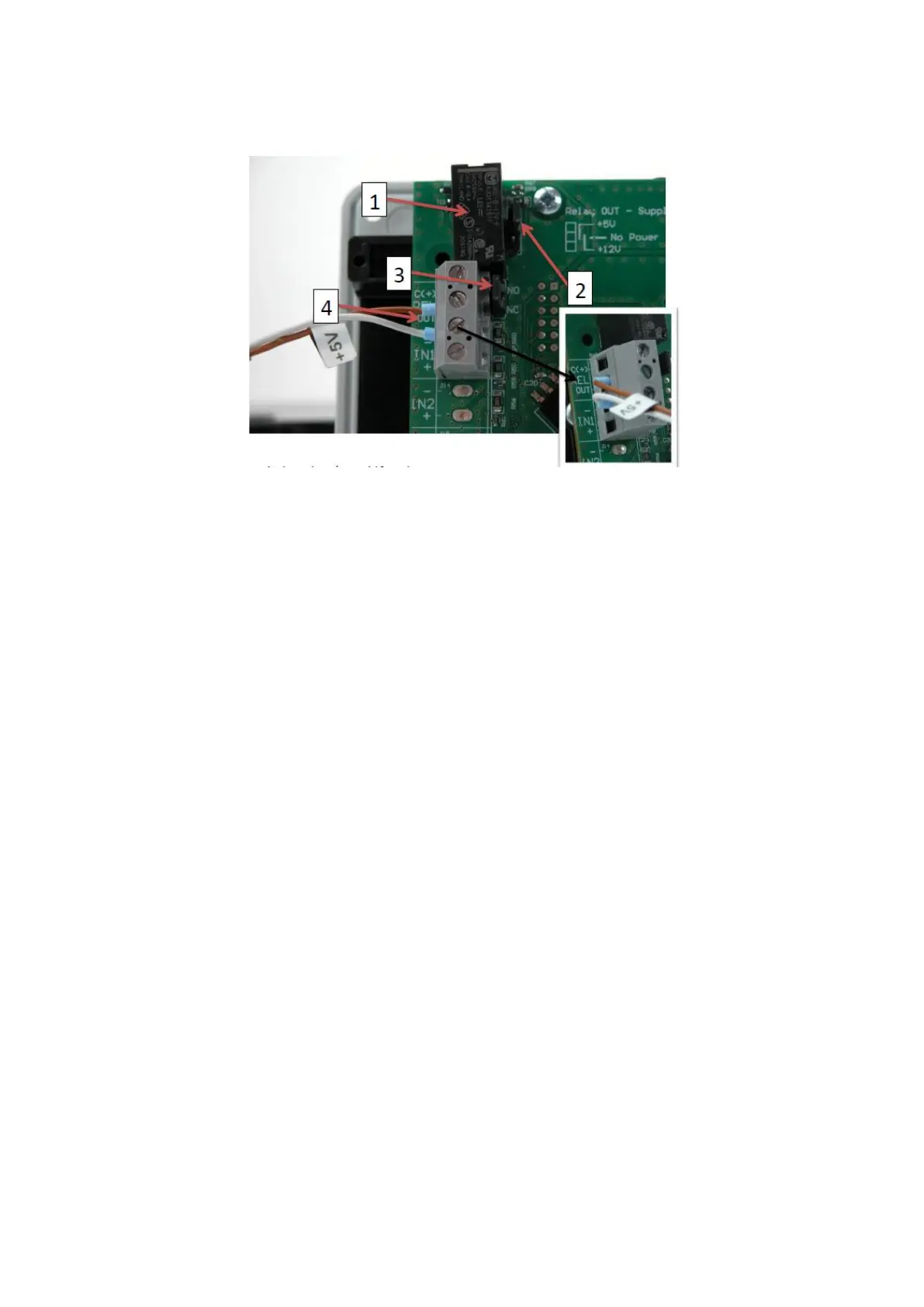

1. Low voltage / volt free contact
2. Jumper voltage. Set relay voltage to jumper up: +5VDC Beacon.
3. Jumper NC: Relay closed without power supply. At mains failure (= without power supply) and
alarms the relay is closed ->. Beacon is supplied (=ON)
4. Screw type terminals for Beacon cables
Beacon (external 5VDC via cable)
• 5VDC
• NC
• Brown cable – REL OUT
• White Cable - IN
