Kingtex FT6500 User Manual

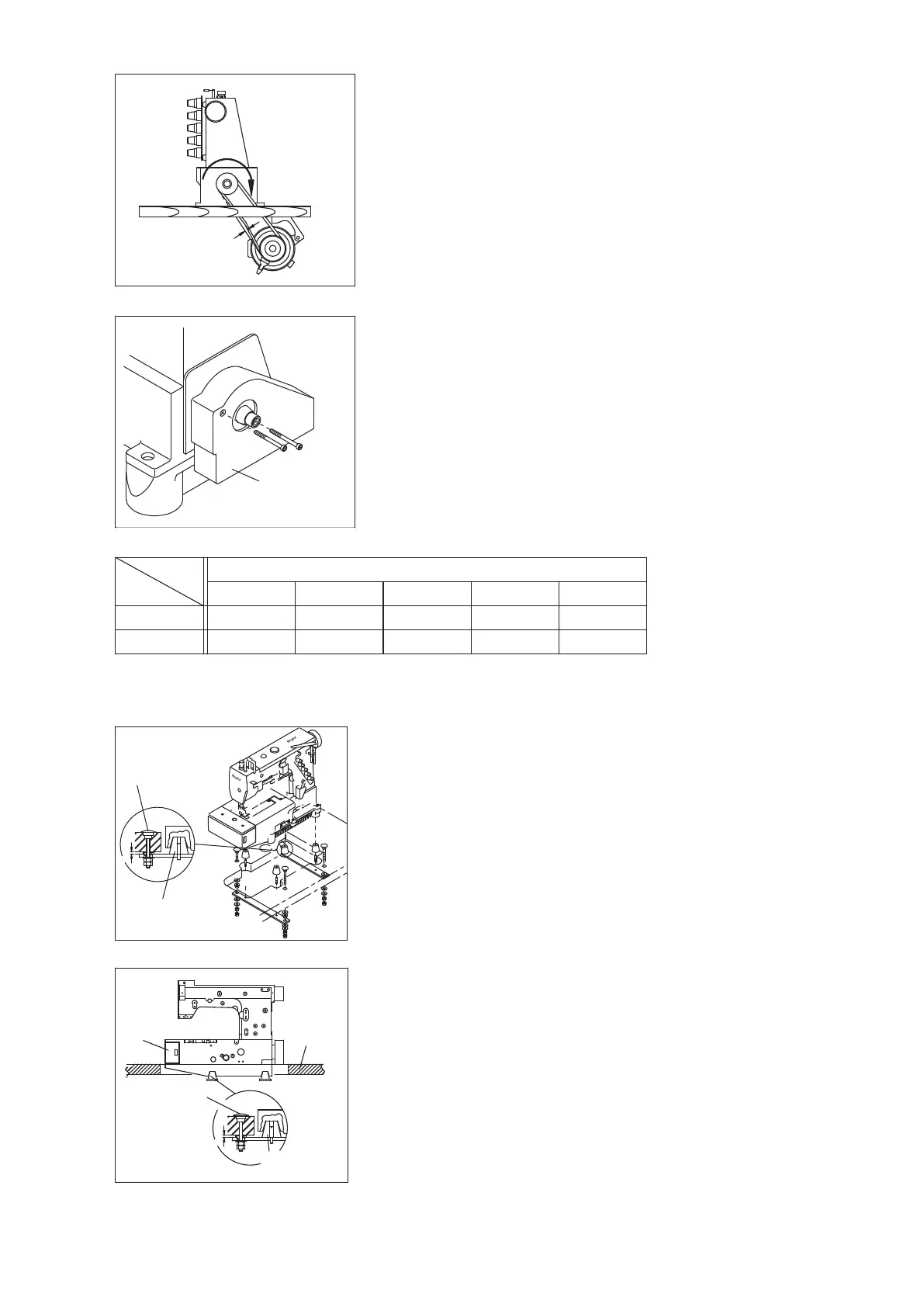

2-2 下沉式安裝 TABLE TOP INSTALLATION
如圖所示，先確定懸吊螺樁已經鎖緊後，再將車頭正確的安置在
減震橡膠墊上。
INSTALL THE MACHINE CORRECTLY REFERRING TO THE
ILLUSTRATION.SET BOLTS AND NUTS TO MACHINE TABLE AND PUT
PUBBER CUSHIONS ON BOLTS AND REST THE MACHINE ON THEM
懸吊螺樁
SECURELY.
減震橡膠墊
車板
布板架
懸吊螺樁
BELT COVER
減震橡膠墊
本機型適用馬達為 3 相 2 極 400W ( 1/2 馬力)離合馬達，踏板
踩下啟動馬達時皮帶論會向左移動，請將馬達安裝在皮帶輪與
機器皮帶輪同一中心線的位置上
MOTOR: USE A CLUTCH MOTOR OF 3-PHASE 2-POLE,400W (1/2HP)
FIX THE POSITION OF MOTOR SO THAT THE CENTERS OF
MOTOR PULLEY AND MACHINE PULLEY ALIGN WHEN
TURNING
MOTOR PULLEY SHIFT TO THE LEFT BY PUSHING PEDAL.
DIRECTION
COVER
TABLE
TOP
BOLT AND
NUT
RUBBER CUSHION
4mm
4mm
皮帶護誓
由皮帶的中間輕壓約有 2CM 的彈性，再確?皮帶的迴轉方向是
2cm
否正確，最後裝上皮帶護蓋。
BELT: M TYPE V BELT AND BE SURE THE MOTOR RUNNING
DIRECTION IS CLOCKWISE AND THE MOTOR BELT TENSION
CAN BE PRESSED INWARD ABOUT 2 CM
迴轉方向
RUBBER CUSHION
皮帶輪直徑 DIA. OF PULLY
(MM)
BOLT AND NUT
6000
50HZ
60HZ
55005000
4900
4600
120110100
90
85
4600
5500
CYCLE
利用墊圈調整縫機的高度，必須確?縫機與針板沒有干涉，同時
布板可以順利的?關。
IF USING RUBBER CUSHION TO ADJUST THE HEIGHT OF MACHINE
THEN, MUST MAKE SURE THERE IS NO INTERFERENCE BETWEEN
MACHINE AND TABLE TOP, SO CAN OPEN UP THE OIL FILTER
SIDE COVER WITHOUT ANY PROBLEM.
