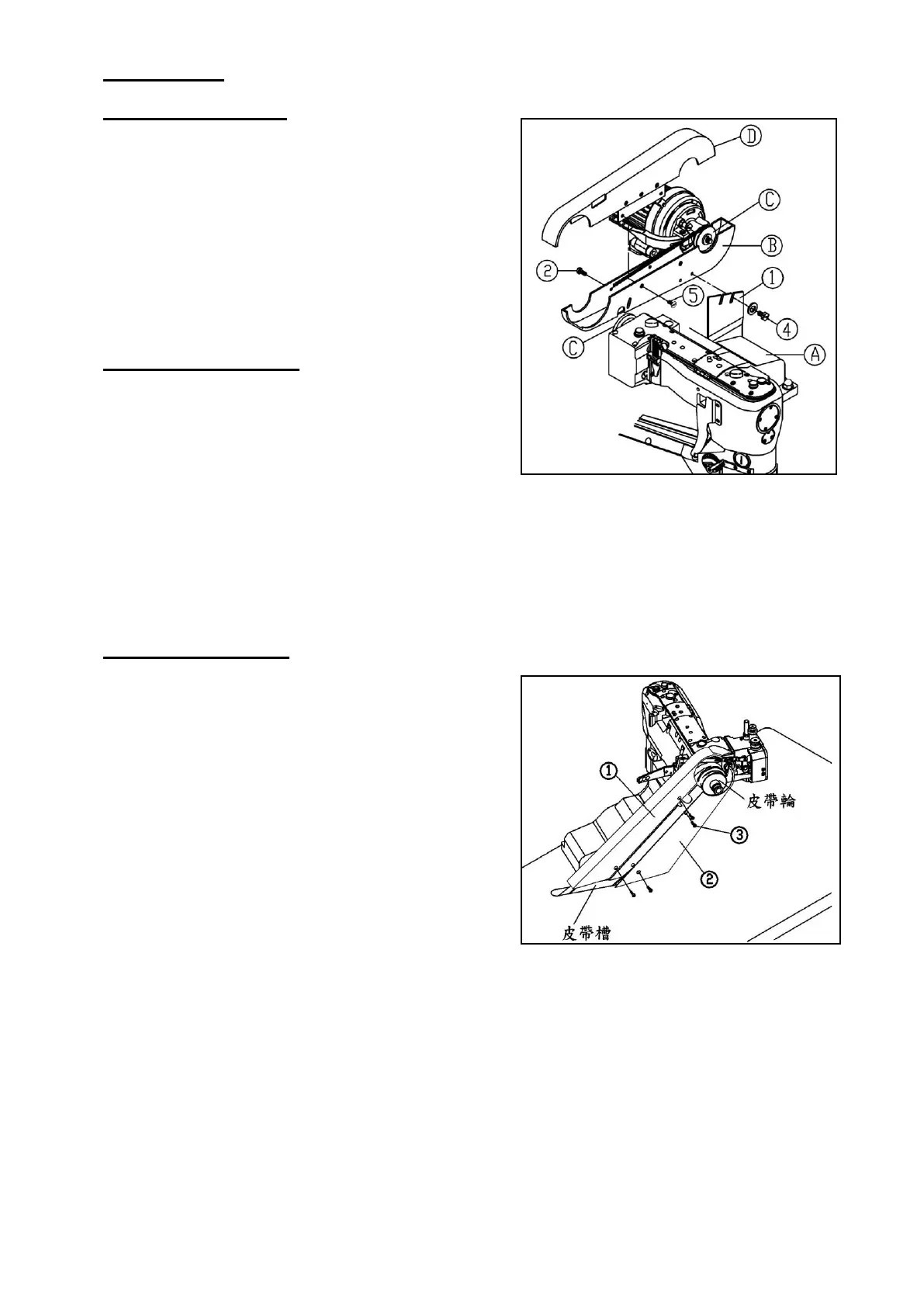

安裝皮帶護蓋
安裝 TTS11 皮帶護蓋
1. 安裝皮帶蓋支架於車頭座○
A
2. 輕輕鎖緊螺絲將皮帶護蓋○
B
固定於
車頭座○
A
3. 輕輕鎖緊螺絲將皮帶護蓋○
B
固定於
支架
4. 調整皮帶護蓋○
B
使三角皮帶輪○
C
對正
圓孔中心後，鎖緊螺絲、
5. 結合皮帶護蓋○
D
鎖緊螺絲
Setting belt cover
(1) Set the belt cover (lower)○
B
on the belt
cover bracket with
two screws and two washers.
(2) Fix the belt cover (lower)○
B
on the
sewing machine supporting block with
the screw and the washer.
(3) Set the belt cover (upper)○
D
on the
belt cover (lower)○
B
with four screws
and four washers.
安裝 HTS21 皮帶護蓋
1. 將皮帶蓋、分別由上方及下方對正
皮帶輪中心及桌板上皮帶槽
2. 鎖緊螺絲固定於車頭座上
