READJUSTMENT

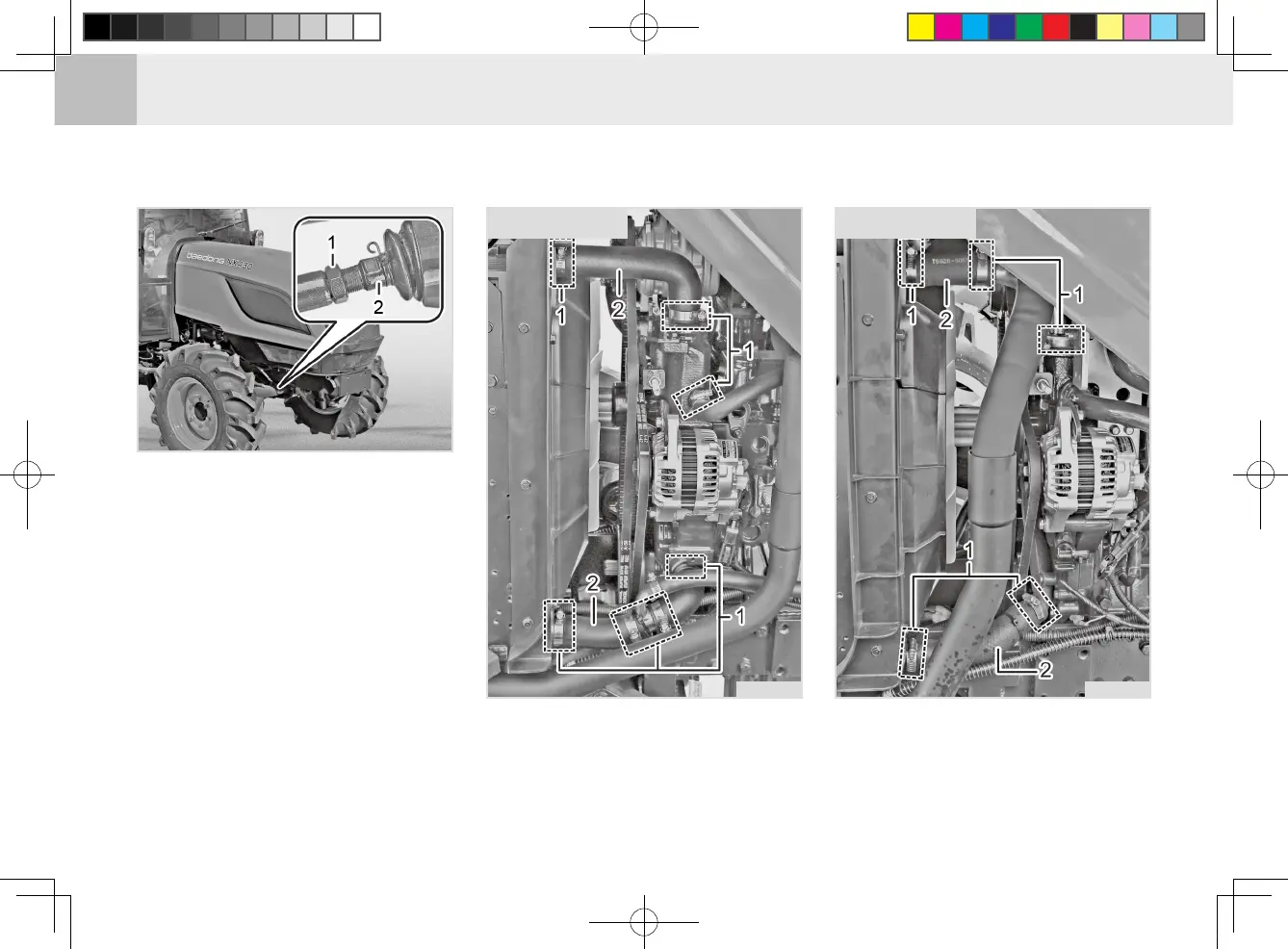

(1) Tie Rod Lock Nut (2) Tie Rod
1. Loosen the lock nut and turn the
turnbuckle to adjust the rod length
until the proper toe-in measure-
ment is obtained.
2. Check the toe-in value after the tie
rod is adjusted.
3. Adjust it again if necessary.
TE1O723A
CHECKING RADIATOR HOSE AND CLAMP (X)
TE1O724A
[NX4510/5010]
TE1O749A
[NX5510/6010]
(1) Clamp (2) Radiator Hose (1) Clamp (2) Radiator Hose
Check to ensure the radiator hoses are free from damage and are tightened
properly every 200 hours or every 6 months, whichever comes rst.
