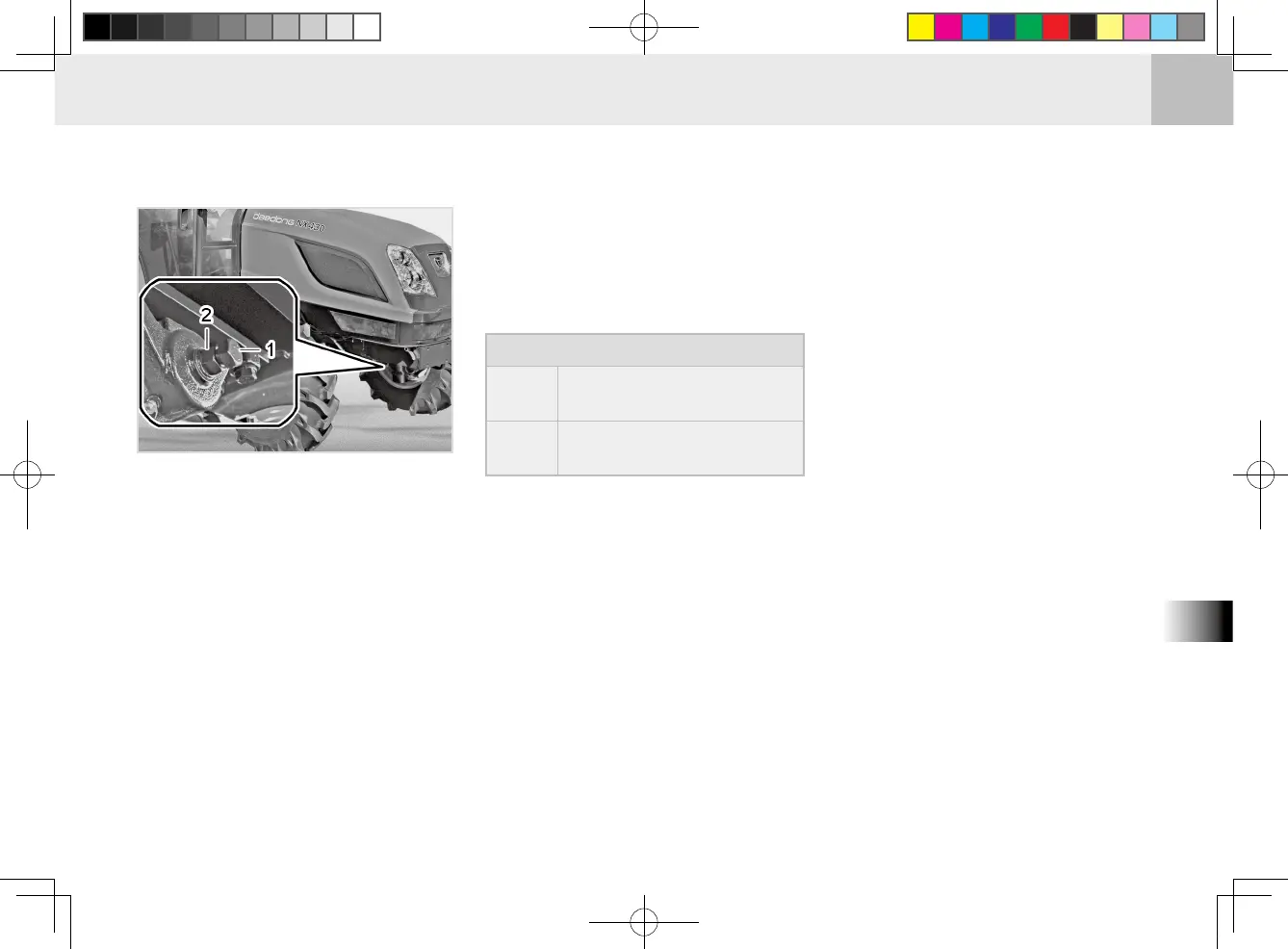

(1) Adjusting Bolt (2) Lock Nut
ADJUSTING FRONT AXLE PIVOT
(AB)
If the front axle pivot pin adjustment
is not correct, front wheel vibration
can occur causing vibration in the
steering wheel
TE1O728A
This service can be affected by the
engine sensitively. Therefore, contact
your local KIOTI Dealer for this ser-
vice.
ADJUSTING ENGINE VALVE
CLEARANCE (AC)
Adjusting Bolt/Nut Tightness Torque
Bolt
9.8 ~ 11.3 N.m
(1.0 ~ 1.15 kgf·m)
Nut
98.1 ~ 147.1 N.m
(10 ~ 15 kgf·m)
ADJUSTING PROCEDURE
Loosen the lock nut, tighten the ad-
justing screw all the way, and then
loosen the screw by 1/6 turn. Re-
tighten the lock nut.
