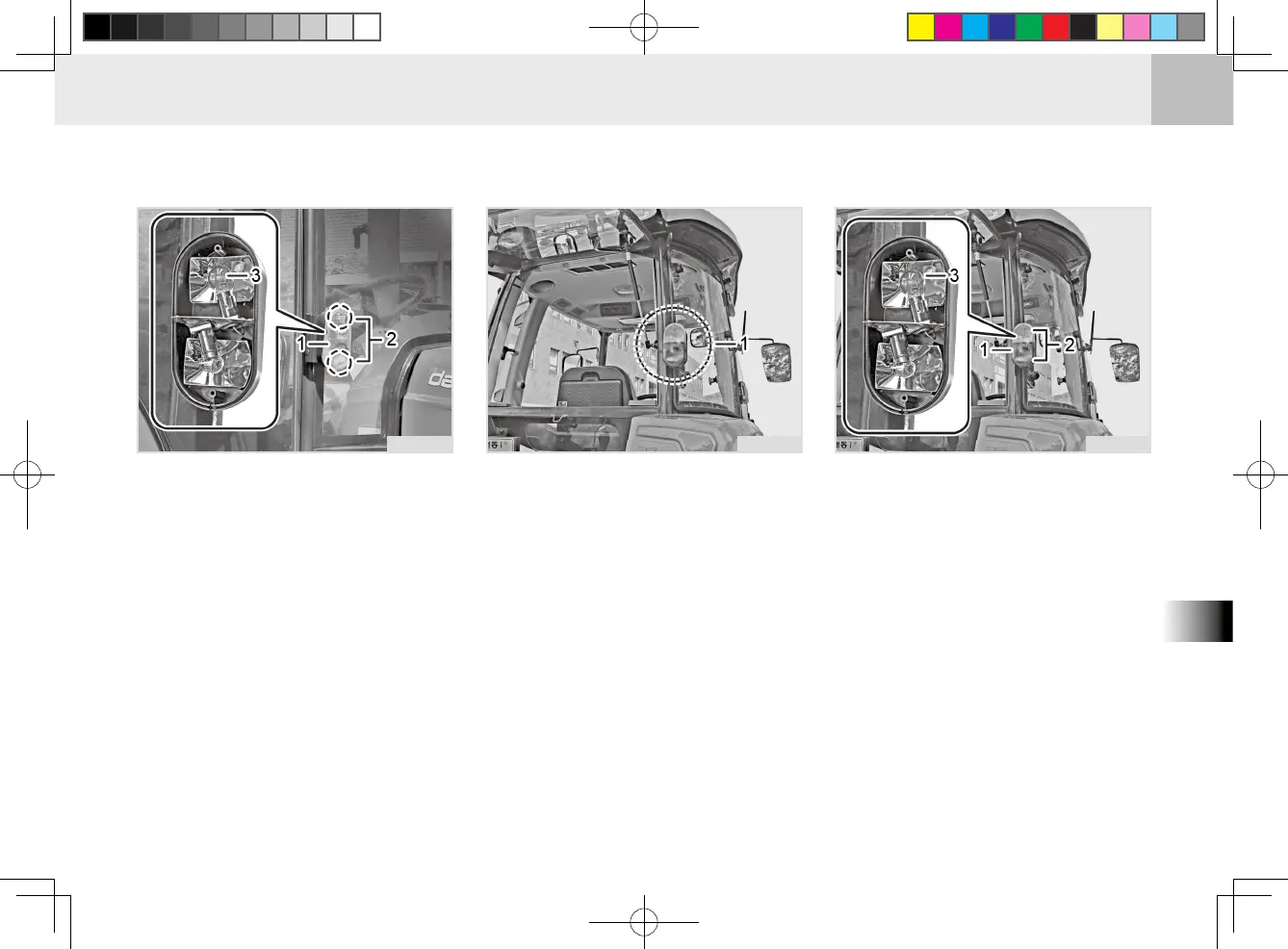

(1) Turn Signal Lamp (FRT)
(2) Mounting Bolt
(3) Turn Signal Lamp (FRT) Bulb
2. Remove the lens and unscrew the
mounting bolts to remove the front
turn signal lamp assembly.
3. Turn the bulb body counterclock-
wise to remove it.
4. Remove the bulb by pressing it
down lightly and install a new bulb.
Fit the socket to the grooves and
turn it clockwise.
TE1O745A
TURN SIGNAL LAMP (REAR)
(1) Turn Signal Lamp (RR)
1. The turn signal lamp (rear) is in-
stalled on the rear fender.
TE1O741A
(1) Turn Signal Lamp (FRT)
(2) Mounting Bolt
(3) Turn Signal Lamp (FRT) Bulb
2. Remove the lens and unscrew the
mounting bolts to remove the front
turn signal lamp assembly.
3. Turn the bulb body counterclock-
wise to remove it.
4. Remove the bulb by pressing it
down lightly and install a new bulb.
Fit the socket to the grooves and
turn it clockwise.
TE1O745A
