4
4
-
37DESCRIPTION OF OPERATING SYSTEM

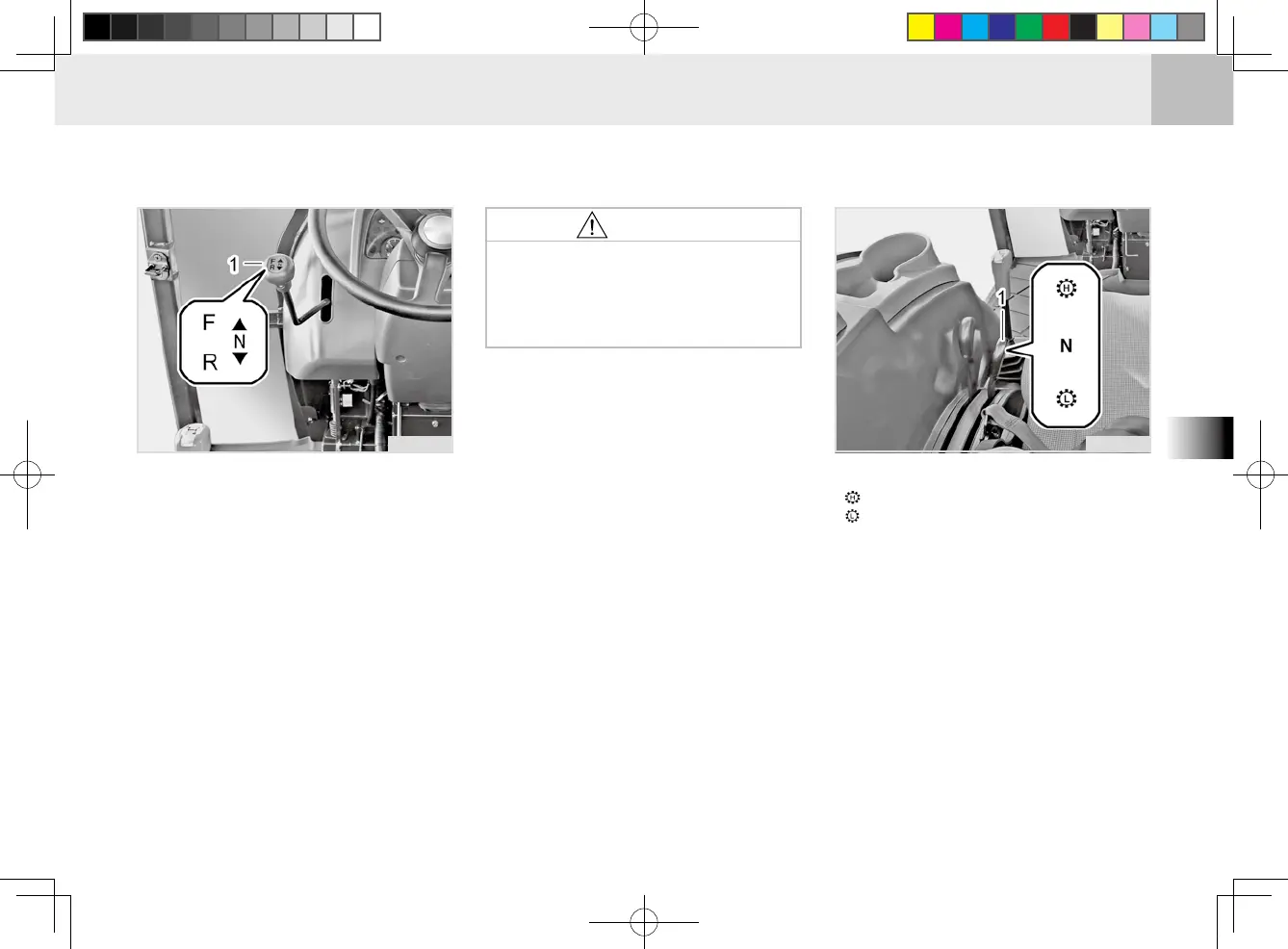

SHUTTLE SHIFT LEVER
(1) Shuttle Shift Lever
(F) Forward (R) Reverse
(N) Neutral
This lever is used to select forward
or reverse driving. The lever can be
shifted while the tractor is moving
with the clutch disengaged as these
gears are synchromesh. Shifting this
lever frequently can deteriorate the
trans-mission’s life and durability.
Put this lever into the N position
(Neutral) when the tractor is not driv-
en.
TE1O434A
Reduce the speed before mov-
ing this lever since it is very
dangerous to switch the driv-
ing direction at a high speed.
CAUTION
CREEP GEAR SPEED LEVER
(1) Creep Gear Speed Lever
( ) High Speed
( ) Low Speed (N) Neutral
Position the creep speed lever in the
"H" position in normal conditions, and
shift it to the "L" position only when
necessary.
When the creep speed is selected,
the rotational force of the axle has
major effect on the tractor (mechani-
cal). Misuse of this lever can result
in malfunction or damage. Therefore,
note the followings:
TE1O493A
TE120(NX4510,5010,5510)CABIN,ROP37 37 2015-04-23 오후 4:25:50
