3-POINT HITCH IMPLEMENT OPERATIONNX4510/NX5010/NX5510/NX6010
6
6
-
9
6
-
8
3-POINT HITCH IMPLEMENT OPERATIONNX4510/NX5010/NX5510/NX6010
T66O122A

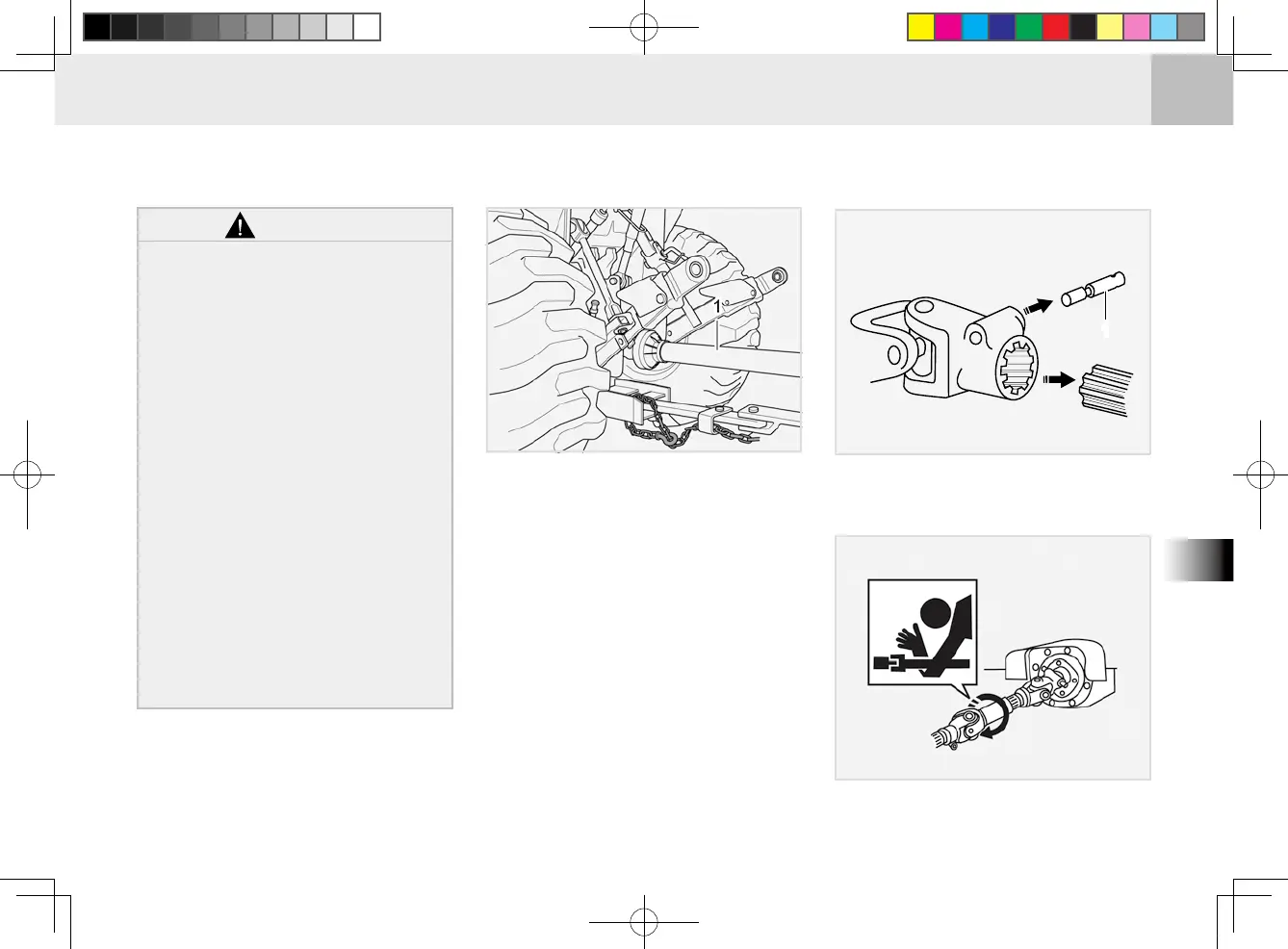

INSTALLING PTO SHAFT
1. Consult your local KIOTI Dealer
for selection of the PTO Shaft.
2. When selecting a PTO Shaft,
make sure that it is not too short to
come off of the female and male
shafts at the highest position or too
long to impact its female and male
shafts at the lowest position.
3. Move the joint back and forth to
check that its lock pin is properly
seated to the groove of the PTO
shaft.
(1) PTO Shaft
H11O682A
11
C56O140A
(1) Lock Pin
Never use any other part for
pulling except draw bar. Pull-
ing with top link, ROPS and
etc. will cause a fatal accident.
Be sure to install the auxiliary
safety chain when installing a
trailer.
Improper use of the draw-bar,
even if correctly positioned,
can cause a rear overturn.
Do not overload an attach-
ment or towed equipment.
Use proper counterweights to
maintain tractor stability. Hitch
heavy loads to the draw-bar
only.
Make sure that there is no-
body or not obstacle between
tractor and trailer.
•
•
•
•
•
WARNING
