3-POINT HITCH IMPLEMENT OPERATIONNX4510/NX5010/NX5510/NX6010
6
6
-
17
6
-
16
3-POINT HITCH IMPLEMENT OPERATIONNX4510/NX5010/NX5510/NX6010

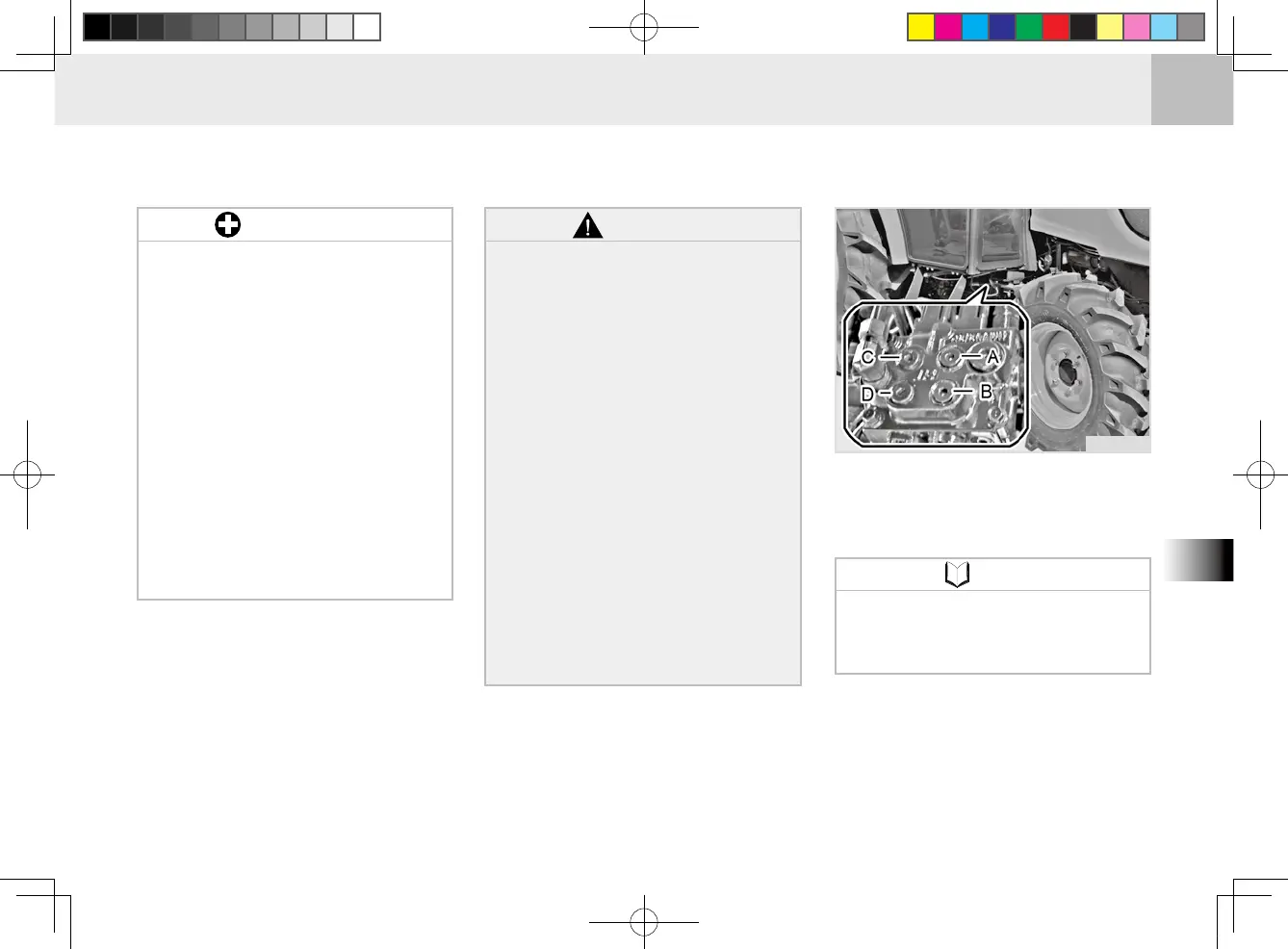

If the boom or bucket is not
operating, properly, lower the
bucket onto the ground, stop
the engine, and reduce all hy-
draulic pressure. Then, check
all the hydraulic connections
and connect them again.
Before connecting or discon
-
necting the hydraulic hose
coupling for the loader, lower
the boom onto the ground,
stop the engine, and move the
joystick lever front and back,
left and right for several times
to remove residual pressure in
the hydraulic hose.
IMPORTANT
JOYSTICK VALVE
A1 : Boom Up
A2 : Bucket Up(Roll Back)
B1 : Boom Down
B2 : Bucket Down(Dump)
TE1O608A
To avoid accidents:
Pressurized diesel fuel or hy-
draulic fluid may be sprayed
on your skin or eyes, lead-
ing to a severe injury or even
death.
To c he c k f o r l ea k s, u se a
board and wear protective
gloves and goggles.
If your eyes come into contact
with the hydraulic fluid, see
your doctor immediately.
Never try to disconnect the
tube and quick coupler while
the tractor and implement are
in operation. Release the pres-
sure by operating the lever
after the engine is stopped.
WARNING
The hoses and couplers for in-
stallation are supplied with the
loader.
NOTE
TE120(NX4510,5010,5510)CABIN,ROP17 17 2014-03-27 오후 3:22:33
