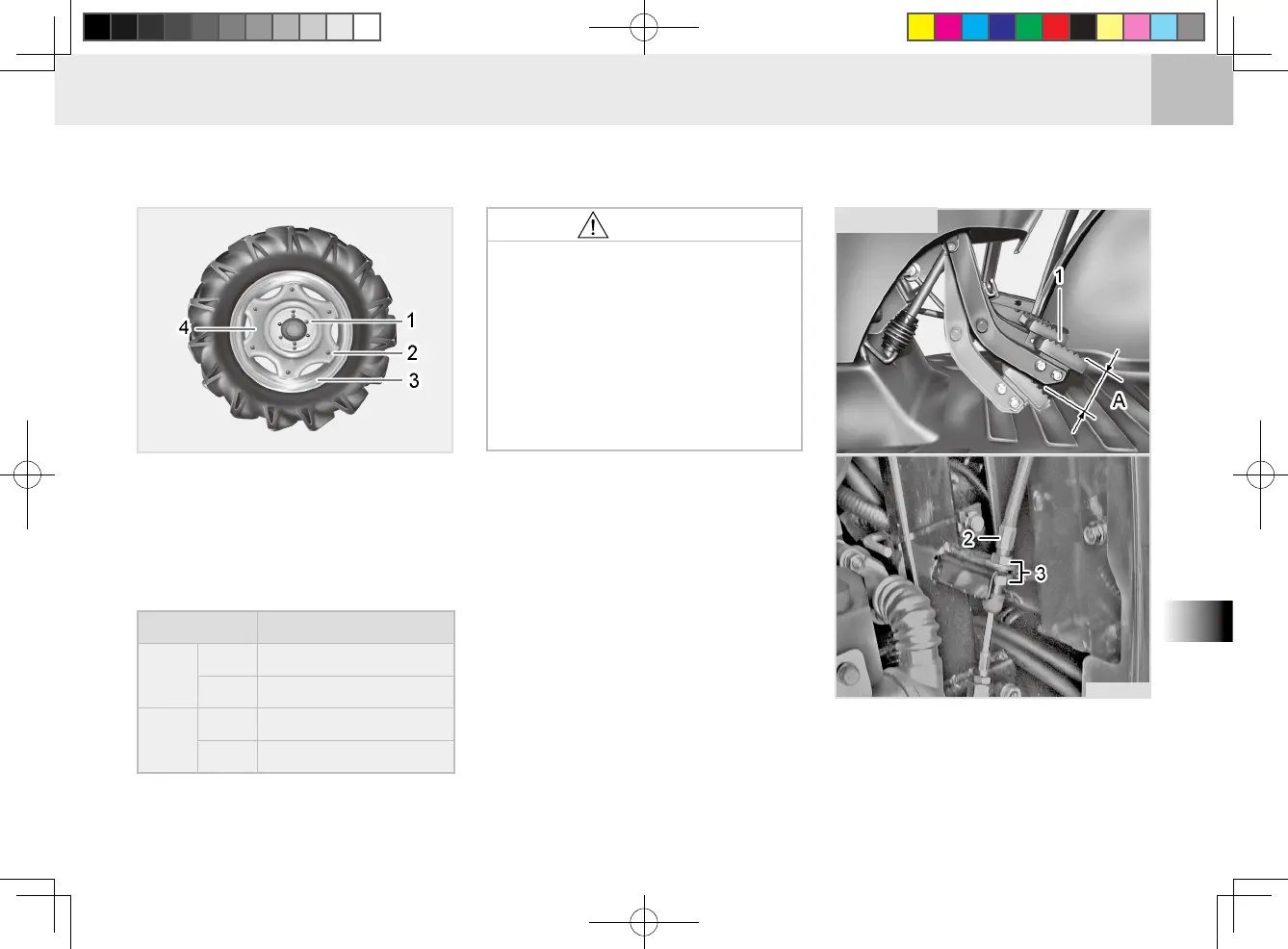

TE1O748A
1. If the clutch does not operate prop-
erly due to its excessive play, ad-
(1) Clutch Pedal (2) Clutch Rod
(A) Free Play
Check wheel bolts and nuts regu-
larly especially when new. If they are
loose, tighten them as follows.
CHECKING WHEEL BOLT/NUT TORQUE (P)
ADJUSTING CLUTCH PEDAL (Q)
(1) Wheel Bolt/Nut (2) Rim Bolt / Nut
(3) Rim (4) Disk
Item Tightening torque
Front
wheel
Bolt 57-67lbf.ft (78~90 N.m)
Nut 46-54 lbf.ft (63~73 N.m)
Rear
wheel
Bolt 166 lbf.ft (225 N.m)
Nut 166 lbf.ft (225 N.m)
[MANUAL]
H11O4D2A
To avoid personal injury:
Never operate tractor with a
loose rim, wheel, or axle.
Any time bolts and nuts are
loosened, retighten to speci-
ed torque.
Check all bolts and nuts fre
-
quently and keep them tight.
CAUTION
