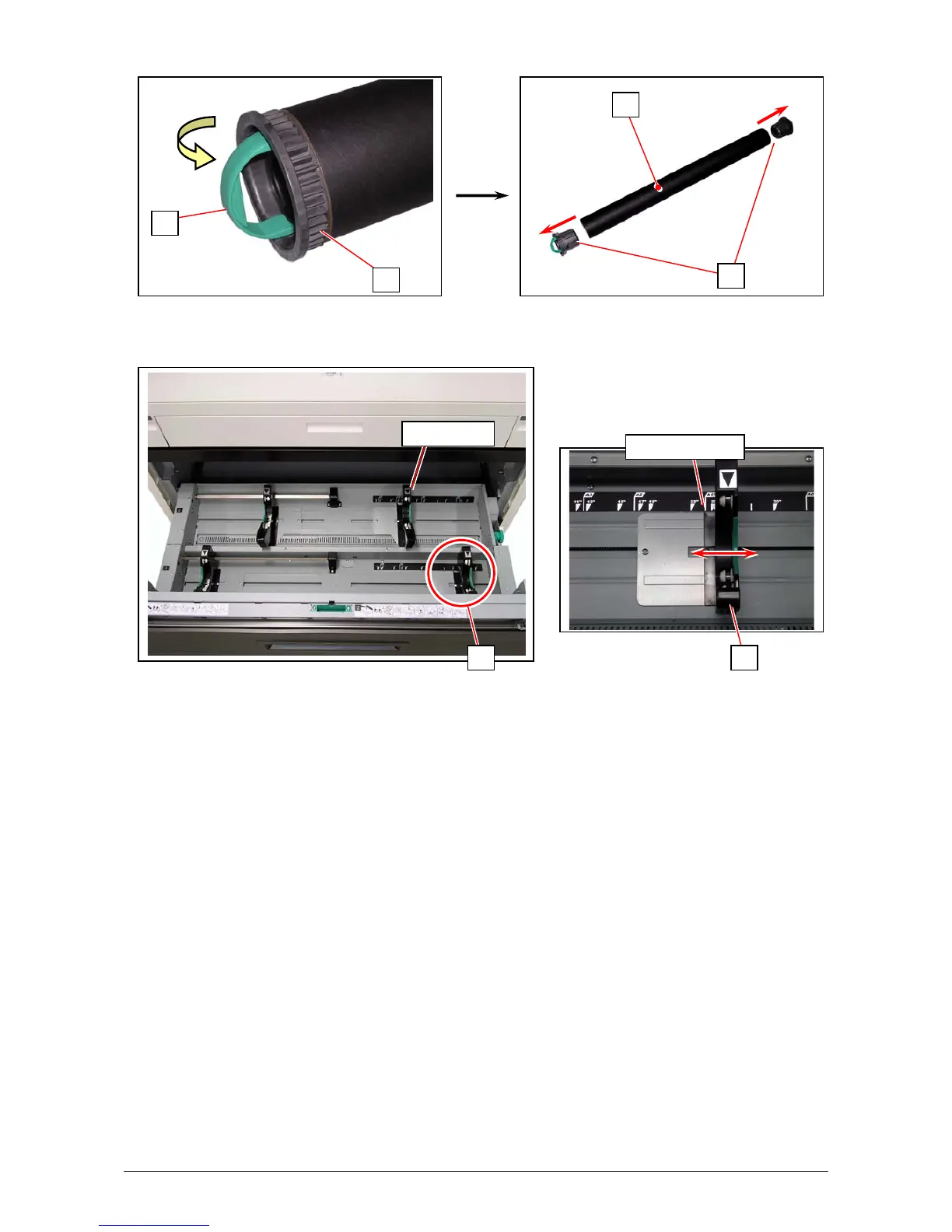

3. Raise the green lever (4) on Flange (2). Remove both Flanges (4) from the roll core (3).
4. Move a right Slide Guide (5) to match your roll media’s width.
The right and left Side Guides will automatically move together.
4
2
3
2
5 5
Size markings
5: for Roll 2
