KIP 800 - Roll Deck Section Jam

Chapter 3 Error Correction 3-3
3. 1. 1 Roll Deck Section Jam
(Deck 1, 2, 3, 4 Mis-feed )
Clear the Paper Mis-feed using the following procedure:
1. Open the Roll Deck (1) in issue. And then rewind the roll onto the media core.
2. If the leading edge of the media is torn or folded, cut it off.
1

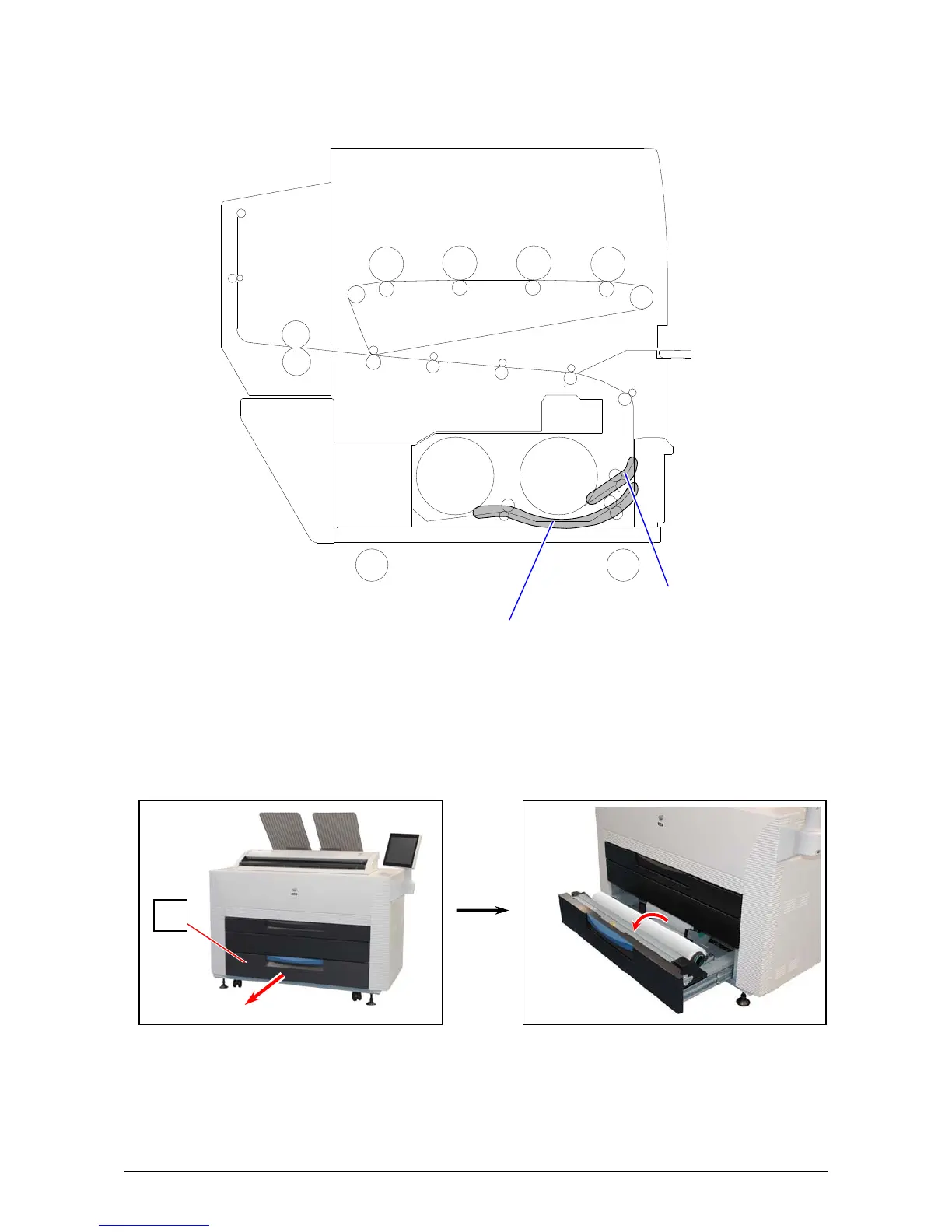

Deck 1 Mis-feed
Deck 4 Mis-feed (for KIP870)
Deck 3 Mis-feed (for KIP870)
Deck 2 Mis-feed
Roll Deck Section
Roll Deck Section
