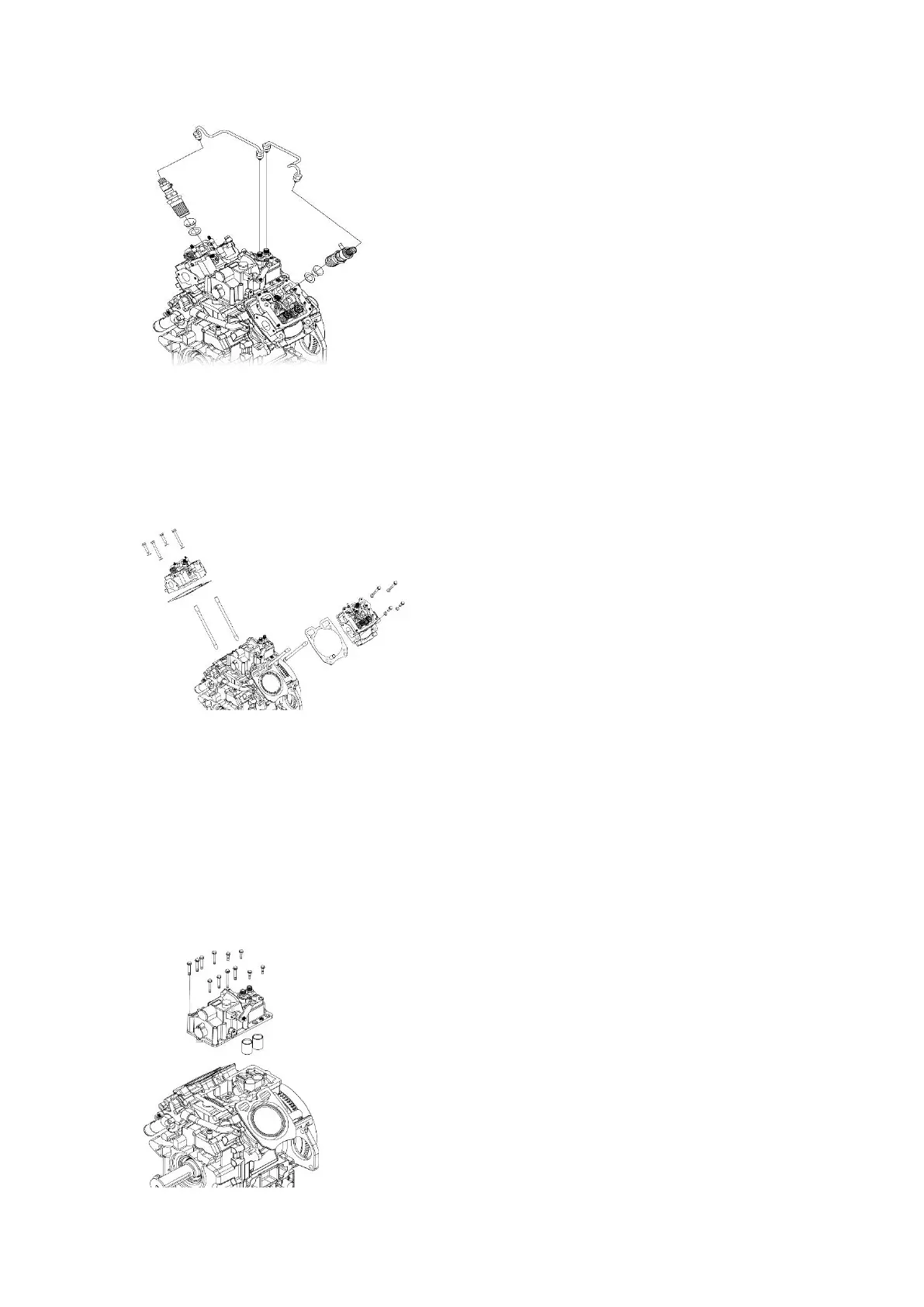

1.12 Disassemble the cylinder cover parts, valve push rod and cylinder cover gasket
(1) Loosen the four cylinder cover bolts which fix the cylinder cover parts
(2) Remove the cylinder cover parts, two valve push rods and cylinder cover gasket
(3) Disassemble the cylinder cover parts in the same way.
Refer to picture 22
picture 22
1.13 Disassemble the governor assembly, fuel injection pump assembly and fuel pump tappet.
(1) Loosen the seven M6X70 bolts, one M6X85 bolt and four M6X20 bolts which fix the governor
assembly.
(2) Remove the governor assembly and fuel injection pump assembly.
(3) Take out the two fuel pump tappet assembly.
(4) Pay attention to the adjusting gasket label in the fuel pump tappet. Make sure the reassembly
is correct.
Refer to picture 23
