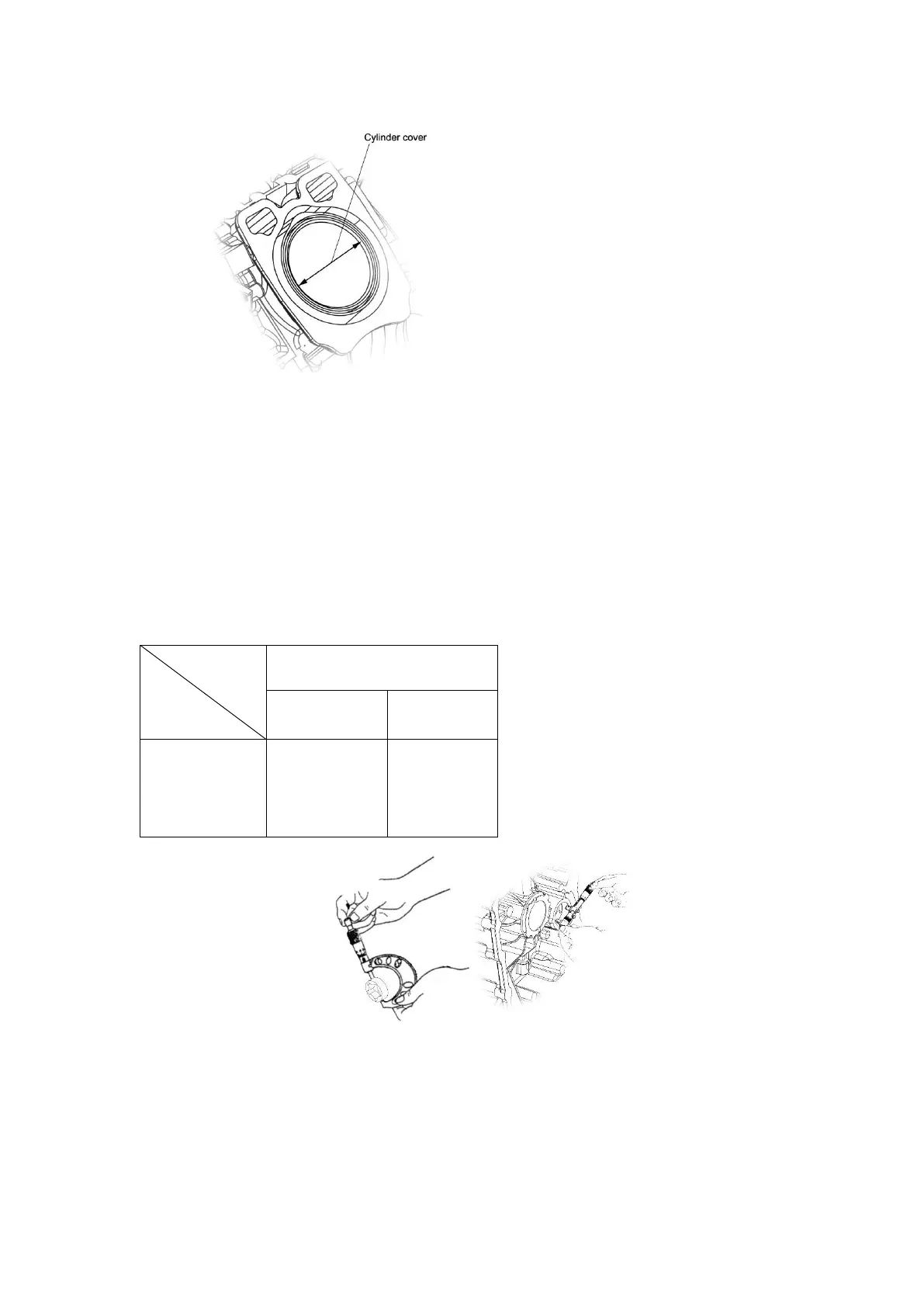

Picture 49
6. Lubricating system
6.1 Clearance between outer rotor hole and outer rotor
Measure the axial diameter of outer rotor with outside micrometer, and measure the oil pump
outer rotor hole on the crankcase cover with inner level meter, account the lube oil clearance. If
the measured value exceeds the limitation value, please change the oil pump parts. Refer to
picture 50.
Table 22 Clearance between outer rotor hole and outer rotor
Picture 50 Clearance between outer rotor hole and outer rotor
6.2 Clearance between rotor pump shaft hold and rotor pump shaft
Measure the rotor pump shaft diameter with outside micrometer and measure the rotor pump
shaft hole diameter with level meter, account the lube oil clearance. If the measured value
exceeds the limitation value, please change the oil pump rotor parts. Refer to picture 51.
