3. External installation drawings and name of parts
Please refer to picture 1, picture 2, picture 3 and picture 4 for details.

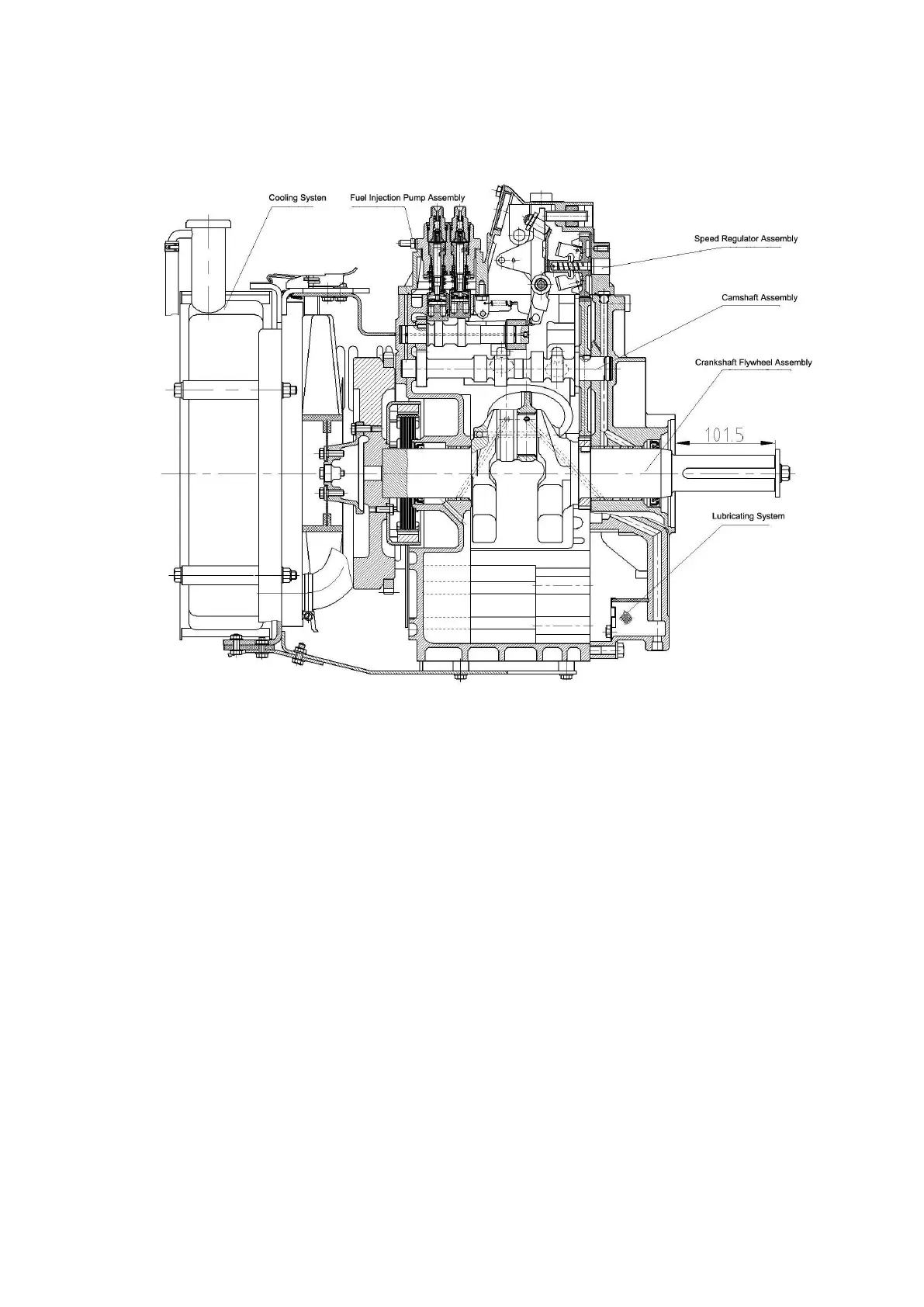

Picture1 Vertical section view for KM2V80 diesel engine
