Kirby Ultimate G Series User Manual

26
The Kirby Company
CLEANINGTHEPORTABLESPRAYER(cont)

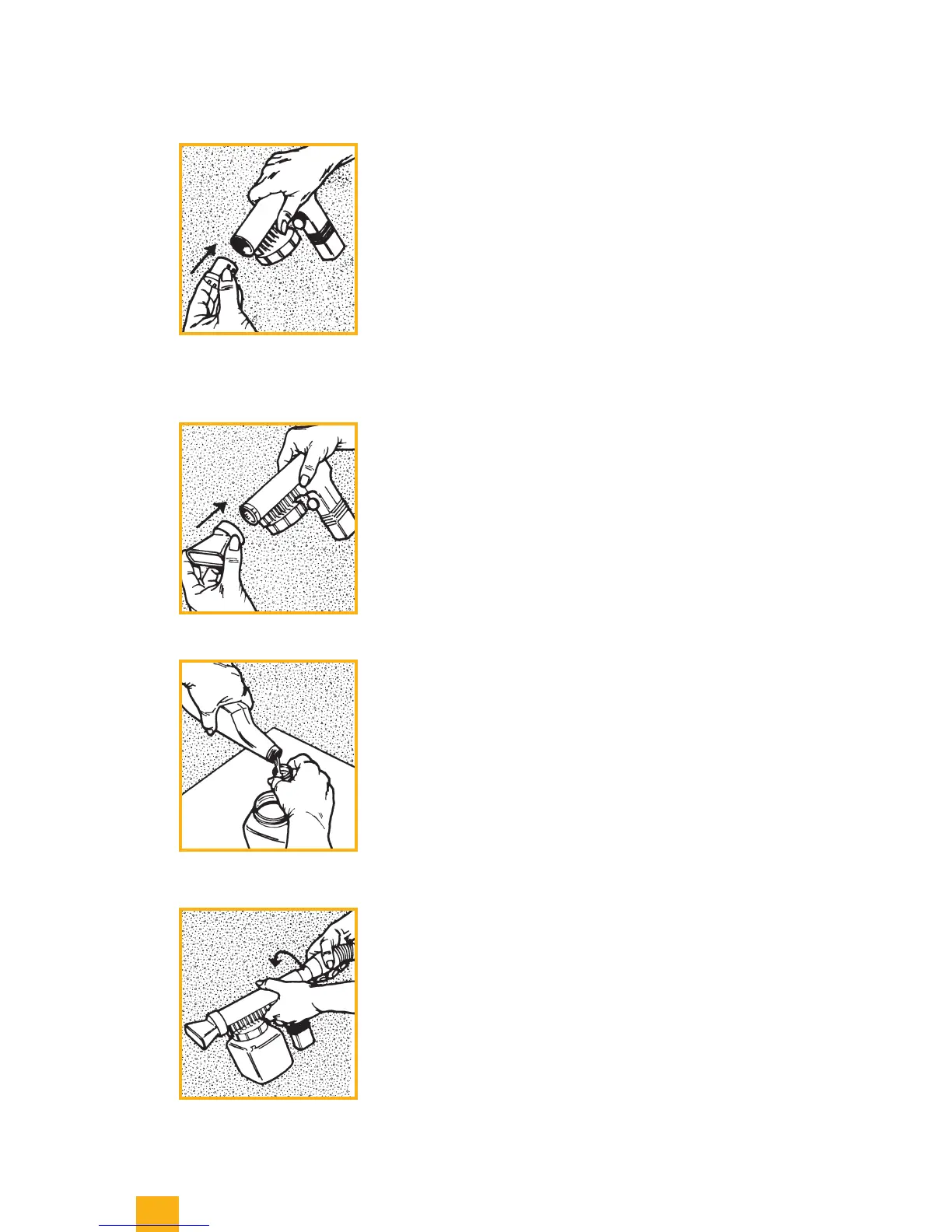

The spray opening on the front of the Sprayer also
pulls out so that the inside of the Sprayer and the noz-
zle jet can be cleaned.
To remove the nozzle jet, press on the two latches on the
front of the nozzle jet and pull it out. (The latches must be
aligned with the holes on the front of the Sprayer when
returning the nozzle jet to the front of the Sprayer.)
Then, fill the jar with water. Spray water until the spray
becomes clear. Reassemble the Sprayer after cleaning so
none of the parts will be lost. ❏
PORTABLESHAMPOOERSET-UP
ThePortableShampooerisusedintheBlowerModeonly
(see page 21 for details). It is designed for fast and easy
cleaning of carpeted stairways and areas that are difficult to
reach with the Carpet Shampoo System.
To set up the Portable Shampooer, attach the Portable
Shampooer cap to the end of the Portable Sprayer. ➤
Remove the jar from the Portable Sprayer and fill the
jarabout3/4fullwithKirby
®
Carpet Shampoo mix-
ture (Mix according to the instructions on the bottle.)
USEONLYKIRBYCARPETSHAMPOOforbestresults.
➤
Screw the jar tightly on the Portable Sprayer, then
attachtheSprayertotheAttachmentHose.
(Make certain your Ultimate GissetupasaBlower
Unit.TheAttachmentHoseshouldbeconnectedtotheAir
Exhaust Port
o
19 - see page 21.) ❏
CanisterCleaner&Attachments
CanisterCleaner&Attachments
The Portable Sprayer (continued)/The Portable Shampooer
1
3
2
3

Kirby Ultimate G Series Specifications

General

Type	Upright
Power Source	Corded Electric
Filtration	HEPA
Weight	23 lbs
Bagless	No
Attachments	Crevice tool, upholstery tool, dusting brush
Features	LED headlight
Warranty	3 years
