CHANGINGTHEPOWERNOZZLEBELT
Afterextendeduse,thePowerNozzleBeltonyourUltimate G
may become stretched and worn causing the belt to slip.(See
page11-BrushRollPerformanceIndicatorLight.)Ifthis
condition exists, simply replace the old belt with a new one.
NOTE: Use only approved Kirby
®
belts.

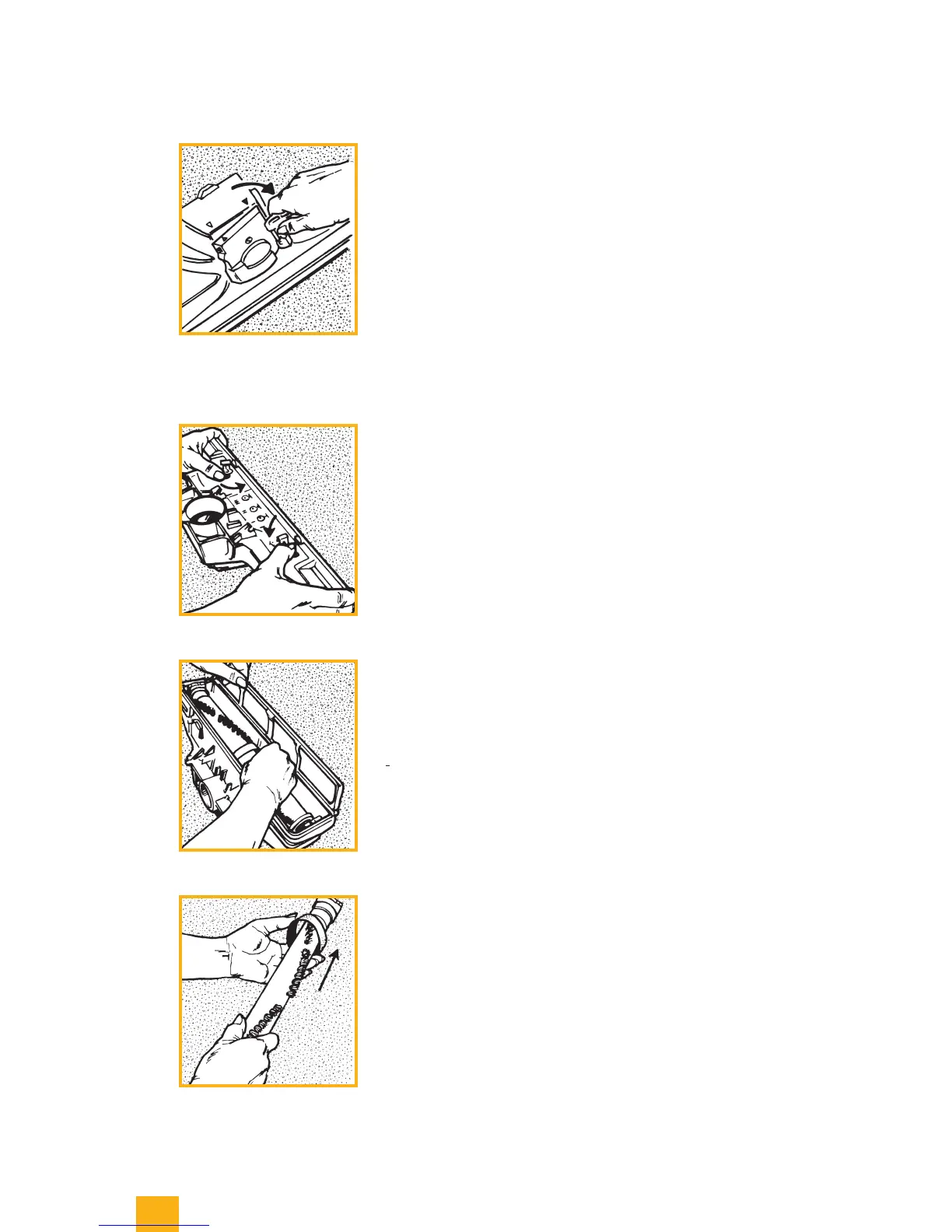

To change the belt, remove the nozzle from the
Ultimate G as on page 18. Then release the belt tension
byusingtheL-shapedhandleontheBeltLifter
o
20 to turn it
all the way to the right (clockwise) until the green arrows
line up. ➤
Unlock the Rug Plate
o
26 by unhooking the two latches
on the rear of the nozzle. ➤
Pull on the rear edge of the Rug Plate to remove from
the nozzle.
NotetheBrushRollBristleHeightAdjustmentsetting
(1, 2, or 3).
LiftouttheBeltandBrushRoll.➤
Slide off the old belt and replace with a new one. ➤
Operating/MaintenanceTips
Operating/MaintenanceTips
Changing The Power Nozzle Belt
2
1
3
4

Kirby Ultimate G Series Specifications

General

Type	Upright
Power Source	Corded Electric
Filtration	HEPA
Weight	23 lbs
Bagless	No
Attachments	Crevice tool, upholstery tool, dusting brush
Features	LED headlight
Warranty	3 years
