DM588 Service Manual

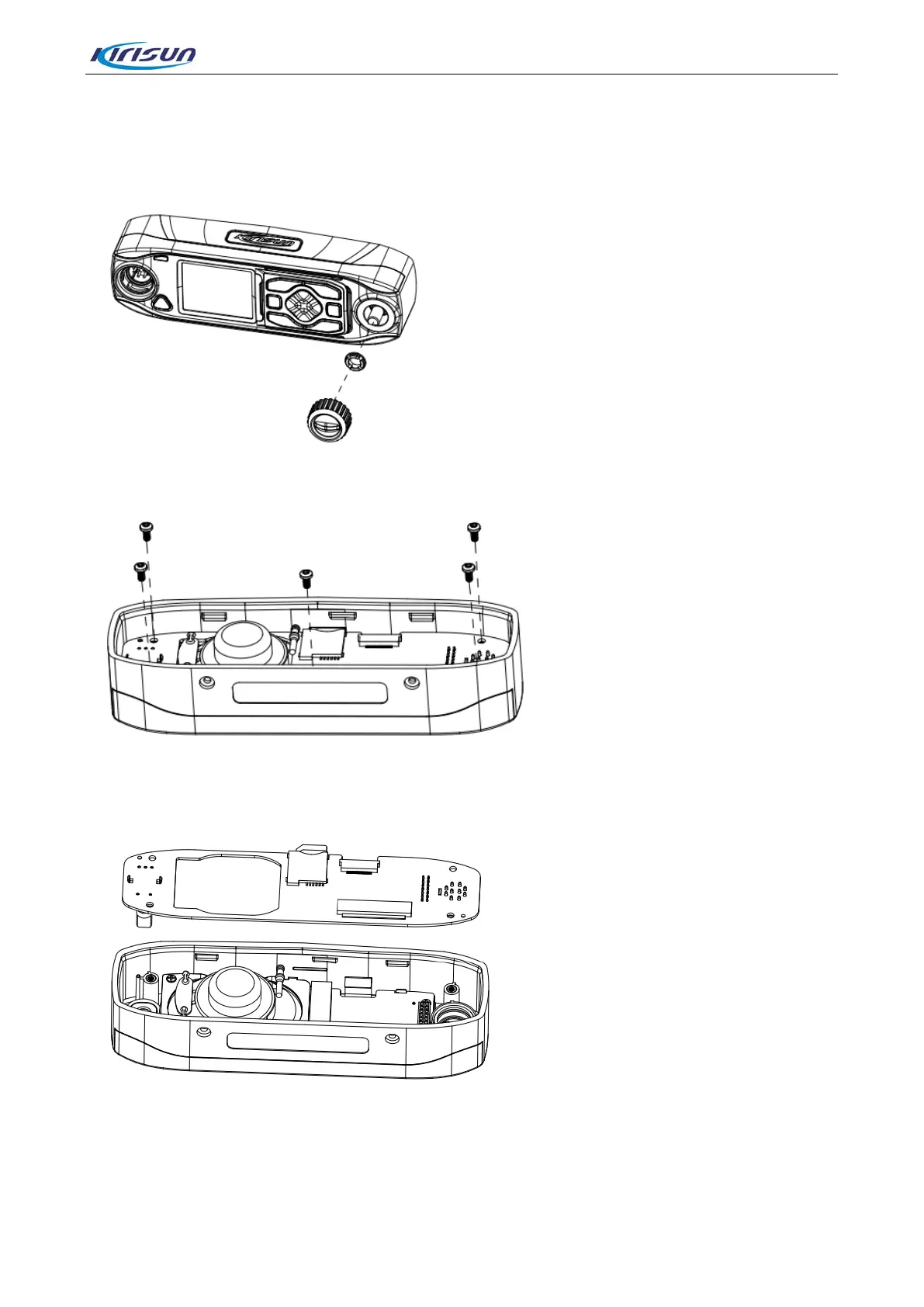

6.3.Disassembling Front Part
To disassemble the front part of the radio, take the following steps.
1. Remove the Volume/Channel knob and knob circlip, and screw down the M6*0.35 switch nut.
2. Screw down the five ST2*5 torx machine screws fastening the front and rear housings.
3. Unplug the LCD screen cable.
4. Take out the PCB from the front housing.
16
