Kirisun DM588 User Manual

DM588 Service Manual

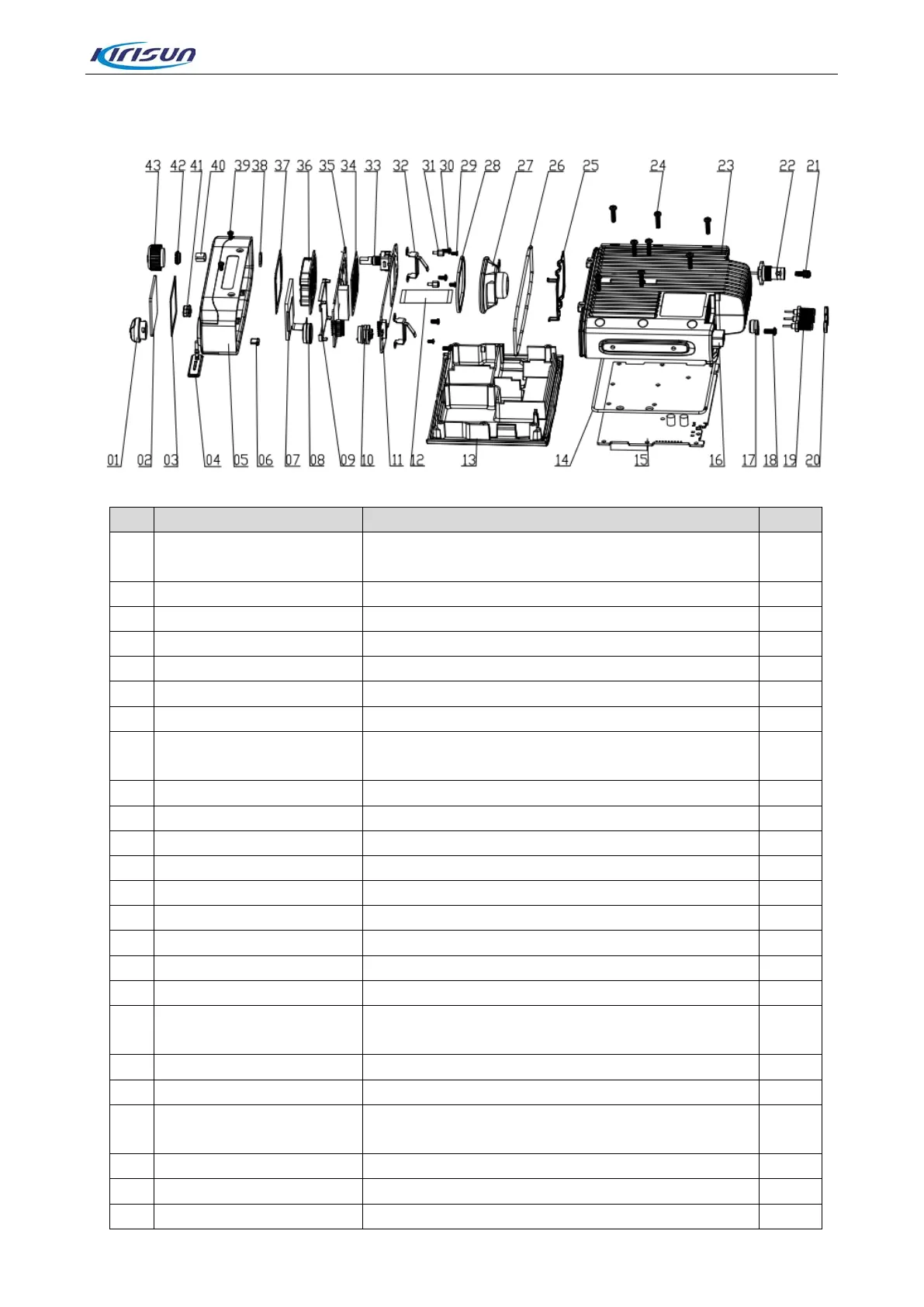

6.4.Explosion Diagram
SN
Material Code
Specifications
QTY
1 7MBP-4025-04A-W0
Hand microphone interface cover, TPU, black,
etched
1
2 7MBP-4304-08C-WC M50 glass, PMMA (raw acrylic material), transparent 1
3
7GCM-603810-01A-W
R 8000 anti-shake sponge mat
1
4
7MBR-4304-05A-W0A
Rubber plug for M50_SIM card
1
5
7MBP-4291-01B-W0
DM588 plastic front housing
1
6
7MBR-4304-03A-WC
M50 light pipe
1
7
4PC7-4099B-A
LCD screen
1
8 7MBR-4291-01A-W3
Waterproofing cover ring of DM588 hand
microphone connector
1
9
7MBS-4304-02A-W
M50_LCD screen holder
1
10
3CC3-16MB-Y10J
KME231 aerial-plug socket
1
11 6SS2-4291-HFB DM588 LCD board nesting 1
12 3WF7-05050-070D4 FPC cable 1
13 7MBL-4291-02A-LA DM588 top aluminium-alloy housing 1
14 7MBR-4291-07A-W0 DM588 waterproof conductive silicon-rubber ring 1
15 Main board PCB 1
16 3CP3-LCP200 DM850 power socket 1
17
7MBR-4291-04A-W0
DM588 waterproof cover for speaker socket
4
18 7SAF-030080M-SZYB-Z1
R M3*8 cross recessed mushroom-head combined
machine screw
1
19 3CR7-S4025-A2 DM890 GPS antenna connector 3
20 7NRC-063095021-G STM-U_GPS antenna connector nut 3
21 7SAF-030080M-SZYB-Z1
R M3*8 cross recessed mushroom-head combined
machine screw
2
22 3CR7-S1943-D PT8200 antenna connector 1
23 7MBL-4291-01A-LA DM588 bottom aluminium-alloy housing 1
24 7SMF-030160M-MHYB M3*16 torx round-head machine screw 8
17
