Kirisun PT568 User Manual

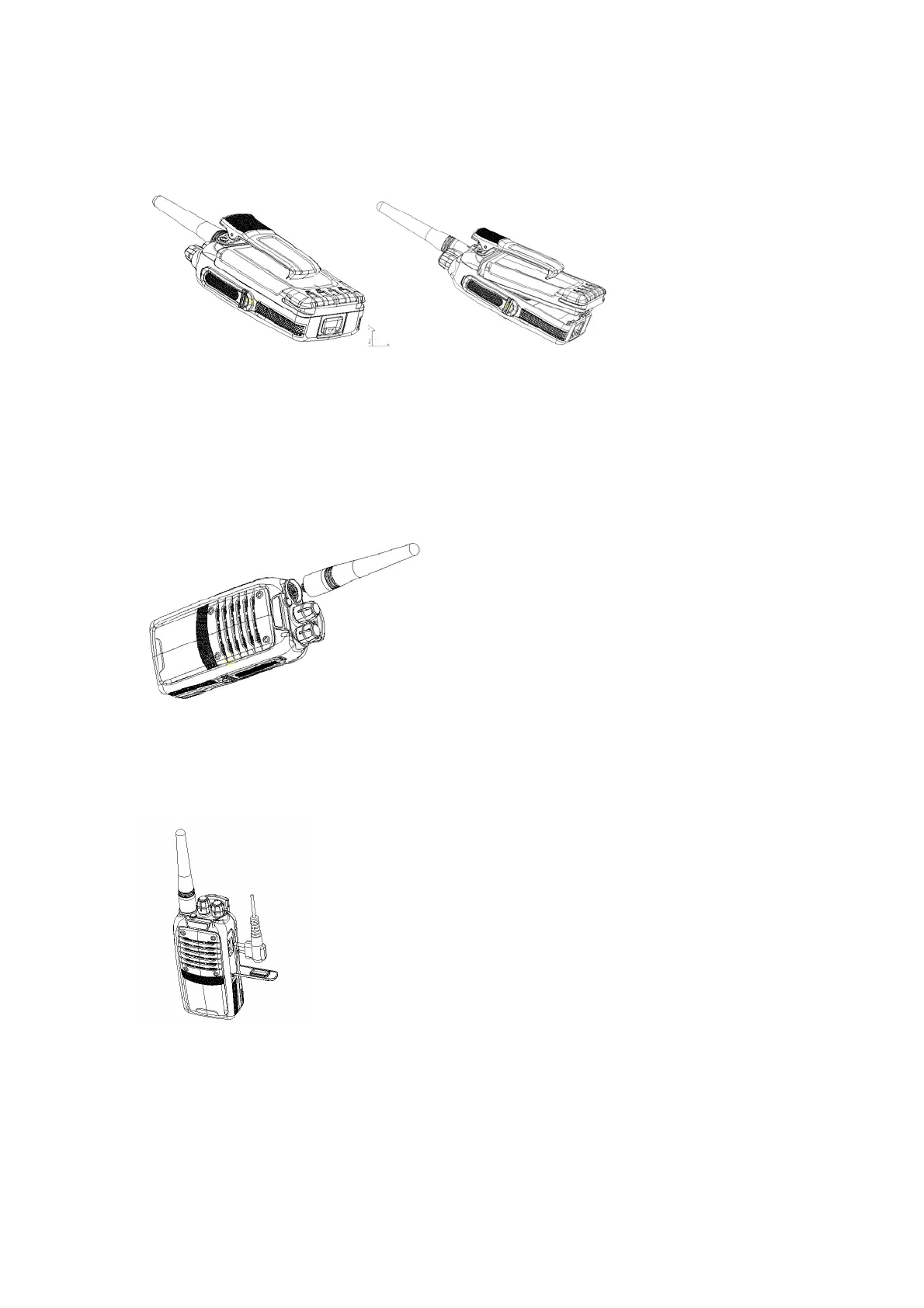

To remove the battery, please push the latch at the lower end of the radio forward, the lower
part of the battery will bounce up automatically. Then, loose the belt clip slightly and remove the
battery.
Note:
Please avoid short circuit of the battery terminals and do not throw the battery into fire.
Do not tear down the shell of the battery by yourself.
2.3 Install the antenna
Hold the base of the antenna and screw the antenna clockwise into the connector on the top of
the radio until the antenna is fastened.
2.4 Install external speaker/MIC
Open the cover of the jack for external speaker or microphone, and then insert the plug of the
external speaker or microphone into the jack on the radio.
2.5 Install the belt clip
Align the two holes on the upper part of the belt clip to the screw holes at the back shell of the
radio, and then fix the belt clip to the radio with two 2.5×8.0 screws. Loose the fixing screws to
remove the belt clip.

Kirisun PT568 Specifications

General

Brand	Kirisun
Model	PT568
Category	Transceiver
Language	English
