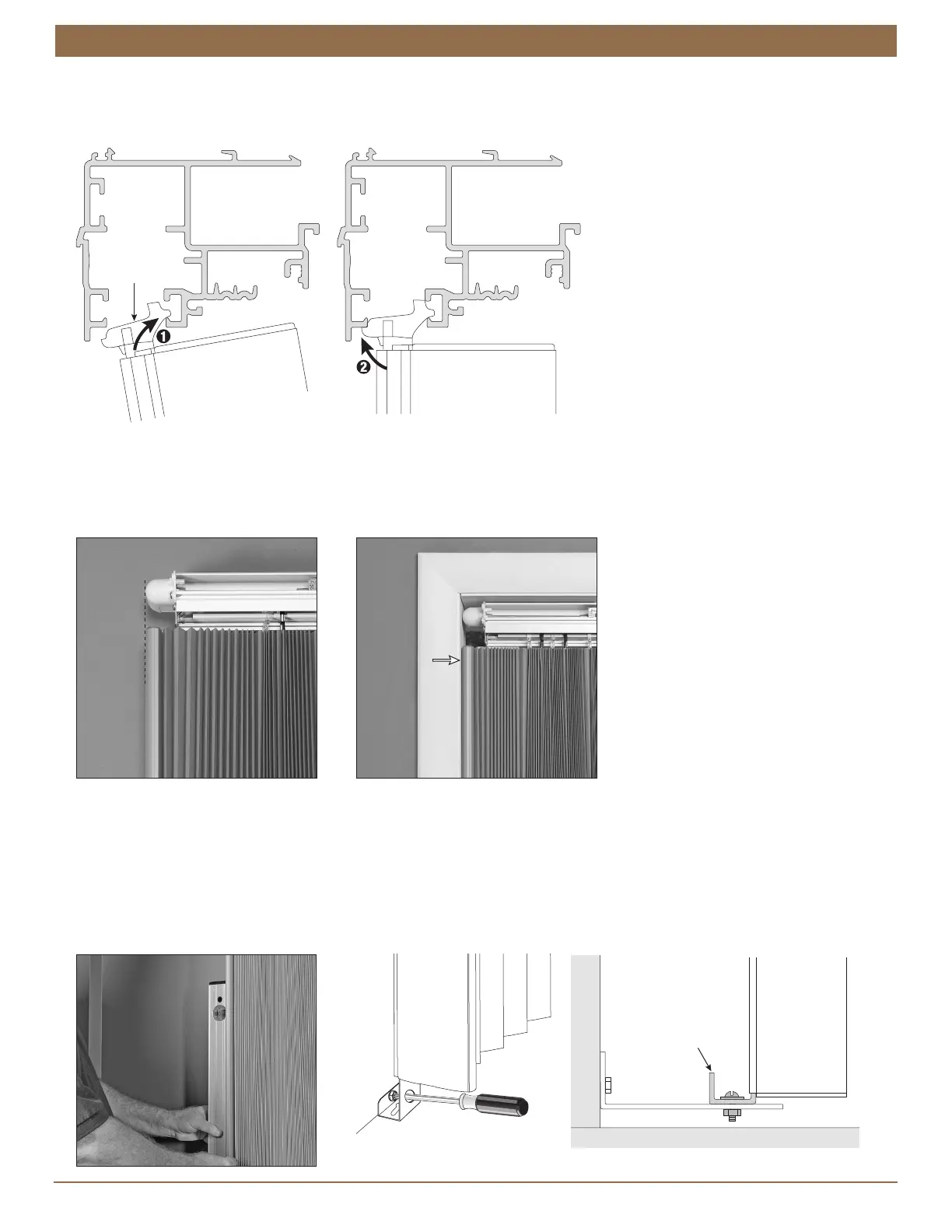

Install the stationary rail bracket.
Hook the stationary rail bracket to the headrail as illustrated below.
After hooking it to the headrail, you may allow the stationary rail to hang freely.
Position the stationary rail bracket.
To move the stationary rail bracket, pull the bottom of the rail into the room slightly before sliding the bracket.
Outside Mount: Move the stationary rail bracket so that the stationary rail is aligned with the end of the gear box.
Inside Mount: Move the stationary rail bracket so that the stationary rail is flush against the jamb.
Outside Mount: Attach the stationary rail bottom bracket. The bracket may be attached to the wall or floor. In most cases, to
avoid drilling into the floor it is attached to the wall.
Level the stationary rail front to back and side to side.
Attach the stationary rail bottom bracket using the screw provided.
If you used spacer blocks or extension brackets with the installation brackets, use an extension bracket to mount the
stationary rail away from the wall.
CAUTION: Use drywall anchors when mounting into drywall.
Stationary
Rail
Stationary
Rail Bracket
Align
Outside Mount
Inside Mount
Flush
Against
Jamb
Level the
Stationary
Rail
Wall
Stationary Rail
Stationary
Rail
Stationary Rail
Bottom Bracket
Stationary
Rail
Extension
Bracket
Wall
