INSTALLATION
INSTALLATION
Set Cord Tension
Unwrap the cord from the orange cord organizer.
Remove any twists by running a finger between the two cords.
Note that both ends of the cords are tied to washers to prevent the cords from slipping into the vertical rail.

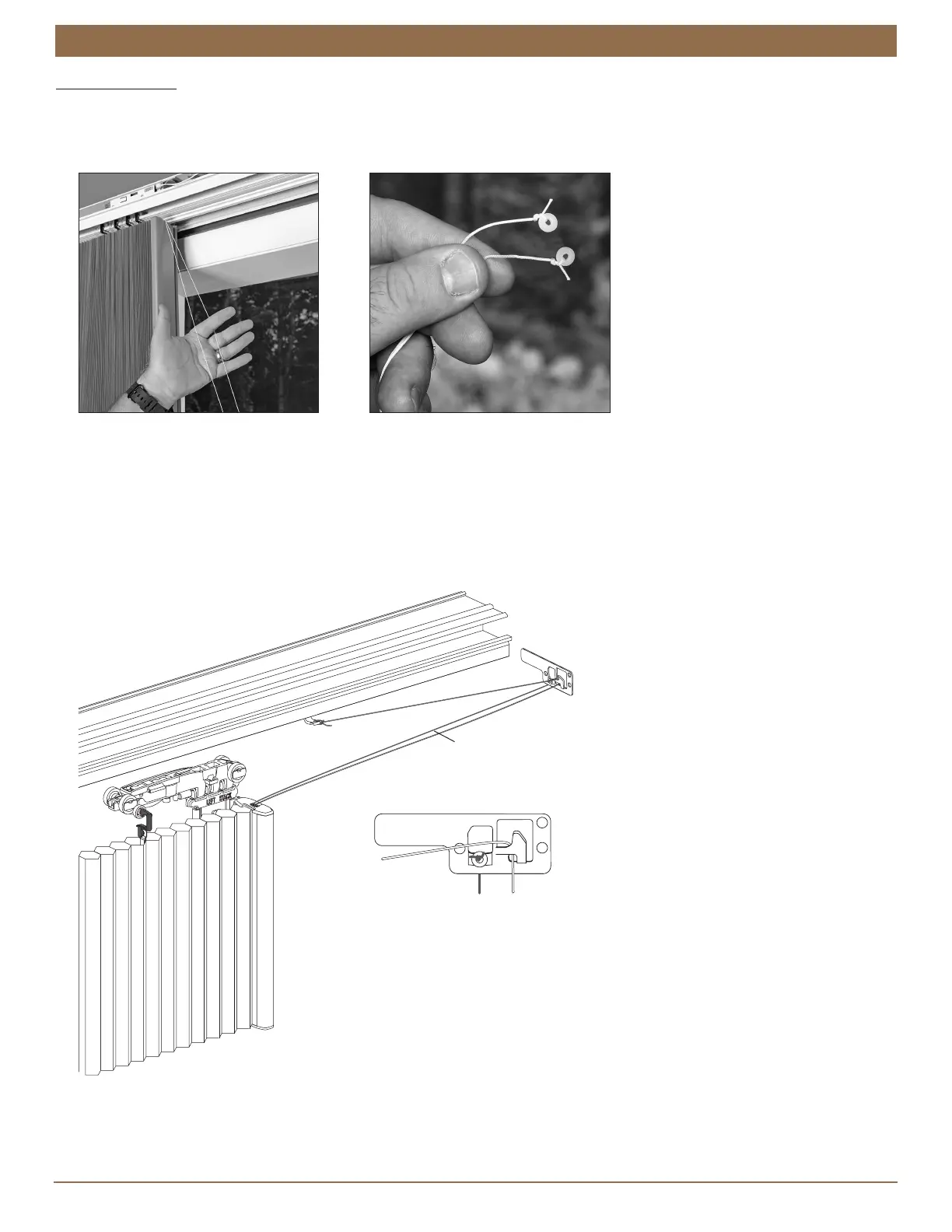

Study the cording diagram below. The cords are connected to the end plate that is opposite the fabric stack. (In the illustration,
the two cords are shaded differently to make the routing easier to follow.)
One of the washers is anchored to the end plate in the middle slot. The cord is routed under the end plate and into the slot
so that the washer is on the inside of the end plate, as shown.
The washer on the other cord is trimmed off and the end is tied to the cord tensioner. Then that cord is looped around the
“T” near the front of the end plate.
IMPORTANT: The top of the looped cord must be the portion of the cord coming from the cord tensioner.
Cord
Tensioner
Moving
Rail
End
Pla
End Plate
FrontRear
Cord with
Washer
Cord with
Washer
To Cord
Tensioner
To Next Page
