2-3

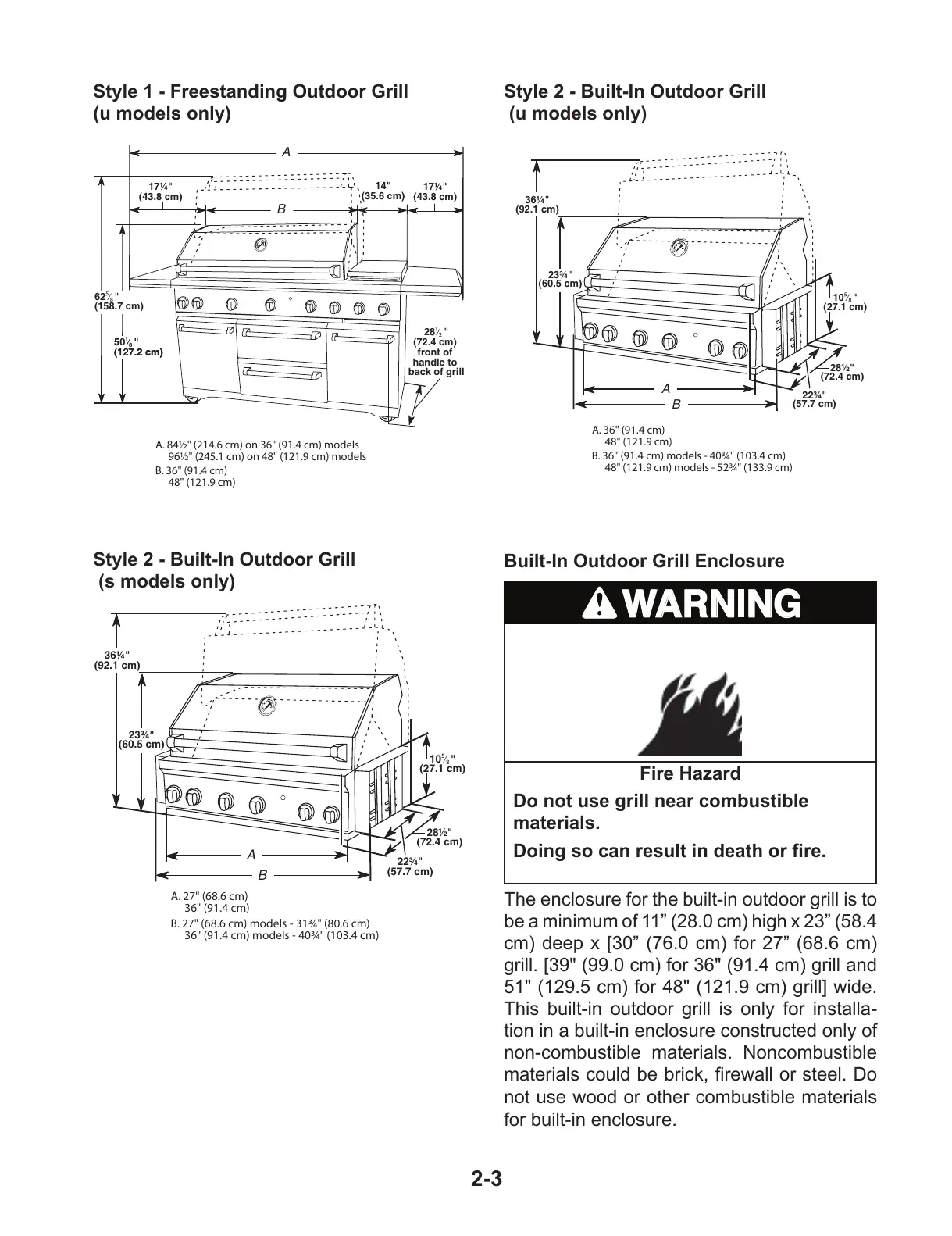

Style 2 - Built-In Outdoor Grill
(s models only)
A. 27" (68.6 cm)
36" (91.4 cm)
B. 27" (68.6 cm) models - 31¾" (80.6 cm)
36" (91.4 cm) models - 40¾" (103.4 cm)
23¾"
(60.5 cm)
36¼"
(92.1 cm)
28½"
(72.4 cm)
22¾"
(57.7 cm)
10"
(27.1 cm)
A
B
Style 1 - Freestanding Outdoor Grill
(u models only)
A. 84½" (214.6 cm) on 36" (91.4 cm) models
96½" (245.1 cm) on 48" (121.9 cm) models
B. 36" (91.4 cm)
48" (121.9 cm)
50 "
(127.2 cm)
28 "
(72.4 cm)
front of
handle to
back of grill
A
B
50 "
(127.2 cm)
62"
(158.7 cm)
17¼"
(43.8 cm)
14"
(35.6 cm)
17¼"
(43.8 cm)
Style 2 - Built-In Outdoor Grill
(u models only)
A. 36" (91.4 cm)
48" (121.9 cm)
B. 36" (91.4 cm) models - 40¾" (103.4 cm)
48" (121.9 cm) models - 52¾" (133.9 cm)
23¾"
(60.5 cm)
36¼"
(92.1 cm)
28½"
(72.4 cm)
22¾"
(57.7 cm)
10"
(27.1 cm)
A
B
Built-In Outdoor Grill Enclosure
Fire Hazard
Do not use grill near combustible
materials.
Doing so can result in death or re.
WARNING
The enclosure for the built-in outdoor grill is to
be a minimum of 11” (28.0 cm) high x 23” (58.4
cm) deep x [30” (76.0 cm) for 27” (68.6 cm)
grill. [39" (99.0 cm) for 36" (91.4 cm) grill and
51" (129.5 cm) for 48" (121.9 cm) grill] wide.
This built-in outdoor grill is only for installa-
tion in a built-in enclosure constructed only of
non-combustible materials. Noncombustible
materials could be brick, rewall or steel. Do
not use wood or other combustible materials
for built-in enclosure.
