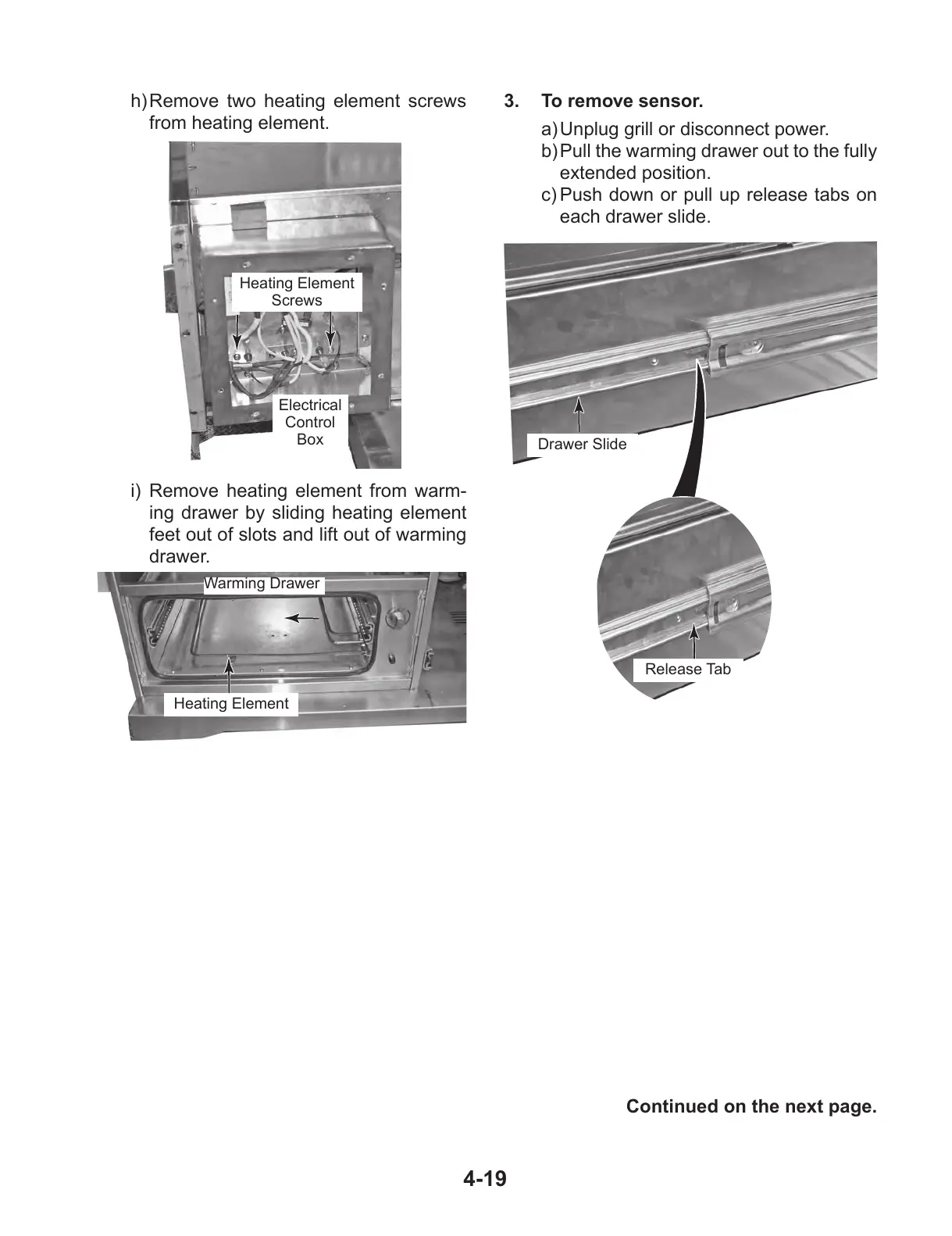

4-19
h) Remove two heating element screws
from heating element.
Heating Element
Screws
Electrical
Control
Box
i) Remove heating element from warm-
ing drawer by sliding heating element
feet out of slots and lift out of warming
drawer.
Heating Element
Warming Drawer
3. To remove sensor.
a) Unplug grill or disconnect power.
b) Pull the warming drawer out to the fully
extended position.
c) Push down or pull up release tabs on
each drawer slide.
Drawer Slide
Release Tab
Continued on the next page.
