4-20

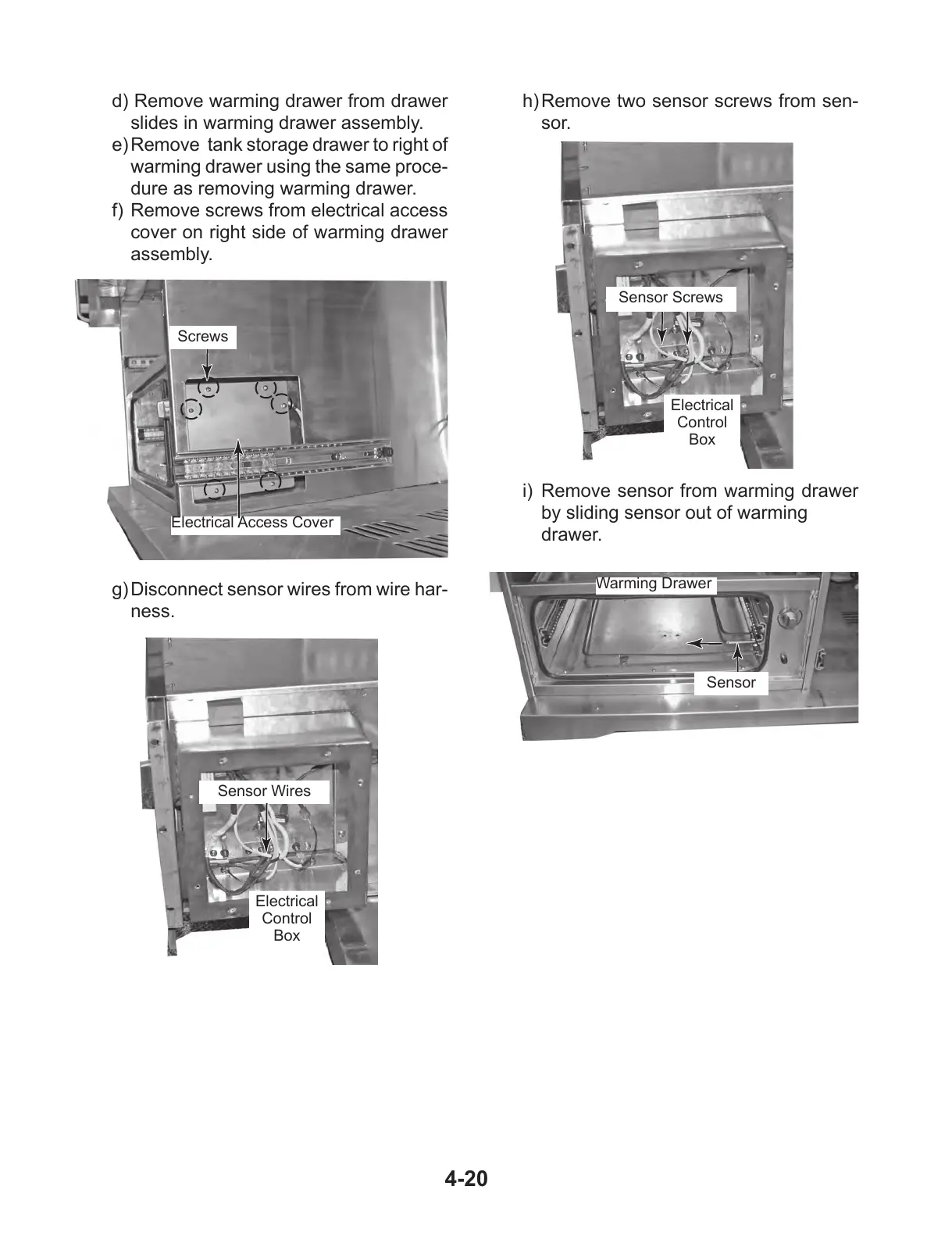

d) Remove warming drawer from drawer
slides in warming drawer assembly.
e) Remove tank storage drawer to right of
warming drawer using the same proce-
dure as removing warming drawer.
f) Remove screws from electrical access
cover on right side of warming drawer
assembly.
Screws
Electrical Access Cover
g) Disconnect sensor wires from wire har-
ness.
Sensor Wires
Electrical
Control
Box
h) Remove two sensor screws from sen-
sor.
Electrical
Control
Box
i) Remove sensor from warming drawer
by sliding sensor out of warming
drawer.
Warming Drawer
Sensor Screws
Sensor
To Next Page
