(2) Wiring of power supply cable
①Remove the switch box cover and switch box packing.
②Install firmly the cable holder to the switch box with screw.
③Connect firmly red, black and blue lead wires of the cable to the terminal plate-16p referring to Fig.5-13.
(Be sure to make each number of mark band of the lead wire consistently correspond to each number of the
terminal plate)
④The green and yellow stripped lead wire is the ground wire. Connect the wire to the ground mark of the
plate firmly.
⑤After checking if there is no mistake in wiring work, install the switch box packing and the cover of switch
box.
Note : Refer to the wiring diagram attached on the inside of controller cover of the hoist and or the switch
box cover of the motorized trolley if necessary.
− 24 −

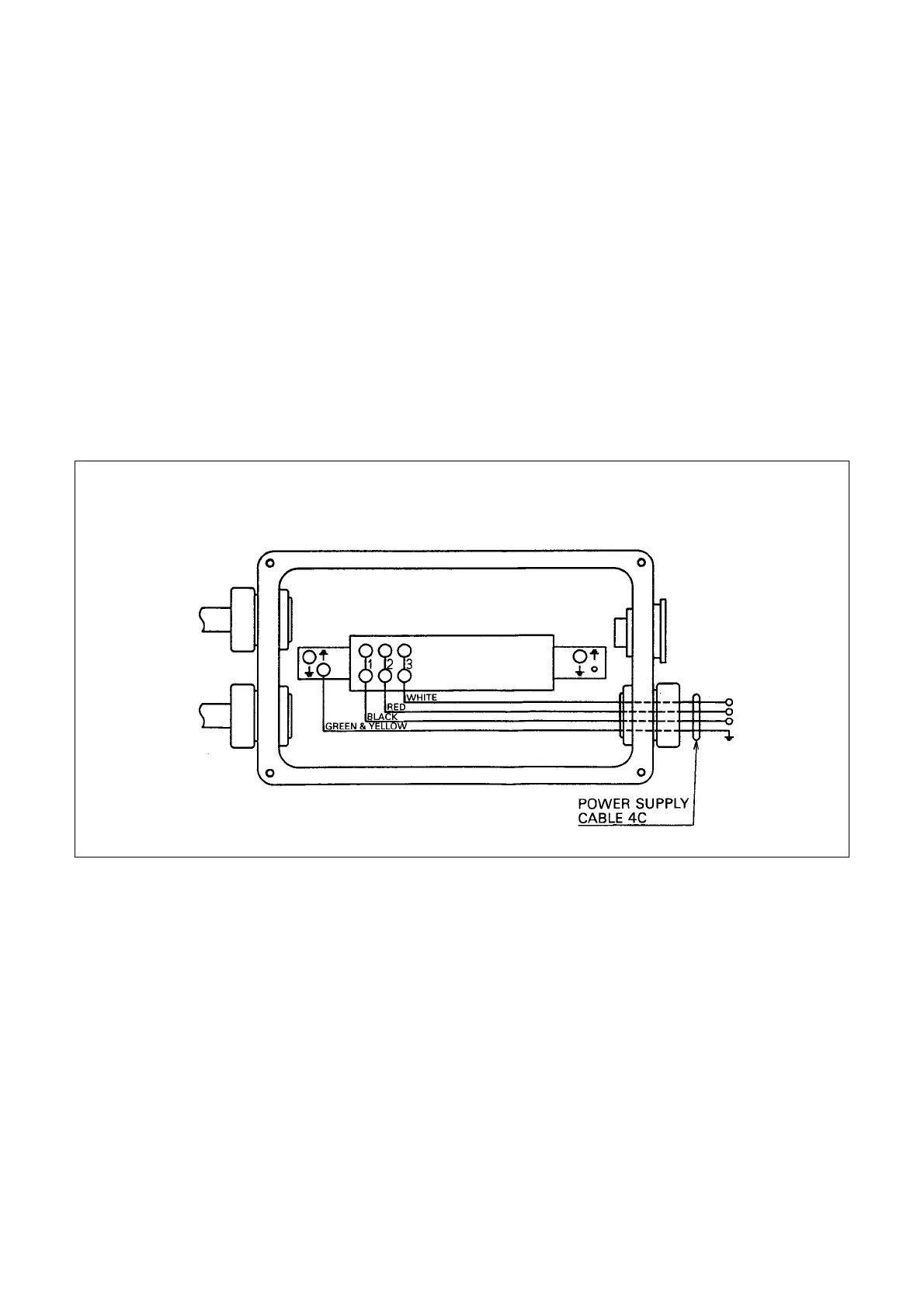

Fig.5-13 Wiring of power supply cable
(motorized trolley type electric chain hoist)
